Data factory - Integration runtime status alert

Question

Am having multiple self hosted Integration Runtimes in my data factory. I need an alert rule via Mail, once the status changes from Running to Limited or anything else than Running:



Unfortunately, i can't any matching metric for my case - any ideas how to solve this?

Example:
In this case I'd like to get a mail every hour, since one integration runtime is not Running:

Answer 1

Data factory Alert rules does not provide any specific alert rule to check the status of Integration runtime.

To achieve your goal, you need to create a logic app to send mail when Integration runtime in not running with the help of Rest API.

• Create a Logic app and create a workflow in it and go to designer mode.

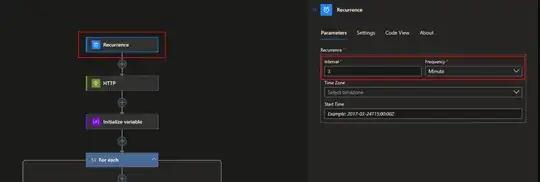

• Take a recurrence as trigger and set interval and frequency of 3 Minutes.

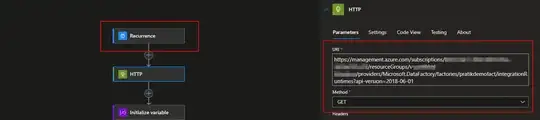

• Then take an HTTP request to get list of Integration runtimes in Data factory by Rest API
• Then take for each loop to iterate on the output of previous HTTP response with value body('HTTP').value
• Under for each loop take another HTTP request to get status of Integration runtime by Rest API. use below dynamic expression in URL.

concat('https://management.azure.com/subscriptions/<SubscriptionId>/resourceGroups/<resource-group-name>/providers/Microsoft.DataFactory/factories/<DF-name>/integrationRuntimes/',item().name,'/getStatus?api-version=2018-06-01')

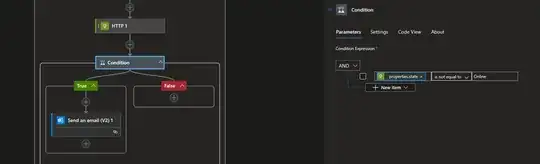

• Then take an if condition to send mail if state is other than online body('HTTP_1').properties.state

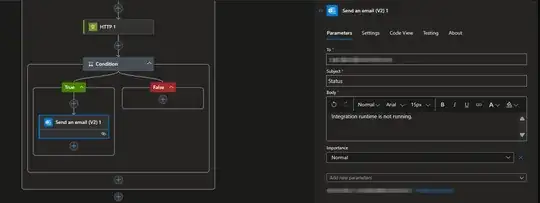

• In true take a Send an email (V2) 1 to send email sing in with you email and appropriate values as below.

Output:

Note: I checked for whether state is equal to online.

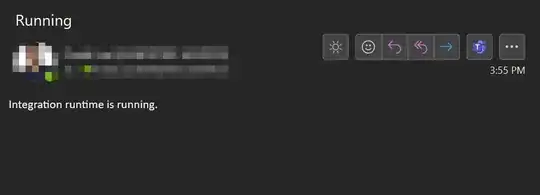

Got an email
