Create Purview scan with Python SDK with a specified scope/folderpath for an AdlsGen2 resource

Question

I am trying to automatically deploy my Purview solution using the Python SDK using this Microsoft documentation and the documentation of the Azure SDK itself.

I want to create a scan of an AdlsGen2 resource, but instead of scanning the entire resource, I only want to scan a specified folder path. I know this is possible in the Purview Studio UI, but I want to fix this programmatically.

I am now using a body in this form:

body = {
 "kind":"AdlsGen2Msi",
 "properties": {
 "scanRulesetName": "AdlsGen2",
 "scanRulesetType": "System",
 "collection":
  {
  "referenceName": collection_name,
  "type": "CollectionReference"
  }
 }
}

This works in creating a scan on the whole AdlsGen2. I can't find an option for "scope" or "path" or something like that.

Or is this possible in some other way? I saw a possibility to specify a folder path using resource sets, but I don't feel that is what I want. I am still learning about Purview, so I don't have all options figured out yet.

Thanks!

score 0 · Answer 1 · answered Jul 12 '23 at 08:54

Create Purview scan with Python SDK with a specified scope/folderpath for an AdlsGen2 resource.

You can use the below python sdk code to scan with a specified scope/folderpath for an AdlsGen2 resource in Microsoft Purview.

Code:

import uuid
from azure.purview.scanning import PurviewScanningClient
from azure.purview.administration.account import PurviewAccountClient
from azure.identity import DefaultAzureCredential
from azure.core.exceptions import HttpResponseError

ds_name = "<name of your registered data source>"
scan_name = "<name of the scan you want to define>" reference_name_purview = "<name of your Microsoft Purview account>"
collection_name = "<name of the collection where you will be creating the scan>"

def get_credentials():
    credentials = DefaultAzureCredential()
    return credentials

def get_purview_client():
    credentials = get_credentials()
    client = PurviewScanningClient(endpoint=f"https://{reference_name_purview}.scan.purview.azure.com", credential=credentials, logging_enable=True)
    return client

def get_admin_client():
    credentials = get_credentials()
    client = PurviewAccountClient(endpoint=f"https://{reference_name_purview}.purview.azure.com/", credential=credentials, logging_enable=True)
    return client

try:
    admin_client = get_admin_client()
except ValueError as e:
        print(e)

collection_list = admin_client.collections.list_collections()
for collection in collection_list:
if collection["friendlyName"].lower() == collection_name.lower():
collection_name = collection["name"]

body_input = body = {
    "kind": "AdlsGen2Msi",
    "properties": {
        "scanRulesetName": "AdlsGen2",
        "scanRulesetType": "System",
        "collection": {
            "referenceName": collection_name,
            "type": "CollectionReference"
        },
        "resourceSet": {
            "kind": "AdlsGen2ResourceSet",
            "properties": {
                "fileSystem": "filesystem1",
                "directory": "directory1/day.csv"
            }
        }
    }
}

try:
    client = get_purview_client()
    response = client.scans.create_or_update(data_source_name=ds_name, scan_name=scan_name, body=body_input)
    print(response)
    print(f"Scan {scan_name} successfully created or updated")
except HttpResponseError as e:
    print(e)

run_id = uuid.uuid4() #unique id of the new scan

try:
    response = client.scan_result.run_scan(data_source_name=ds_name, scan_name=scan_name, run_id=run_id)
    print(response)
    print(f"Scan {scan_name} successfully started")
except HttpResponseError as e:
    print(e)

Output:

{'properties': {'scanRulesetName': 'AdlsGen2', 'scanRulesetType': 'System', 'collection': {'lastModifiedAt': '2023-07-12T07:19:49.5851Z', 'referenceName': 'xxxx', 'type': 'CollectionReference'}, 'createdAt': '2023-07-12T07:19:49.5851Z', 'lastModifiedAt': '2023-07-12T07:19:49.5851Z'}, 'kind': 'AdlsGen2Msi', 'creationType': 'Manual', 'id': 'datasources/demodatalake567/scans/scan326', 'name': 'scan326'}
Scan scan326 successfully created or updated
{'scanResultId': 'xxxx', 'startTime': '2023-07-12T07:19:55.1233949Z', 'endTime': None, 'status': 'Accepted', 'error': None}
Scan scan326 successfully started

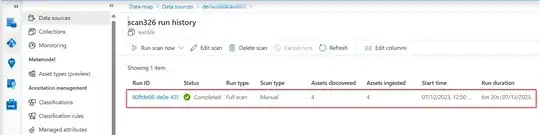

enter image description here

Portal: enter image description here

Reference:

Tutorial: How to use Microsoft Purview Python SDK - Microsoft Purview | Microsoft Learn

Hi, thanks for your response! I tried this, but I keep getting a scan on the whole data source, instead of just the folder. Should there be a resource set created somewhere in purview that I should be able to find? Thanks! — hello123, Jul 18 '23 at 14:31
