-Incident After setting up VM Insight to be enabled, I get the page to enable it and cannot see the logs.so I can not confirm Insight & logs after wating more than 10 minuites By enablingI have confirmed that the data collection rules for VMSS have been created. In addition, I have confirmed that AMA and DAL are installed as Extensions.

-My reference to set up https://learn.microsoft.com/en-us/azure/azure-monitor/vm/vminsights-overview?toc=https%3A%2F%2Flearn.microsoft.com%2Fja-jp%2Fazure%2Fvirtual-machine-scale-sets%2Ftoc.json&bc=https%3A%2F%2Flearn.microsoft.com%2Fja-jp%2Fazure%2Fbread%2Ftoc.json https://learn.microsoft.com/en-us/azure/azure-monitor/vm/vminsights-enable-portal

enabling Insights with AMA enter image description here enter image description here

I confirmed that deployment succeeded enter image description here I also confirmed that Data collection rule was configured enter image description here

but, Insight page of VMSS is still not enabled. enter image description here

YuichiMasuda
  • 3
  • 1

1 Answers1

0

I have followed the steps below to resolve the issue:

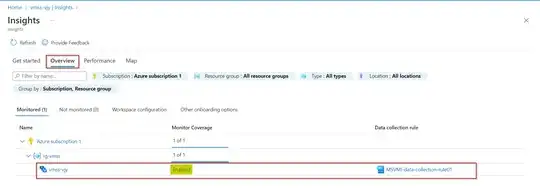

Click on Azure Monitor, go to the overview, and check if Azure Monitor for VMSS is enabled.

enter image description here

enter image description here

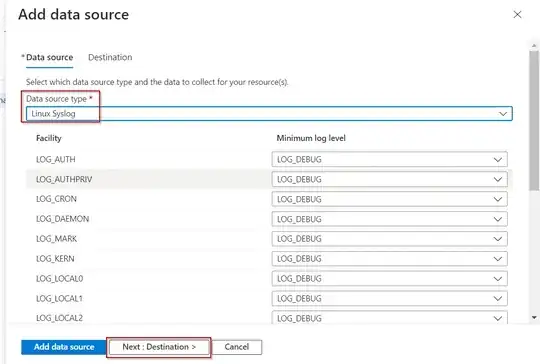

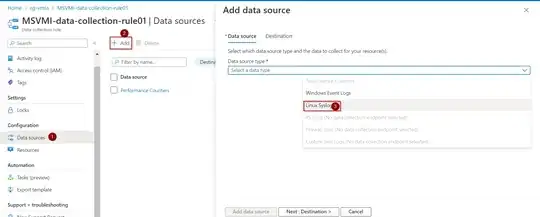

Navigate to the data source resource and go to the configuration section. Under data sources, add the Linux Syslog and Performance counters as shown in the screenshots below:

enter image description here

enter image description here

enter image description here

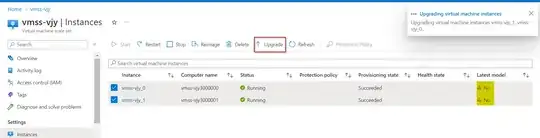

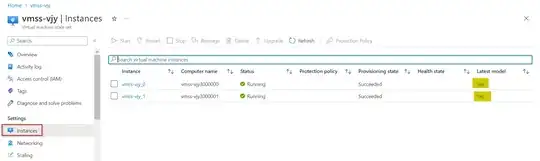

Next, upgrade the VMSS image and ensure that the latest image is being used. Refer to the screenshots provided:

enter image description here

enter image description here

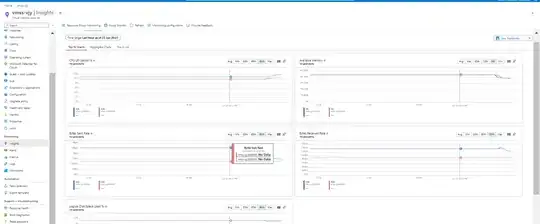

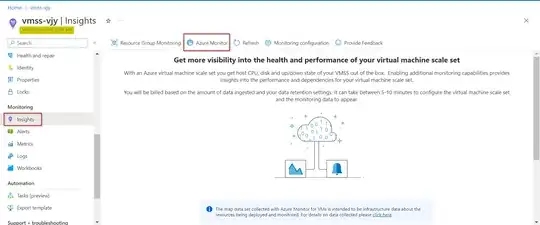

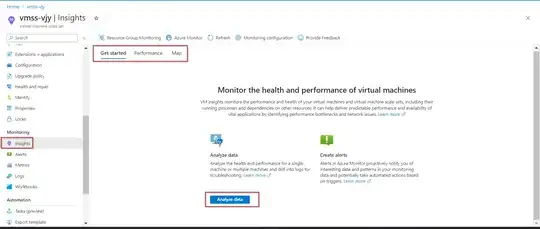

Next, navigate to the insights page under the monitoring session in VMSS and check the status. Refer to the screenshots below:

enter image description here

enter image description here

HowAreYou
  • 605
  • 2
  • 6
  • Thank you very much for your thoughtful response! I could solve my problem not to enabling Insight. I can also confirm log using query. (Actually, the fact that I can't see the logs is what prompted this inquiry.) – YuichiMasuda Jun 23 '23 at 02:19
