Azure Logic App Giving Incorrect O365 Graph Auth Token

Question

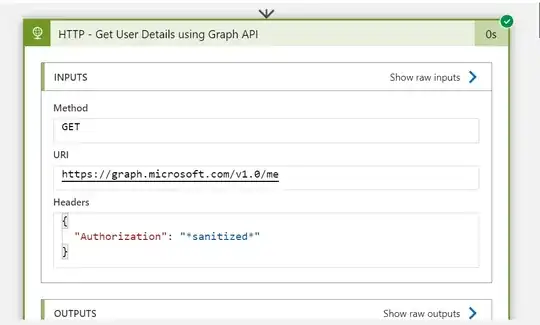

Within our azure logic app we are looking to pull down O365 groups from Microsoft Graph but are getting a 'Forbidden' error when trying to pull the groups. The token in the logic app run is not attached to the service account which has all the permissions. When recreating this locally with the same uri on POSTMAN I am able to get a valid token which shows all of the correct permissions and I am prompted to log in to the service account or else I cannot get a token at all. I do not know why the http request in the logic app is giving an incorrect token when the POSTMAN call will. It displays the token in azure logic app result as a sanitized version.

HTTP Call to Get Azure Token

We were expecting to receive an auth token that when decoded showed all of our proper permissions but this can only be recreated in POSTMAN not in azure logic app.

please share the flow diagram screenshot – Ikhtesam Afrin Jun 22 '23 at 05:54 — Ikhtesam Afrin, Jun 22 '23 at 05:54

score 0 · Answer 1 · answered Jun 22 '23 at 11:50

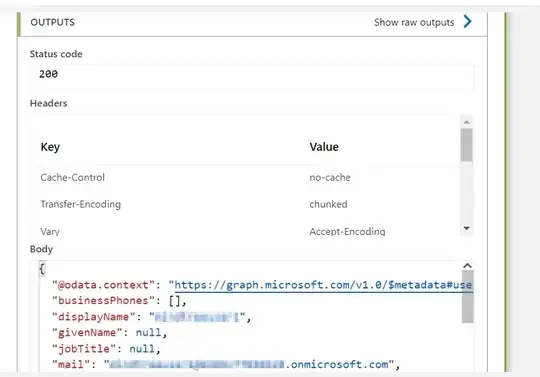

I was able to reproduce the issue and got the result successfully-

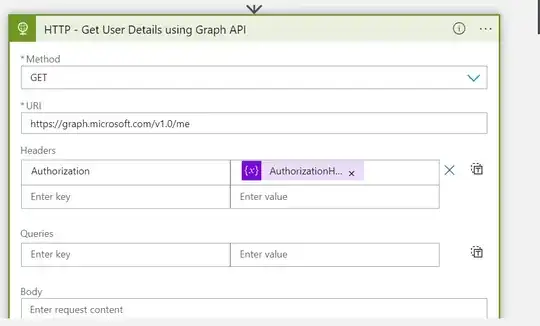

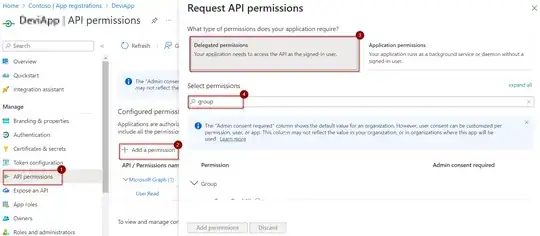

Here I am trying to get the User details using Microsoft Graph API as per MS Docs and URL is https://graph.microsoft.com/v1.0/me. Because to get the group details from Graph API, I need to have the privileges to grant admin level consent while adding API permissions in my Azure AD account.

enter image description here

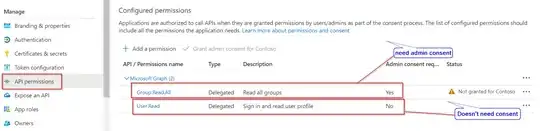

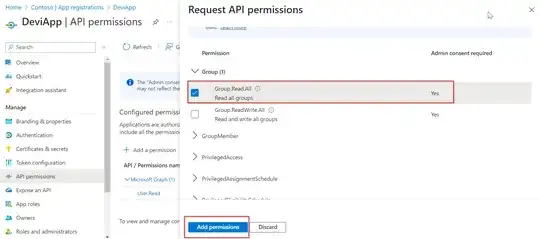

Add the Group.Read.All permission in your Azure AD application to access the Groups and it needs Admin consent.

enter image description here

As I don't have permission to grant the consent, so I am trying to get the User details by adding user.read permission which doesn't require Admin consent.

enter image description here

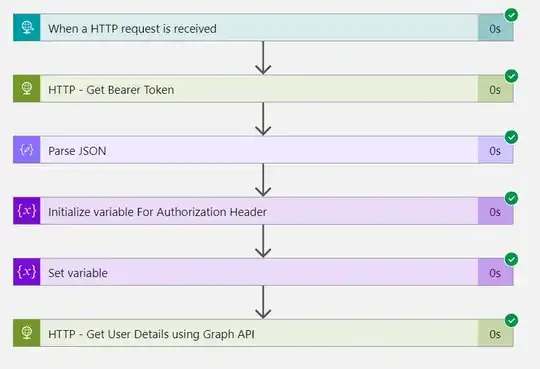

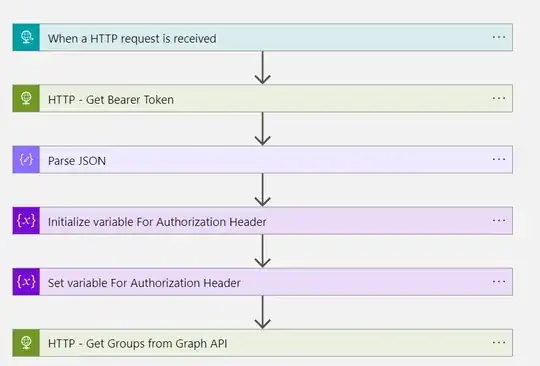

My workflow looks like below-

enter image description here

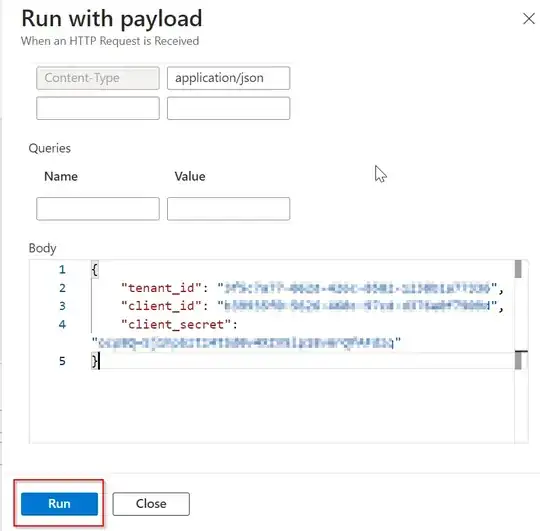

In When a HTTP request request is received trigger, I am taking the below schema.

{
"properties": {
"client_id": {
"type": "string"
},
"client_secret": {
"type": "string"
},
"tenant_id": {
"type": "string"
}
},
"type": "object"
}

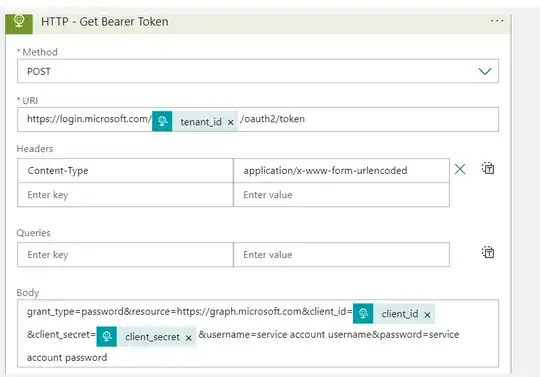

I have added the HTTP action to get the Bearer token.

enter image description here

Then added Data Operation - Parse JSON action, using the following schema

{
"properties": {
"access_token": {
"type": "string"
},
"expires_in": {
"type": "string"
},
"expires_on": {
"type": "string"
},
"ext_expires_in": {
"type": "string"
},
"not_before": {
"type": "string"
},
"resource": {
"type": "string"
},
"token_type": {
"type": "string"
}
},
"type": "object"
}

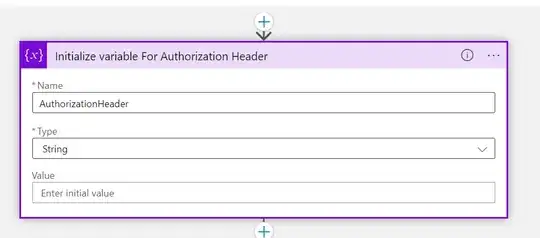

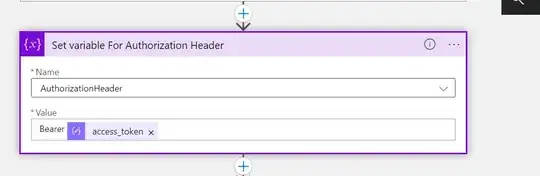

Added Initialize variable action and also Set Variable action.

enter image description here
