setup Azure Application Gateway the same as nginx reverse proxy

Question

This is my current nginx config which works the way I want.

server {
    listen 443 ssl;
    server_name subdomain.domain.com;

    ssl_certificate /etc/ssl/domain.pem;
    ssl_certificate_key /etc/ssl/domain.key;

    location /domain-folder1 {
        proxy_pass http://127.0.0.1:5678/;
        include proxy_params;
    }
    location /domain-folder2 {
        proxy_pass http://127.0.0.1:4151/;
        include proxy_params;
    }
}

I tried to setup the Application Gateway with the same logic as nginx but nothing worked so far.

I thought Path based rules should work but they dont.

score 0 · Answer 1 · answered Jun 15 '23 at 11:56

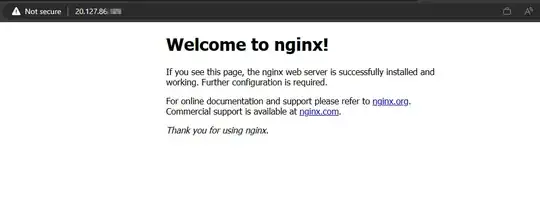

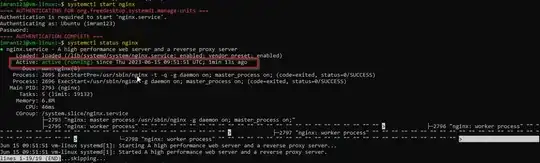

I created sample nginx proxy and setup to Azure application gateway.

enter image description here

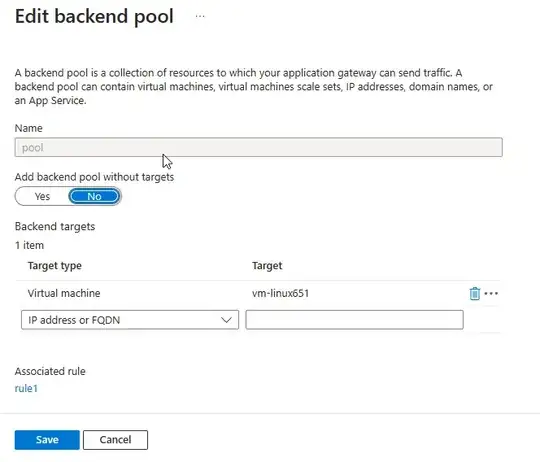

To setup the Application Gateway with the same as nginx, created application gateway added backend pool as defined in the servers or endpoints to which the requests will be forwarded for each of your backend services.

enter image description here

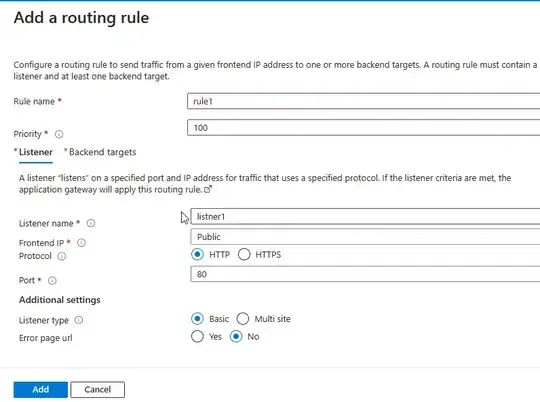

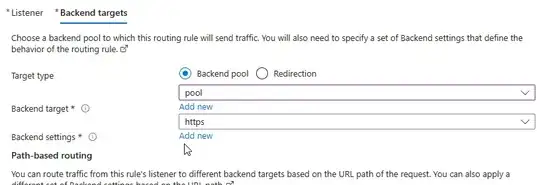

Add routing rule and backend setting, you can create a listener for port 443 and associate the appropriate SSL certificate. Specify the server name to match the host header in the incoming requests.

enter image description here
