Problems with manual bicubic interpolation algorithm (C++)

Question

I'm working on an algorithm to create an BMP output image of 1920x1080 with an input image of 4x4.

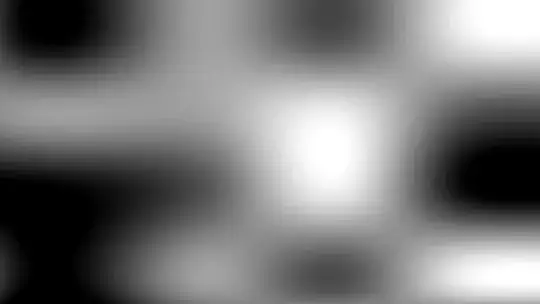

Here the output image using my algorithm

There may be some issues with my code, the image I get has darker and lighter areas, besides, the image is not centered, I wonder what I must change in my code to correct the interpolation method, I added commentaries to my code to explain the algorithm.

The full code below:

#include <iostream>
#include <string>
#include <fstream>

//This string store the 16 pixels (3 pixels per color, 48 bytes values (code in int main(){}))
std::string rgb_inp;

// Image original size
unsigned short wide_in = 4;
unsigned short height_in = 4;

// Output image size
unsigned short wide_end = 1920;
unsigned short height_end = 1080;

// This string stores all the image bytes during the interpolation (1920*1080*3 bytes)
std::string rgb_out((wide_end * 3)* height_end, '\0');

// Header of the BMP file (necessary to make the BMP file to be readable)
unsigned char enc_bmp[54] = {0x42, 0x4D, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x36, 0x00, 0x00, 0x00, 0x28, 0x00, 0x00, 0x00, 0x80, 0x07, 0x00, 0x00, 0x38, 0x04, 0x00, 0x00, 0x01, 0x00, 0x18, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00};

// Define limits for RGB values (0 to 255) and the for the 16 neighboor pixels in the 4x4 original image grid (coordinates)
float def_lims(float val_var, float val_max)
{
    if (val_var < 0)
    {
        val_var = 0;
    }
    else if (val_var > val_max)
    {
        val_var = val_max;
    }

    return val_var;
};

// Interpolation formulas
float bicub_hermite(float f_p0, float f_p1, float f_p2, float f_p3, float xy_frac)
{
    float coef_a = -(0.5f * f_p0) + (1.5f * f_p1) - (1.5f * f_p2) + (0.5f * f_p3);
    float coef_b = (f_p0)-(2.5f * f_p1) + (2.0f * f_p2) - (0.5f * f_p3);
    float coef_c = -(0.5f * f_p0) + (0.5f * f_p2);
    float coef_d = f_p1;

    return (coef_a * (xy_frac * xy_frac * xy_frac)) + (coef_b * (xy_frac * xy_frac)) + (coef_c * (xy_frac)) + (coef_d);
};

// Get the memory direction for the pixel in the original image with the normalized coordinates
unsigned char* pixel_lims(unsigned short x_ent2, unsigned short y_ent2)
{
    // Define limit values for the 16 neighboor pixels in the 4x4 original image grid
    x_ent2 = def_lims(x_ent2, wide_in - 1);
    y_ent2 = def_lims(y_ent2, height_in - 1);

    // Return memory direction (based on the integer value of the normalized coordinate) in it's first RGB value in the input image
    return reinterpret_cast<unsigned char *>(&rgb_inp[(y_ent2 * (wide_in * 3)) + (x_ent2 * 3)]);
};

// Normalize coordinates (proportionally) and store the 3 RGB values in a string
std::string pixel_interp(float& cord_u2, float& cord_v2)
{
    // Normalize coordinates and make x_frac and y_frac the fractional part of the normalized coordinate (xy_frac in bicub_hermite)
    float cord_x = (cord_u2 * wide_in);
    unsigned short x_ent = cord_x;
    // Fractional part of the coordinate
    float x_frac = cord_x - short(cord_x);

    float cord_y = (cord_v2 * height_in);
    unsigned short y_ent = cord_y;
    float y_frac = cord_y - short(cord_y);

    // 16 neighboor pixels (4 rows in total of 4 pixels every row), first row
    unsigned char* p00 = pixel_lims(x_ent - 1, y_ent - 1);
    unsigned char* p10 = pixel_lims(x_ent + 0, y_ent - 1);
    unsigned char* p20 = pixel_lims(x_ent + 1, y_ent - 1);
    unsigned char* p30 = pixel_lims(x_ent + 2, y_ent - 1);

    // Second row
    unsigned char* p01 = pixel_lims(x_ent - 1, y_ent + 0);
    unsigned char* p11 = pixel_lims(x_ent + 0, y_ent + 0); // Origin coordinate
    unsigned char* p21 = pixel_lims(x_ent + 1, y_ent + 0);
    unsigned char* p31 = pixel_lims(x_ent + 2, y_ent + 0);

    unsigned char* p02 = pixel_lims(x_ent - 1, y_ent + 1);
    unsigned char* p12 = pixel_lims(x_ent + 0, y_ent + 1);
    unsigned char* p22 = pixel_lims(x_ent + 1, y_ent + 1);
    unsigned char* p32 = pixel_lims(x_ent + 2, y_ent + 1);

    unsigned char* p03 = pixel_lims(x_ent - 1, y_ent + 2);
    unsigned char* p13 = pixel_lims(x_ent + 0, y_ent + 2);
    unsigned char* p23 = pixel_lims(x_ent + 1, y_ent + 2);
    unsigned char* p33 = pixel_lims(x_ent + 2, y_ent + 2);

    // Store the interpolated pixel (3 interpolation process, one per RGB layer)
    std::string interp_2d_pixel(3, '\0');
    for (unsigned int i = 0; i < 3; ++i)
    {
        // Interpolate vertically
        float fila_0 = bicub_hermite(p00[i], p10[i], p20[i], p30[i], x_frac);
        float fila_1 = bicub_hermite(p01[i], p11[i], p21[i], p31[i], x_frac);
        float fila_2 = bicub_hermite(p02[i], p12[i], p22[i], p32[i], x_frac);
        float fila_3 = bicub_hermite(p03[i], p13[i], p23[i], p33[i], x_frac);

        // Interpolate horizontally
        float pixel_val = bicub_hermite(fila_0, fila_1, fila_2, fila_3, y_frac);

        // Define maximum value for in the RGB scale
        pixel_val = def_lims(pixel_val, 255.0f);

        // Store the value in the 3 layer RGB pixel
        interp_2d_pixel[i] = static_cast<unsigned char>(pixel_val);
    }

    // Return the string of 3 RGB values
    return interp_2d_pixel;
};

// Iterate and store values for the output rgb string (output image of 1920 rows x 1080 columns)
void redim_img()
{
    // Iterator for the Y axis
    char* it_rgb_out_y = &rgb_out[0];

    for (unsigned short filas_y = 0; filas_y < height_end; ++filas_y)
    {
        // Iterator for the X axis
        char* it_rgb_out_x = it_rgb_out_y;

        // cord_v is the regular fraction value in the Y axis (1/1920 * iteration number)
        float cord_v = float(filas_y) / float(height_end - 1);

        for (unsigned short columnas_x = 0; columnas_x < wide_end; ++columnas_x)
        {
            // cord_u is the regular fraction value in the X axis (1/1080 * iteration number)
            float cord_u = float(columnas_x) / float(wide_end - 1);
            std::string pixel_rgb_out(3, '\0');

            // Call to function pixel_interp
            pixel_rgb_out = pixel_interp(cord_u, cord_v);

            // Store the 3 RGB values
            it_rgb_out_x[0] = pixel_rgb_out[0];
            it_rgb_out_x[1] = pixel_rgb_out[1];
            it_rgb_out_x[2] = pixel_rgb_out[2];

            // Move the iterator 3 positions (1 pixel)
            it_rgb_out_x += 3;
        }

        // Move the iterator 1920*3 positions (a row)
        it_rgb_out_y += wide_end * 3;
    }
};

int main()
{
    // Insert the 16 pixels
    rgb_inp.push_back(0x00);
    rgb_inp.push_back(0x00);
    rgb_inp.push_back(0x00);
    rgb_inp.push_back(0xA0);
    rgb_inp.push_back(0xA0);
    rgb_inp.push_back(0xA0);
    rgb_inp.push_back(0x50);
    rgb_inp.push_back(0x50);
    rgb_inp.push_back(0x50);
    rgb_inp.push_back(0xF0);
    rgb_inp.push_back(0xF0);
    rgb_inp.push_back(0xF0);
    rgb_inp.push_back(0x00);
    rgb_inp.push_back(0x00);
    rgb_inp.push_back(0x00);
    rgb_inp.push_back(0x50);
    rgb_inp.push_back(0x50);
    rgb_inp.push_back(0x50);
    rgb_inp.push_back(0xF0);
    rgb_inp.push_back(0xF0);
    rgb_inp.push_back(0xF0);
    rgb_inp.push_back(0x00);
    rgb_inp.push_back(0x00);
    rgb_inp.push_back(0x00);
    rgb_inp.push_back(0xA0);
    rgb_inp.push_back(0xA0);
    rgb_inp.push_back(0xA0);
    rgb_inp.push_back(0xA0);
    rgb_inp.push_back(0xA0);
    rgb_inp.push_back(0xA0);
    rgb_inp.push_back(0xF0);
    rgb_inp.push_back(0xF0);
    rgb_inp.push_back(0xF0);
    rgb_inp.push_back(0x50);
    rgb_inp.push_back(0x50);
    rgb_inp.push_back(0x50);
    rgb_inp.push_back(0x00);
    rgb_inp.push_back(0x00);
    rgb_inp.push_back(0x00);
    rgb_inp.push_back(0xA0);
    rgb_inp.push_back(0xA0);
    rgb_inp.push_back(0xA0);
    rgb_inp.push_back(0x50);
    rgb_inp.push_back(0x50);
    rgb_inp.push_back(0x50);
    rgb_inp.push_back(0xF0);
    rgb_inp.push_back(0xF0);
    rgb_inp.push_back(0xF0);

    // Store the BMP header to the output image
    std::string bmp_out;

    for (unsigned char ch_ch : enc_bmp)
    {
        bmp_out.push_back(ch_ch);
    }

    // Start of the algorithm
    redim_img();

    // Store all the RGB values (pixels) from rgb_out string in the output image
    for (unsigned char ch_ch : rgb_out)
    {
        bmp_out.push_back(ch_ch);
    }

    // Save the image
    std::ofstream bmp_arch("C:/Users/-/Desktop/x_0.bmp", std::ios::binary);
    bmp_arch.write(bmp_out.data(), bmp_out.size());
    bmp_arch.close();
    std::cout << "Finished";

    return 0;
}

I need the correct Hermite bicubic interpolation algorith to resize image.

You will also need to rescale the rgb values to account for gamma which is usually between 1.8 and 2.4. interpolation assumes gamma=1. — doug, May 12 '23 at 01:46

score 0 · Answer 1 · answered May 12 '23 at 02:42

Thank you for posting an example that was easy to compile and run. You code is very close.

Since the interpolation is not symmetric, that is it samples -1,0,+1,+2 pixels in each dimension, you need to offset your sampling of the source image by half a pixel to keep the image centered. This is a very simple change.

    float cord_x = (cord_u2 * wide_in) - 0.5; // subtract 1/2 pixel here
    short x_ent = cord_x; // change this to signed
    // Fractional part of the coordinate
    float x_frac = cord_x - short(cord_x);

    float cord_y = (cord_v2 * height_in) - 0.5; // subtract 1/2 pixel here
    short y_ent = cord_y; // change this to signed
    float y_frac = cord_y - short(cord_y);

And, a type change in pixel_lims to accommodate the possibly negative numbers:

unsigned char* pixel_lims(short x_ent2, short y_ent2)

I now get this image which matches your expected result
