I am using ExtendedFloatingActionButton and make it movable on screen but it's view is missing from left side wen move it to the left of screen.

This is the image of screen where button is Working fine on right side: enter image description here

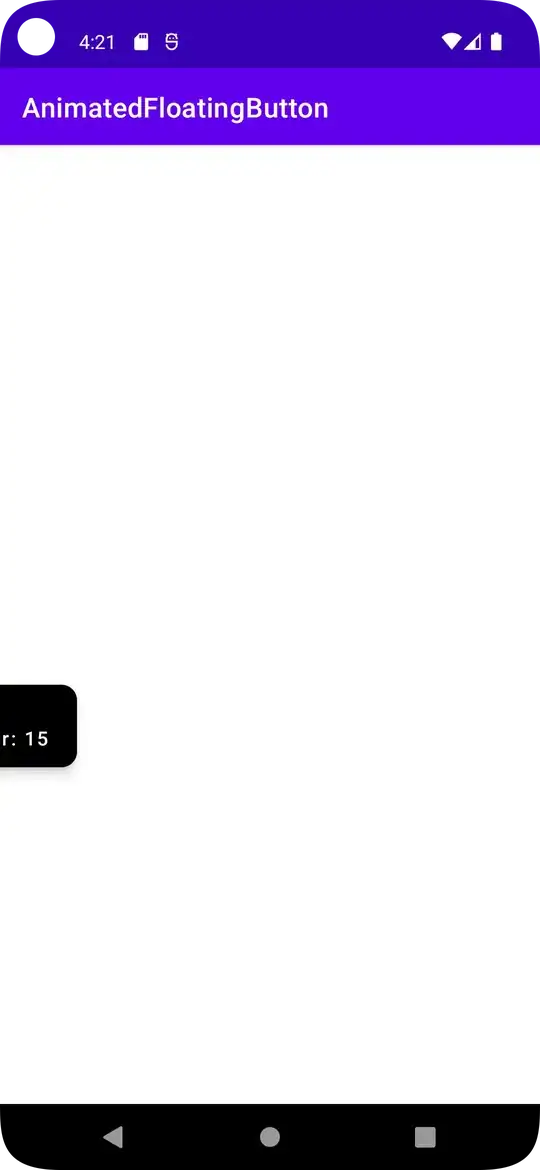

This is the image of screen where button is not working on left side: enter image description here here is the xml file:

<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".MainActivity">

<com.google.android.material.floatingactionbutton.ExtendedFloatingActionButton
    android:id="@+id/fab"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    app:icon="@drawable/ic_baseline_4g_mobiledata_24"
    android:text=""
    app:iconTint="@color/white"
    android:textColor="@color/white"
    app:backgroundTint="@color/black"
    app:iconGravity="end"
    android:textAllCaps="false"
    android:layout_gravity="center|end"
    android:layout_marginBottom="20dp"
    android:layout_marginEnd="20dp"/>

And this is my main class code:

class MainActivity : AppCompatActivity(), View.OnTouchListener {
lateinit var fab: ExtendedFloatingActionButton

private val CLICK_DRAG_TOLERANCE =
    10f // Often, there will be a slight, unintentional, drag when the user taps the FAB, so we need to account for this.


private var downRawX = 0f
private  var downRawY:kotlin.Float = 0f
private var dX = 0f
private  var dY:kotlin.Float = 0f

override fun onCreate(savedInstanceState: Bundle?) {
    super.onCreate(savedInstanceState)
    setContentView(R.layout.activity_main)

    val view: View = findViewById(R.id.fab);
    view.setOnTouchListener(this);

    fab = findViewById(R.id.fab)

    fab.shrink()

    fab.setOnClickListener {
        if (!fab.isExtended) {
            fab.extend()
            fab.text = "Boost: Off \nPing: 99 Jitter: 15"
            fab.maxLines = 2
            fab.background = applicationContext.getDrawable(R.drawable.fab_back)
        } else {
            fab.shrink()
            fab.background = applicationContext.getDrawable(R.drawable.circle_fab)

        }
    }
}

override fun onTouch(view: View?, motionEvent: MotionEvent): Boolean {

    val action = motionEvent.action
    return if (action == MotionEvent.ACTION_DOWN) {
        downRawX = motionEvent.rawX
        downRawY = motionEvent.rawY
        dX = view!!.x - downRawX
        dY = view!!.y - downRawY
        true // Consumed
    } else if (action == MotionEvent.ACTION_MOVE) {
        val viewWidth = view!!.width
        val viewHeight = view!!.height
        val viewParent = view!!.parent as View
        val parentWidth = viewParent.width
        val parentHeight = viewParent.height
        var newX = motionEvent.rawX + dX
        newX = Math.max(0f, newX) // Don't allow the FAB past the left hand side of the parent
        newX = Math.min(
            (parentWidth - viewWidth).toFloat(),
            newX)

        if (newX < 1.0) {
            fab.iconGravity = MaterialButton.ICON_GRAVITY_START
        } else {
            fab.iconGravity = MaterialButton.ICON_GRAVITY_END
        }
        Log.e("error", newX.toString())
        // Don't allow the FAB past the right hand side of the parent
        var newY = motionEvent.rawY + dY
        newY = Math.max(0f, newY) // Don't allow the FAB past the top of the parent
        newY = Math.min(
            (parentHeight - viewHeight).toFloat(),
            newY
        ) // Don't allow the FAB past the bottom of the parent
        view!!.animate()
            .x(newX)
            .y(newY)
            .setDuration(0)
            .start()
        true // Consumed
    } else if (action == MotionEvent.ACTION_UP) {
        val upRawX = motionEvent.rawX
        val upRawY = motionEvent.rawY
        val upDX = upRawX - downRawX
        val upDY = upRawY - downRawY
        if (Math.abs(upDX) < CLICK_DRAG_TOLERANCE && Math.abs(upDY) < CLICK_DRAG_TOLERANCE) { // A click
            performClick()
        } else { // A drag
            true // Consumed
        }
    } else {
        super.onTouchEvent(motionEvent)
    }
}

private fun performClick(): Boolean {

    if (!fab.isExtended) {
        fab.extend()
        fab.text = "Boost: Off \nPing: 99 Jitter: 15"
        fab.maxLines = 2
        fab.background = applicationContext.getDrawable(R.drawable.fab_back)
    } else {
        fab.shrink()
        fab.background = applicationContext.getDrawable(R.drawable.circle_fab)

    }
    return true
}

}

Can someone help me to figure out the problem? I don't know why it's happening like this.

0 Answers0
