My SwiftUI Button is not tappable for minus image systemName

Question

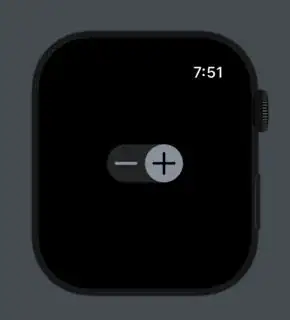

This is a fully reproducible example View to show the problem:

import SwiftUI

struct SwitchView: View {
    @State private var timeMode = 1
    var body: some View {
        HStack(spacing: 0) {
            Button {
                timeMode = 0
            } label: {
                Image(systemName: "minus") //When I change to `plus` then everything is fine✅, but I need minus here.
                    .resizable()
                    .scaledToFit()
                    .frame(width: 24 , height: 24, alignment: .center)
            }
            .frame(width: 40, height: 40)
            .background(Color.gray.opacity(timeMode == 0 ? 1 : 0))
            .foregroundColor(timeMode == 0 ? Color.black : Color.gray)
            .cornerRadius(20)
            .buttonStyle(.plain)
            Button {
                timeMode = 1
            } label: {
                Image(systemName: "plus")
                    .resizable()
                    .scaledToFit()
                    .frame(width: 24 , height: 24, alignment: .center)
            }
            .frame(width: 40, height: 40)
            .background(Color.gray.opacity(timeMode == 1 ? 1 : 0))
            .foregroundColor(timeMode == 1 ? Color.black : Color.gray)
            .cornerRadius(20)
            .buttonStyle(.plain)
        }
        .background(Color.gray.opacity(0.3))
        .cornerRadius(20)
    }
}

struct SwitchView_Previews: PreviewProvider {
    static var previews: some View {
        SwitchView()
    }
}

minus button doesn't work correctly. It doesn't detect taps every time. Try to tap it above or below minus shape. When you tap on the simulator EXACTLY on the shape of minus then it works. But of course I want it to be tappable a whole Button, not just its shape.

Why does an image matter here? How can I find the issue?

The answer to this was supplied [24 days ago here](https://stackoverflow.com/questions/75322929/my-swiftui-button-doesnt-detect-tap-correctly-because-of-minus-image), though you had said it did not work. From Ashley Mills: "_Add `.contentShape(Ellipse())` to each button after the .frame modifier_". The solution below adds the method before the `.frame()` - could that make a difference? — halfer, Feb 26 '23 at 10:32

score 1 · Accepted Answer · edited Mar 23 '23 at 06:33

1

You need to explicitly tell SwiftUI to consider the whole shape of the Button as tappable. This can be achieved using the modifier .contentShape(...).

Here is how to use it:

            Button {
                timeMode = 0
            } label: {
                Image(systemName: "minus") //When I change to `plus` then everything is fine✅, but I need minus here.
                    .resizable()
                    .scaledToFit()
                    .frame(width: 24 , height: 24, alignment: .center)
            }

            .contentShape(Rectangle())    // <- Here!!!

            .frame(width: 40, height: 40)
            .background(Color.gray.opacity(timeMode == 0 ? 1 : 0))
            .foregroundColor(timeMode == 0 ? Color.black : Color.gray)
            .cornerRadius(20)
            .buttonStyle(.plain)

The Rectangle() shape will also accept taps outside of the round corners of the minus button, so you could try using Capsule() or Circle() instead and see if it works better.

edited Mar 23 '23 at 06:33

Bartłomiej Semańczyk

59,234
49
233
358

answered Feb 26 '23 at 08:44

HunterLion

3,496
1
6
18

Unfortunately it didnt work. I dont undertstand why, but for some reason images with very flat shapes are not tappable inside Buttons. The solution was to change systemName from "minus" to "minus.circle.fill". – Bartłomiej Semańczyk Mar 23 '23 at 07:53
I can’t tell you why… it worked for me in the simulator. – HunterLion Mar 24 '23 at 08:57
It works in the simulator from time to time...;) not for every tap;) – Bartłomiej Semańczyk Mar 24 '23 at 09:10
