I'm trying to build a LazyVGrid, that contains square cells that dynamically size with the text inside them, something like this:

struct BandView: View {

    let bands: [Band]

    var body: some View {
        LazyVGrid(columns: [GridItem(.adaptive(minimum: 120))]) {
            ForEach(bands, id: \.self) { band in
                BandCell(band: band)
            }
        }
        .frame(maxHeight: .infinity, alignment: .topLeading)
        .padding()
    }
}

struct BandCell: View {

    let band: Band

    var body: some View {
        GroupBox {
            VStack(alignment: .leading, spacing: 8) {
                Text(band.leadSinger)
                    .lineLimit(1)
                Text("\(band.songs) songs")
            }
            .frame(maxWidth: .infinity, maxHeight: .infinity, alignment: .topLeading)
        } label: {
                Text(band.name)
                    .lineLimit(2)
        }
        .aspectRatio(1, contentMode: .fill)
    }
}

struct BandView_Previews: PreviewProvider {

    static var bands = [
        Band(name: "Wet Leg", leadSinger: "Rhian Teasdale", songs: 2),
        Band(name: "The Cure", leadSinger: "Robert Smith", songs: 6),
        Band(name: "Dave Dee, Dozy, Beaky, Mick & Tich ", leadSinger: "Dave Dee", songs: 5)
    ]

    static var previews: some View {
        BandView(bands: bands)
    }
}


struct Band: Hashable {
    let name: String
    let leadSinger: String
    let songs: Int
}

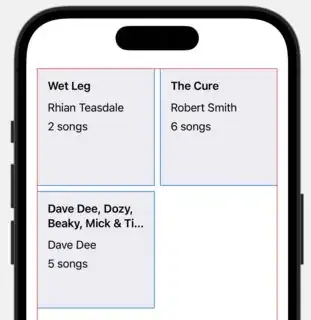

which gives me the following when using a large dynamic type size:

enter image description here

However, when I increase the font size to accessibility 3 or more the cells take up more space so that they overlap the frame of the grid (and each other):

enter image description here

I was expecting the cells to grow, but as I'm using GridItem(.adaptive) I assumed they would move onto separate rows.

Changing the aspect ratio to fit rather than fill, i.e.

.aspectRatio(1, contentMode: .fit)

and the cells stretch vertically, so don't keep the aspect ratio.

enter image description here

What am I missing?

Ashley Mills
  • 50,474
  • 16
  • 129
  • 160
  • 1
    I think its because LazyVStack is defining the nr of columns upfront and proposing their sizes to the child views, which then adapt to it. It seems like in LazyVStack the child view is not able to report back that it needs more space (which is usually possible in SwiftUI layout hierarchy). I suppose the only workaround is to skip LazyVStack altogether. – ChrisR Dec 16 '22 at 18:38
  • Have you found out a solution to share or is your initial problem still a topical issue, please? – XLE_22 Aug 31 '23 at 16:26

0 Answers0
