I have two MaterialCardView in a linear or relative layout (i don't care about the parent layout I only want the result) I want that both of the MaterialCardView should have wrap_content height

Right now The 1st MaterialCardView contains a FrameLayout that has two things an image view and a include layout that has buttons that are to be shown on the image

and

The 2nd MaterialCardView also contains a FrameLayout that has some textViews and an imageView(as a button with both height and width as wrap_content)

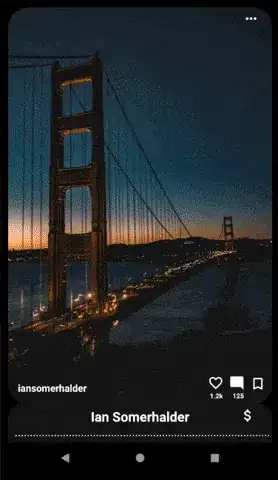

right now it looks like this

as you can see in the above screenshot, I have given weightSum and both the MaterialCardView has match_parent height, but now

I want that

the 1st and 2nd card view height should be wrap_content so it can adjust their height accordingly. I have tried to just simply make it wrap_content but it doesn't work

Note:

1: This layout is a part of a verticle recycler view

2: The TextView Sort and Category above the imageView is not part of this layout

3: If anyone wants more references for the code please tell me I will update the question

Code

Update // Removed the button layout xml code so the question dont get more confusing and long

Ok after implementing ContraintLayout as suggested in the comment now the 1st and 2nd cardview is working fine as they taking up the height as the content inside it has but it is a mess

what I want probably to look like // this is the fixed height but can get the idea Link

After implementing ContraintLayout and wrap_content height it look like this

post_item_container_home.xml // this is the updated code with wrap_content and ContraintLayout

<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:layout_centerInParent="true"
    android:background="@color/black"
    android:orientation="vertical">

    <com.google.android.material.card.MaterialCardView
        android:id="@+id/Card_View"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginStart="5dp"
        android:layout_marginEnd="5dp"
        android:elevation="6dp"
        app:cardBackgroundColor="@color/black"
        app:shapeAppearanceOverlay="@style/RoundedCornerHome"
        tools:ignore="MissingConstraints">

        <FrameLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content">

            <com.google.android.material.imageview.ShapeableImageView
                android:id="@+id/imagePostHome"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_gravity="center"
                android:adjustViewBounds="true"
                android:contentDescription="@string/todo"
                android:tag="centerCrop"
                app:shapeAppearanceOverlay="@style/RoundedCornerHome" />

            <include
                android:id="@+id/imagepost_buttons"
                layout="@layout/imagepost_buttons" />
        </FrameLayout>

    </com.google.android.material.card.MaterialCardView>

    <com.google.android.material.card.MaterialCardView
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginStart="5dp"
        android:layout_marginTop="10dp"
        android:layout_marginEnd="5dp"
        android:layout_marginBottom="10dp"
        android:elevation="6dp"
        app:cardBackgroundColor="@color/dark_grey"
        app:layout_constraintBottom_toBottomOf="@+id/Card_View"
        app:shapeAppearanceOverlay="@style/RoundedCornerHome"
        tools:ignore="MissingConstraints">

        <FrameLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content">

            <ImageView
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_gravity="top|right"
                android:layout_marginTop="5dp"
                android:layout_marginEnd="25dp"
                android:contentDescription="@string/todo"
                android:src="@drawable/ic_baseline_attach_money_24"
                tools:ignore="RtlHardcoded" />

            <TextView
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_gravity="center_horizontal"
                android:layout_marginTop="5dp"
                android:fontFamily="@font/roboto"
                android:text="Ian Somerhalder"
                android:textColor="@color/white"
                android:textSize="20sp"
                android:textStyle="bold"
                tools:ignore="SmallSp" />

            <TextView
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_gravity="left|center_vertical"
                android:layout_marginLeft="10dp"
                android:fontFamily="@font/roboto"
                android:text=".............."
                android:textColor="@color/white"
                android:textSize="17sp"
                tools:ignore="RtlHardcoded" />

        </FrameLayout>


    </com.google.android.material.card.MaterialCardView>


</androidx.constraintlayout.widget.ConstraintLayout>

OLD / Orignal

post_item_container_home.xml

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:layout_centerInParent="true"
    android:background="@color/black"
    android:orientation="vertical"
    android:weightSum="5">

    <com.google.android.material.card.MaterialCardView
        android:id="@+id/Card_View"
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_marginStart="5dp"
        android:layout_marginEnd="5dp"
        android:layout_weight="4"
        android:elevation="6dp"
        app:cardBackgroundColor="@color/black"
        app:shapeAppearanceOverlay="@style/RoundedCornerHome">

        <FrameLayout
            android:layout_width="match_parent"
            android:layout_height="match_parent">

            <com.google.android.material.imageview.ShapeableImageView
                android:id="@+id/imagePostHome"
                android:layout_width="match_parent"
                android:layout_height="match_parent"
                android:layout_gravity="center"
                android:adjustViewBounds="true"
                android:contentDescription="@string/todo"
                android:tag="centerCrop"
                app:shapeAppearanceOverlay="@style/RoundedCornerHome" />

            <include
                android:id="@+id/imagepost_buttons"
                layout="@layout/imagepost_buttons" />
        </FrameLayout>

    </com.google.android.material.card.MaterialCardView>

    <com.google.android.material.card.MaterialCardView
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_marginStart="5dp"
        android:layout_marginTop="10dp"
        android:layout_marginEnd="5dp"
        android:layout_marginBottom="10dp"
        android:layout_weight="1"
        android:elevation="6dp"
        app:cardBackgroundColor="@color/dark_grey"
        app:shapeAppearanceOverlay="@style/RoundedCornerHome">

        <FrameLayout
            android:layout_width="match_parent"
            android:layout_height="match_parent">

            <ImageView
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_gravity="top|right"
                android:layout_marginTop="5dp"
                android:layout_marginEnd="25dp"
                android:contentDescription="@string/todo"
                android:src="@drawable/ic_baseline_attach_money_24"
                tools:ignore="RtlHardcoded" />

            <TextView
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_gravity="center_horizontal"
                android:layout_marginTop="5dp"
                android:fontFamily="@font/roboto"
                android:text="Ian Somerhalder"
                android:textColor="@color/white"
                android:textSize="20sp"
                android:textStyle="bold"
                tools:ignore="SmallSp" />

            <TextView
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_gravity="left|center_vertical"
                android:layout_marginLeft="10dp"
                android:fontFamily="@font/roboto"
                android:text=".............."
                android:textColor="@color/white"
                android:textSize="17sp"
                tools:ignore="RtlHardcoded" />

        </FrameLayout>


    </com.google.android.material.card.MaterialCardView>


</LinearLayout>
Dharman
  • 30,962
  • 25
  • 85
  • 135
Vasant Raval
  • 257
  • 1
  • 12
  • 31
  • Ok I understand , but I want that the image card view should be the wrap content with no limitations but yes I want the second cardvoew with limited min height and max height , and for the concern of the scroll view I'm also confused , isn't there any method where even if the second card view is going out of the layout still it will appear in recyclerview as normal , I'm confused in this – Vasant Raval Nov 20 '21 at 04:00
  • And there is no scrollview right now – Vasant Raval Nov 20 '21 at 04:01
  • Do you mind to use `ConstraintLayout` instead of the `LinearLayout`? – Zain Nov 20 '21 at 13:44
  • Ok i have update the question can you please check the Update section – Vasant Raval Nov 20 '21 at 14:45
  • Excuse me as adding this as a `RecyclerView` item layout will be able to wrap its entire content as the recyclerView already scrolls its items and calculates the needed size for them. – Zain Nov 20 '21 at 18:03

1 Answers1

1

With ConstranitLayout, it would be easier to adjust the buttons layout on top of the image; and adjust the constraints of both cards to wrap their content.

The app:layout_constraintBottom_toBottomOf="@+id/Card_View" should be changed to:

  • either app:layout_constraintBottom_toBottomOf="parent"
  • or app:layout_constraintTop_toBottomOf="@id/Card_View"

And optionally you can adjust a minimum height constraint with app:layout_constraintHeight_min="100dp" and maximum height constraint with app:layout_constraintHeight_min="200dp".. adjust the sizing to your needs

<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:layout_centerInParent="true"
    android:background="@color/black"
    android:orientation="vertical">

    <com.google.android.material.card.MaterialCardView
        android:id="@+id/Card_View"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginStart="5dp"
        android:layout_marginEnd="5dp"
        android:elevation="6dp"
        app:cardBackgroundColor="@color/black"
        app:layout_constrainedHeight="true"
        app:layout_constraintBottom_toTopOf="@id/bottom_card"
        app:layout_constraintTop_toTopOf="parent"
        app:shapeAppearanceOverlay="@style/RoundedCornerHome">

        <FrameLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content">

            <com.google.android.material.imageview.ShapeableImageView
                android:id="@+id/imagePostHome"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_gravity="center"
                android:adjustViewBounds="true"
                android:contentDescription="@string/todo"
                android:tag="centerCrop"
                app:shapeAppearanceOverlay="@style/RoundedCornerHome" />

            <include
                android:id="@+id/imagepost_buttons"
                layout="@layout/imagepost_buttons" />
        </FrameLayout>

    </com.google.android.material.card.MaterialCardView>

    <com.google.android.material.card.MaterialCardView
        android:id="@+id/bottom_card"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginStart="5dp"
        android:layout_marginTop="10dp"
        android:layout_marginEnd="5dp"
        android:layout_marginBottom="10dp"
        android:elevation="6dp"
        app:layout_constraintHeight_min="100dp"
        app:layout_constraintHeight_max="200dp"
        app:cardBackgroundColor="@color/dark_grey"
        app:layout_constraintBottom_toBottomOf="parent"
        app:shapeAppearanceOverlay="@style/RoundedCornerHome">

        <FrameLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content">

            <ImageView
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_gravity="top|right"
                android:layout_marginTop="5dp"
                android:layout_marginEnd="25dp"
                android:contentDescription="@string/todo"
                android:src="@drawable/ic_baseline_attach_money_24"
                tools:ignore="RtlHardcoded" />

            <TextView
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_gravity="center_horizontal"
                android:layout_marginTop="5dp"
                android:fontFamily="@font/roboto"
                android:text="Ian Somerhalder"
                android:textColor="@color/white"
                android:textSize="20sp"
                android:textStyle="bold"
                tools:ignore="SmallSp" />

            <TextView
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:layout_gravity="left|center_vertical"
                android:layout_marginLeft="10dp"
                android:fontFamily="@font/roboto"
                android:text=".............."
                android:textColor="@color/white"
                android:textSize="17sp"
                tools:ignore="RtlHardcoded" />

        </FrameLayout>


    </com.google.android.material.card.MaterialCardView>


</androidx.constraintlayout.widget.ConstraintLayout>

UPDATE

but now the bottom card view is not maintaining the min and max height

Here using the min & max constraints will limit the height of the TextView to a min & max values; but it still wraps its content if its height doesn't exceed the min & max values.

You can solve this by replacing the FrameLayout with a ConstraintLayout; actually using FrameLayout here can make inner views overlap with one another:

    <androidx.constraintlayout.widget.ConstraintLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content">

        <ImageView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_marginTop="5dp"
            android:layout_marginEnd="25dp"
            android:layout_marginRight="25dp"
    android:contentDescription="@string/todo"
            android:src="@drawable/ic_baseline_attach_money_24"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintTop_toTopOf="parent"
            tools:ignore="RtlHardcoded" />

        <TextView
            android:id="@+id/title"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_gravity="center_horizontal"
            android:layout_marginTop="5dp"
            android:fontFamily="@font/roboto"
            android:text="Ian Somerhalder"
            android:textColor="@color/white"
            android:textSize="20sp"
            android:textStyle="bold"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="parent"
            tools:ignore="SmallSp" />

        <TextView
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_marginStart="10dp"
            android:layout_marginLeft="10dp"
            android:fontFamily="@font/roboto"
            android:text=".............."
            android:textColor="@color/white"
            android:textSize="17sp"
            app:layout_constraintTop_toBottomOf="@+id/title"
            tools:ignore="RtlHardcoded" />

    </androidx.constraintlayout.widget.ConstraintLayout>

Zain
  • 37,492
  • 7
  • 60
  • 84
  • ok I have tried your solution and it worked thank you for it, but I have some issue with the margin I can't separate the top card view from the bottom I have given the margins but still it looks joint , ok what you are talking about the scroll view , if implement a scroll view will it work is i want is it possible with scroll view , and thanks once again for your answer – Vasant Raval Nov 20 '21 at 18:31
  • @VasantRaval Having a `ScrollView` with the same direction as the `RecyclerView` will have issues in transitioning the scroll between both; can you tell which margin you refer to; do you want to add margin between both cards? – Zain Nov 20 '21 at 19:05
  • If it's the margin between both cards; you can add `android:layout_marginBottom="..."` to the top card – Zain Nov 20 '21 at 19:17
  • I have implemented margin bottom to the top cardvoew but the it's still joined – Vasant Raval Nov 21 '21 at 07:50
  • This is strange, as it worked with me.. are you sure that you added `app:layout_constraintBottom_toTopOf="@id/bottom_card"` to the top card? .. I modified the answer as I dismissed adding the id of the bottom card – Zain Nov 21 '21 at 11:49
  • If still not working, please let me know to provide alternative way – Zain Nov 21 '21 at 13:48
  • ok I forget to add that and I added now and the margin is now applied but now the bottom card view is not maintaining the min and max height – Vasant Raval Nov 22 '21 at 09:56
  • it just wrap_content perfectly butnot maintaining the min height – Vasant Raval Nov 22 '21 at 09:57
  • @VasantRaval I suspect that it's due to the `FrameLayout`; but as I have no Android studio right now.. I'll check it at night – Zain Nov 22 '21 at 12:22
  • 1
    ok, please don't mind but can we continue this discussion after some time, actually I have just converted my project from java to kotlin and as expected there are a few errors so i will not be able to run the app till the errors are resolved – Vasant Raval Nov 22 '21 at 12:28
  • @VasantRaval Thanks to check the UPDATE section in the answer; feel free to connect back – Zain Nov 22 '21 at 20:39
  • Thanks ,I will update the code , asap after the Kotlin errors are solved – Vasant Raval Nov 23 '21 at 09:36
  • And inform you about the code – Vasant Raval Nov 23 '21 at 09:36
  • Thank you so much , it worked like a boss , that's why i love programing community , they help so much with problems you have , thanks once again – Vasant Raval Nov 24 '21 at 11:12
  • here is a SS https://drive.google.com/file/d/1QGdfff8tJkFIY9ECd35L3nQytuGsmvLn/view?usp=sharing – Vasant Raval Nov 24 '21 at 11:14
  • Good Job! @VasantRaval Keep it up! – Zain Nov 24 '21 at 13:31
