Multi-panel regression tables in R

Question

I am trying to create a regression table that has two panels with overlapping but not identical dependent variables. For each panel, I want a title indicating the name of each panel as well as the dependent variables for each regression.

# rm(list = ls())

data("mtcars")

# Regressions for panel 1
reg1 <- lm(mpg ~ cyl + disp, data = mtcars)
reg2 <- lm(cyl ~ cyl + disp, data = mtcars)

# Regressions for panel 2
reg3 <- lm(mpg ~ hp + drat, data = mtcars)
reg4 <- lm(cyl ~ hp + drat, data = mtcars)
reg5 <- lm(disp ~ hp + qsec, data = mtcars)

# Panel 1 output
panel1 <- stargazer::stargazer(
  reg1, reg2,
  float = TRUE,
  header = FALSE,
  model.numbers = FALSE,
  omit.table.layout = "n",
  multicolumn = FALSE,
  dep.var.caption = "",
  type = "latex",
  align = TRUE,
  digits = 2,
  df = FALSE,
  digits.extra = 2,
  nobs = TRUE,
  omit.stat = c("rsq", "adj.rsq", "ser")
)

# Panel 2 output
panel2 <-
  stargazer::stargazer(
  reg3, reg4, reg5,
  float = TRUE,
  header = FALSE,
  model.numbers = FALSE,
  omit.table.layout = "n",
  multicolumn = FALSE,
  dep.var.caption = "",
  type = "latex",
  align = TRUE,
  digits = 2,
  df = FALSE,
  digits.extra = 2,
  nobs = TRUE,
  omit.stat = c("rsq", "adj.rsq", "ser")
)

# Plot panels together
table <-
  starpolishr::star_panel(
  panel1,
  panel2,
  panel.names = c(
    "Panel 1",
    "Panel 2"
  ),
  same.summary.stats = FALSE,
  same.lhs.vars = FALSE )

# Save as a .tex file
starpolishr::star_tex_write(
  starlist = table,
  file = paste0(here::here(), "/panel_mwes.tex"),
  headers = FALSE
)

This code produces the following output:

What I need to change is 1) Move "Panel A: Panel 1" above the dependent variable names; and 2) add dependent variable names below "Panel B: Panel 2". Is there any good way of implementing this (in stargazer/starpolishr or otherwise) without being super hacky?

Please, don't put never ever `rm(list = ls())` in your code. If someone runs your code a massive loss of data could occure. — Martin Gal, Jul 18 '21 at 21:09
@Martin Gal, thanks for catching, I forgot to comment it out. — Thomas J. Brailey, Jul 19 '21 at 05:01
Do the two tables need to be vertically concatenated into a single table, or is it OK to have them either as two separate tables or horizontally concatenated? If the latter, would the `custom.header` argument in `texreg` do what you are asking for? See [here](https://github.com/leifeld/texreg/issues/3#issuecomment-632697568). — Philip Leifeld, Jul 20 '21 at 14:33
Thanks @PhilipLeifeld -- unfortunately these panels need to be vertically concatenated. — Thomas J. Brailey, Jul 20 '21 at 15:51

score 0 · Answer 1 · answered Jul 21 '21 at 16:00

So here is my hacky way of doing things (I won't accept this as the answer as there must be a better way of doing this).

# 1. Flip the panel name and column names around
col_names  <- table[8]
panel_name <- table[10]

table[8]  <- panel_name
table[10] <- col_names

# 2. Insert custom column names below panel 2 header
table <-
  starpolishr::star_insert_row(
    table,
    c("\\hline \\\\[-1.8ex] & \\multicolumn{1}{c}{mpg} & \\multicolumn{1}{c}{cyl} & \\multicolumn{1}{c}{disp} \\\\ \\hline \\\\[-1.8ex]"),
    insert.after = c(24)
  )

# Save output
starpolishr::star_tex_write(
  starlist = table,
  file = paste0(here::here(), "/panel_mwe2.tex"),
  headers = FALSE
)

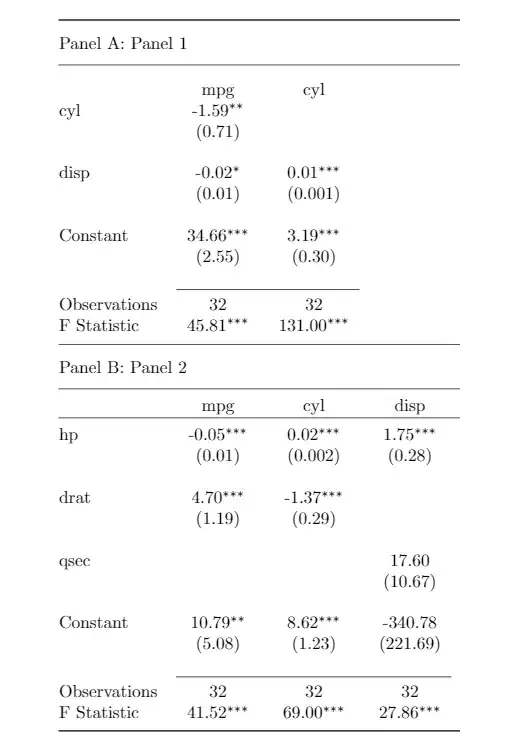

The following output is roughly what I am trying to achieve:
