Why does SSIS fail to create this task?

Question

I have written this code to implement an SSIS control flow task that fetches a file over HTTP:

using System;
using Microsoft.SqlServer.Dts.Runtime;

namespace HttpTask
{
    [DtsTask(
        DisplayName = "HTTP Task",
        TaskContact = "Iain Elder",
        RequiredProductLevel = DTSProductLevel.None
    )]
    public class HttpTask : Task
    {
        public string LocalPath {get; set;}
        public string Connection {get; set;}
        public bool OverwriteDestination {get; set;}

        public DTSExecResult Execute(Connections connections,
            VariableDispenser dispenser, IDTSComponentEvents events,
            IDTSLogging log, object transaction)
        {
            HttpClientConnection http = AcquireHttpConnection(connections);
            http.DownloadFile(this.LocalPath, this.OverwriteDestination);
            return DTSExecResult.Success;
        }

        private HttpClientConnection AcquireHttpConnection(Connections connections)
        {
            ConnectionManager cm = connections[this.Connection];
            object nativeConnection = cm.AcquireConnection(null);
            return new HttpClientConnection(nativeConnection);
        }
    }
}

In Visual Studio I build and deploy my task using this post-build script to copy the package to the global assembly cache:

"C:\Program Files\Microsoft SDKs\Windows\v6.0A\Bin\gacutil.exe" /if "$(TargetPath)"
copy $(TargetFileName) "C:\Program Files (x86)\Microsoft SQL Server\100\DTS\Tasks"

I can see the task in my toolbox when using Business Intelligence Development Studio:

HTTPTask is visible in the toolbox.

When I drag the task to the design window, I see this error:

The task fails to create.

The task does not appear on the design canvas.

What have I done wrong here?

EDIT: Siva suggested that I should sign the assembly with a strong name. I followed steps 1 and 2 of the guide to signing assemblies on Benny Austin's blog. I didn't follow the other steps because my post-build script deploys the component for me.

In the Visual Studio project properties, I go to the Signing tab and create a new strong name key file for the assembly:

enter image description here

I save the settings and rebuild the package. The post-build script deploys the new package.

I still get exactly the same error.

score 4 · Answer 1 · 2011-07-15T14:37:24.377

I was able to recreate the issue that you are facing. Following example describes how to recreate the issue and also how to fix it. I used Visual Studio 2010 to create the class library DLL but the target framework version was 2.0. The Control Flow task was then added to SSIS 2008 R2 project, which is more or less same as SSIS 2008.

Step-by-step process:

In Visual Studio 2010 IDE, created a C# class library project and named it as HttpTask. Refer screenshot #1. Deleted all the references except the required ones. Added a reference to the DLL Microsoft.SQLServer.ManagedDTS, which was available in the path c:\Program Files (x86)\Microsoft SQL Server\100\SDK\Assemblies\Microsoft.SQLServer.ManagedDTS.dll in my machine. The path can be different based on the version of SQL Server that you have installed. 100 in the path represents either SQL Server 2008 or SQL Server 2008 R2.
Renamed the class Program.cs to HttpTask.cs and pasted the code shown in screenshot #2. The code is exactly same as what is provided in the question. Code is also provided under the C# Class Code section.
On the class library project Properties, changed the target framework version to .NET Framework 2.0. Refer screenshot #3.
Configured the Post-build event command line as shown in screenshots #4 and #5. The gacutil.exe path on my machine was C:\Program Files (x86)\Microsoft SDKs\Windows\v7.0A\Bin\gacutil.exe. The path could be different in your machine. The script is also provided Post-Build event command line section.
The class library was not signed at this time. Refer the screenshot #6.
The project was built but the dll was not registered in GAC (Global Assembly Cache). Refer screenshot #7.
Verified that the DLL was correctly copied to the path C:\Program Files (x86)\Microsoft SQL Server\100\DTS\Tasks\. Refer screenshot #8.
Verified that the DLL was not present in the GAC folder C:\windows\assembly. Refer screenshot #9.
Created a new SSIS package. On the SSIS package's Control Flow tab's tool box, right-clicked on the section Control Flow Items and selected Choose Items.... Refer screenshot #10.
On the Choose Toolbox Items, selected the SSIS Control Flow Items tab and selected the control HTTP Task. Refer screnshot #11.
Tried to drag and drop the task on to the Control Flow tab and received the same error as shown in the question. Refer screenshot #12. So the above steps described how to simulate the issue. Now, the following steps describe how to fix it.
Now, I went back to the Class library project and clicked on the Properties. This time I signed the project with Strong Name Key. Refer screenshot #13.
Verified that the strong name key file was added to the project. Refer screenshot #14.
Built the project. This time the DLL was successfully added to the GAC. Refer screenshot #15.
Verified that the DLL was correctly copied to the path C:\Program Files (x86)\Microsoft SQL Server\100\DTS\Tasks\. Refer screenshot #8.
Verified that the DLL was present in the GAC folder C:\windows\assembly. Refer screenshot #16.
On the SSIS package, deleted the control HTTP Task from Control Flow Items section in the Toolbox. Refer screenshot #17.
Repeated the steps #9 and #10 to add the task again to the toolbox.
Dragged and dropped the task on to the Control Flow tab and the task appeared correctly. There were no errors this time. Refer screenshot #18.

Hope that helps.

C# Class Code:

using Microsoft.SqlServer.Dts.Runtime;

namespace HttpTask
{
    [DtsTask(
        DisplayName = "HTTP Task",
        TaskContact = "Iain Elder",
        RequiredProductLevel = DTSProductLevel.None
    )]
    public class HttpTask : Task
    {
        public string LocalPath { get; set; }
        public string Connection { get; set; }
        public bool OverwriteDestination { get; set; }

        public DTSExecResult Execute(Connections connections,
            VariableDispenser dispenser, IDTSComponentEvents events,
            IDTSLogging log, object transaction)
        {
            HttpClientConnection http = AcquireHttpConnection(connections);
            http.DownloadFile(this.LocalPath, this.OverwriteDestination);
            return DTSExecResult.Success;
        }

        private HttpClientConnection AcquireHttpConnection(Connections connections)
        {
            ConnectionManager cm = connections[this.Connection];
            object nativeConnection = cm.AcquireConnection(null);
            return new HttpClientConnection(nativeConnection);
        }
    }
}

Post-build event command line:

"C:\Program Files (x86)\Microsoft SDKs\Windows\v7.0A\Bin\gacutil.exe"
/if "$(TargetPath)"
copy $(TargetFileName)
"C:\Program Files (x86)\Microsoft SQL Server\100\DTS\Tasks\"

Screenshot #1:

Screenshot #2:

Screenshot #3:

Screenshot #4:

Screenshot #5:

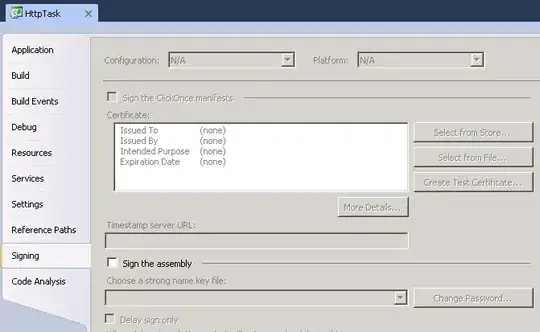

Screenshot #6:

Screenshot #7:

Screenshot #8:

Screenshot #9:

Screenshot #10:

Screenshot #11:

Screenshot #12:

Screenshot #13:

Screenshot #14:

Screenshot #15:

Screenshot #16:

Screenshot #17:

Screenshot #18:

Thanks, Siva. The MSDN links are useful as a reference but didn't give me a solution to my problem. The blog about developing an custom control flow task makes no mention of signing the package as part of deployment. Please see my edit for what I tried next. — Iain Samuel McLean Elder, Jul 14 '11 at 16:24
