I am trying to visualize the trajectory of multiple participants in a virtual room using R. I have a participant entering from the right (black square) and moving toward the left, where there is an exit door (red square). Sometimes there is an obstacle right in the middle of the room (circle), and the participant goes around it. To visualize multiple participants’ trajectories on the same graph (i.e., multiple lines), I have used the function plot to set up the plot itself (and the first line) and then I have used the function lines to add other trajectories after that. Below you can see an example with two lines; in the experiment, I have many more (as now I have collected data from about 20 participants.)

library(shape)
# black line
pos_x <- c(5.04,4.68,4.39,4.09,3.73,3.37,3.07,2.77,2.47,2.11)
pos_z <- c(0.74,0.69,0.64,0.60,0.56,0.52,0.50,0.50,0.50,0.51)
df1 <- cbind.data.frame(pos_x,pos_z)
x.2 <- df1$pos_x
z.2 <- df1$pos_z
plot(x.2,z.2,type="l", xlim=range(x.2), ylim=c(-1,3.5), xlab="x", ylab="z", main = "Two trajectories")
filledrectangle(wx = 0.2, wy = 0.2,col = "black", mid = c(5.16, 1), angle = 0)
filledrectangle(wx = 0.2, wy = 0.2,col = "red", mid = c(2, 1), angle = 0)
plotcircle(mid = c(3.4, 1), r = 0.05)

# red line
pos_x <- c(5.14,4.84,4.24,3.64,3.34,2.74,2.15)
pos_z <- c(0.17,0.13,0.01,-0.2,0.01,0.10,0.17)
df2 <- cbind.data.frame(pos_x,pos_z)
x.3 <- df2$pos_x
z.3 <- df2$pos_z
lines(x.3, z.3, xlim=range(x.3), ylim=c(-1,3.5), pch=16, col="red")

two trajectories

What I would like to do now is to find the average between these two lines. Ideally, I would like to be able to average multiple lines and add an interval for the standard deviation.

The first thing I have tried is to build an interpolation; the problem is that the start and end point are different, so I cannot average the points:

plot(x.2, z.2, xlim=range(x.2), ylim=c(-1,3.5), xlab="x", ylab="z", main = "Interpolation")
points(approx(x.2, z.2), col = 2, pch = "*")
points(x.3, z.3)
points(approx(x.3, z.3), col = 2, pch = "*")

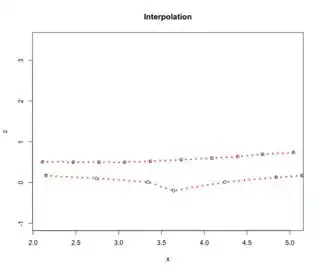

interpolation

I have then found a suggestion here: use the R library dtw.

I have looked up the library and the companion paper.

This is a typical example from the paper, in which "two non-overlapping windows" are extracted from a reference electrocardiogram. The dataset "aami3a" is a time series object.

library("dtw")
data("aami3a")
ref <- window(aami3a, start = 0, end = 2)
test <- window(aami3a, start = 2.7, end = 5)
alignment <- dtw(test, ref)
alignment$distance

The problem is that in all these examples the data is either structured as a time series object or the two lines are functions of a common matrix (see also the R quickstart example in the documentation and this other tutorial.)

How can I reorganize my data to make the function work? Or do you know of any other way to create an average?

Emy
  • 817
  • 1
  • 8
  • 25
  • Do you have a clear definition of what you mean by "average" here? Is it averaged by time? By proportion of time between start and finish? You don't have a time variable here, so presumably the latter? – Allan Cameron Dec 17 '20 at 13:17
  • I was thinking about averaging as a position on the z-dimension. For example, an average "endpoint" (near the red square) would be between 0.17 (red line) and 0.51 (black line). I thought that considering only the position coordinates would make things easier. Should I add a time variable? The data was recorded in Unity, so I do have timestamps, but the timestamps are going to be different from case to case. – Emy Dec 17 '20 at 13:25

1 Answers1

2

You could map equivalent points from the start to the end of each path (i.e. find the midpoint between the two lines at the start of each path, the midpoint between the two lines after a quarter of each path is complete, after a half, at the end, etc.

The way to do that is to use interpolation (via approx):

pos_x_a <- c(5.04,4.68,4.39,4.09,3.73,3.37,3.07,2.77,2.47,2.11)
pos_z_a <- c(0.74,0.69,0.64,0.60,0.56,0.52,0.50,0.50,0.50,0.51)

pos_x_b <- c(5.14,4.84,4.24,3.64,3.34,2.74,2.15)
pos_z_b <- c(0.17,0.13,0.01,-0.2,0.01,0.10,0.17)

pos_t_a <- seq(0, 1, length.out = length(pos_x_a))
pos_t_b <- seq(0, 1, length.out = length(pos_x_b))

a_x <- approx(pos_t_a, pos_x_a, seq(0, 1, 0.01))$y
a_y <- approx(pos_t_a, pos_z_a, seq(0, 1, 0.01))$y
b_x <- approx(pos_t_b, pos_x_b, seq(0, 1, 0.01))$y
b_y <- approx(pos_t_b, pos_z_b, seq(0, 1, 0.01))$y

plot(a_x, a_y, type = "l", ylim = c(-1, 3))
lines(b_x, b_y, col = "red")
lines((a_x + b_x)/2, (a_y + b_y)/2, col = "blue", lty = 2)

enter image description here

We get a better idea of how this averaging has occurred by joining the points on each line that were used to get the average:

for(i in seq_along(a_x)) segments(a_x[i], a_y[i], b_x[i], b_y[i], col = "gray")

enter image description here

Allan Cameron
  • 147,086
  • 7
  • 49
  • 87
  • Thank you Allan, this is a great solution! To average multiple lines, I can just add the additional points up and average them, right? Let's say I have a third trajectory dataset, c. That would be `lines((a_x + b_x + c_x)/3, (a_y + b_y + c_y)/3)` – Emy Dec 17 '20 at 13:48
