how to write a keras custom loss function when you need the input value to calculate loss?

Question

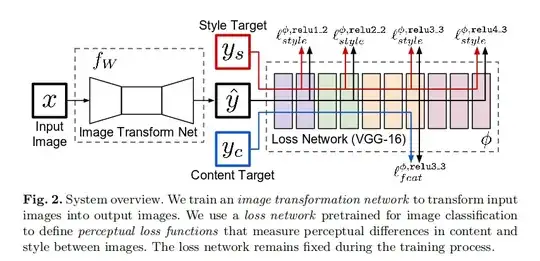

I'm trying to duplicate a fast style transfer paper (see diagram above) using the method described in keras built-in training and evaluation loops

I'm having problems understanding how to do this with a custom loss class (see below).

In order to calculate the loss components, I need the following:

• y_hat, the generated image to get

(generated_content_features, generated_style_features) = VGG(y_hat)
generated_style_gram = [ utils.gram(value) for value in generated_style_features ]

• target_style_gram which is static so I can derive once from target_style_features and cache, (_,target_style_features) = VGG(y_s)
• x, the InputImage (same as y_c ContentTarget) to get (target_content_features, _) = VGG(x)

I find that I'm monkey-patching a whole lot of stuff in the loss class, tf.keras.losses.Loss, in order to derive these values and ultimately perform a loss calculation. This is particularly true of the target_content_features which requires the input image, something that I passed in through y_true, but that is obviously a hack

y_pred = generated_image # y_hat from diagram, shape=(b,256,256,3)
y_true = x # hack: access the input image here

lossFn = PerceptualLosses_Loss(VGG, target_style_gram)
loss = lossFn(y_true, y_pred)

class PerceptualLosses_Loss(tf.losses.Loss):
  name="PerceptualLosses_Loss"
  reduction=tf.keras.losses.Reduction.AUTO
  RGB_MEAN_NORMAL_VGG = tf.constant( [0.48501961, 0.45795686, 0.40760392], dtype=tf.float32)

  def __init__(self, loss_network, target_style_gram, loss_weights=None):
    super(PerceptualLosses_Loss, self).__init__( name=self.name, reduction=self.reduction )
    self.target_style_gram = target_style_gram # repeated in y_true
    print("PerceptualLosses_Loss init()", type(target_style_gram), type(self.target_style_gram))
    self.VGG = loss_network

  def call(self, y_true, y_pred):

    b,h,w,c = y_pred.shape
    #???: y_pred.shape=(None, 256,256,3), need batch dim for utils.gram(value)
    generated_batch = tf.reshape(y_pred, (BATCH_SIZE,h,w,c) )

    # generated_batch: expecting domain=(+-int), mean centered
    generated_batch = tf.nn.tanh(generated_batch) # domain=(-1.,1.), mean centered

    # reverse VGG mean_center
    generated_batch = tf.add( generated_batch, self.RGB_MEAN_NORMAL_VGG) # domain=(0.,1.)
    generated_batch_BGR_centered = tf.keras.applications.vgg19.preprocess_input(generated_batch*255.)/255.
    generated_content_features, generated_style_features = self.VGG( generated_batch_BGR_centered, preprocess=False )
    generated_style_gram = [ utils.gram(value)  for value in generated_style_features ]  # list

    y_pred = generated_content_features + generated_style_gram
    # print("PerceptualLosses_Loss: y_pred, output_shapes=", type(y_pred), [v.shape for v in y_pred])
    # PerceptualLosses_Loss: y_pred, output_shapes= [
    #   TensorShape([4, 16, 16, 512]),
    #   TensorShape([4, 64, 64]),
    #   TensorShape([4, 128, 128]),
    #   TensorShape([4, 256, 256]),
    #   TensorShape([4, 512, 512]),
    #   TensorShape([4, 512, 512])
    # ]

    if tf.is_tensor(y_true):
      # print("detect y_true is image", type(y_true), y_true.shape)
      x_train = y_true
      x_train_BGR_centered = tf.keras.applications.vgg19.preprocess_input(x_train*255.)/255.
      target_content_features, _ = self.VGG(x_train_BGR_centered, preprocess=False )
      # ???: target_content_features[0].shape=(None, None, None, 512), should be shape=(4, 16, 16, 512)
      target_content_features = [tf.reshape(v, generated_content_features[i].shape) for i,v in enumerate(target_content_features)]
    elif isinstance(y_true, tuple):
      print("detect y_true is tuple(target_content_features + self.target_style_gram)", y_true[0].shape)
      target_content_features = y_true[:len(generated_content_features)]
      if self.target_style_gram is None:
        self.target_style_gram = y_true[len(generated_content_features):]
    else:
      assert False, "unexpected result for y_true"

    # losses = tf.keras.losses.MSE(y_true, y_pred)
    def batch_reduce_sum(y_true, y_pred, weight, name):
      losses = tf.zeros(BATCH_SIZE)
      for a,b in zip(y_true, y_pred):
        # batch_reduce_sum()
        loss = tf.keras.losses.MSE(a,b)
        loss = tf.reduce_sum(loss, axis=[i for i in range(1,len(loss.shape))] )
        losses = tf.add(losses, loss)
      return tf.multiply(losses, weight, name="{}_loss".format(name)) # shape=(BATCH_SIZE,)

    c_loss = batch_reduce_sum(target_content_features, generated_content_features, CONTENT_WEIGHT, 'content_loss')
    s_loss = batch_reduce_sum(self.target_style_gram, generated_style_gram, STYLE_WEIGHT, 'style_loss')
    return (c_loss, s_loss)

I also tried to pre-calculate y_true in the tf.data.Dataset, but while it worked fine under eager execution, it caused an error during model.fit()

xy_true_Dataset = tf.data.Dataset.from_generator(
    xyGenerator_y_true(image_ds, VGG, target_style_gram),
    output_types=(tf.float32, (tf.float32,  tf.float32,tf.float32,tf.float32,tf.float32,tf.float32) ),
    output_shapes=(
      (256,256,3),
      ( (16, 16, 512), (64, 64), (128, 128), (256, 256), (512, 512), (512, 512))
    ),
  )

# eager execution, y_true: <class 'tuple'> [TensorShape([4, 16, 16, 512]), TensorShape([4, 64, 64]), TensorShape([4, 128, 128]), TensorShape([4, 256, 256]), TensorShape([4, 512, 512]), TensorShape([4, 512, 512])]
# model.fit(), y_true: <class 'tensorflow.python.framework.ops.Tensor'> (None, None, None, None)

ValueError: Error when checking model target: the list of Numpy arrays that you are passing to your model is not the size the model expected. Expected to see 1 array(s), for inputs ['output_1'] but instead got the following list of 6 arrays: [<tf.Tensor 'args_1:0' shape=(None, 16, 16, 512) dtype=float32>, <tf.Tensor 'args_2:0' shape=(None, 64, 64) dtype=float32>, <tf.Tensor 'args_3:0' shape=(None, 128, 128) dtype=float32>, <tf.Tensor 'arg...

Do I have the complete wrong approach to this problem?

Answer 1

Since you didn't show the model, I'm not very sure about the problem. But you can try some of the followings:

1. You said:

I also tried to pre-calculate y_true in the tf.data.Dataset, but while it worked fine under eager execution, it caused an error during model.fit()

You can set "True" for eagar execution while compiling the model, like: model.compile(..., run_eagerly=True)

2. The return error said you passed a wrong shape to "output_1". Use model.summary() to see the whole model and find which one is "output_1". Then check the model.

3. If you want to use other parameters for loss function, one can do something like:

def other_parameters(para1):
    def loss_fn(y_true, y_pred):
        # just an example
        return y_true - para1*y_pred
    # Don't forget to return "loss_fn"
    return loss_fn

while compile the model, do model.compile(..., loss=other_parameters(para1)). Or you can define the class of the loss:

class CustomMSE(keras.losses.Loss):
    def __init__(self, regularization_factor=0.1, name="custom_mse"):
        super().__init__(name=name)
        self.regularization_factor = regularization_factor

    def call(self, y_true, y_pred):
        mse = tf.math.reduce_mean(tf.square(y_true - y_pred))
        reg = tf.math.reduce_mean(tf.square(0.5 - y_pred))
        return mse + reg * self.regularization_factor
...
model.compile(optimizer=keras.optimizers.Adam(), loss=CustomMSE(0.2))
...
model.fit(...)

More details, see here: Keras: Training and evaluation with the built-in methods, read Custom losses and Handling losses and metrics that don't fit the standard signature. Note that sometimes you may need to write your own training loop, then you can see this and this.

Hope these can help you.
