I have a ScriptableObject script called Level, inside the level script I have a List of GameObjects and a bool variable called introduceNewEnemies.
What i'm trying to do is that: I want to enable that List of gameobjects when the bool variable is on and Hide/Gray out (we can't add elements to it) it when its off using Unity custom inspector methods or Property drawers. Is it that hard to do?
Best approach is a custom attribute. I'll start by showing the end result:

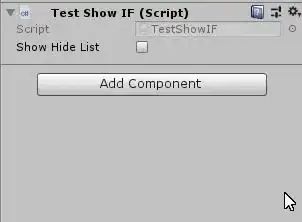

Using a field to hide/show another field:
public bool showHideList = false;
[ShowIf(ActionOnConditionFail.DontDraw, ConditionOperator.And, nameof(showHideList))]
public string aField = "item 1";

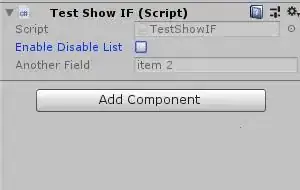

Using a field to enable/disable another field:
public bool enableDisableList = false;
[ShowIf(ActionOnConditionFail.JustDisable, ConditionOperator.And,
nameof(enableDisableList))]
public string anotherField = "item 2";
Using a method to get a condition value:
[ShowIf(ActionOnConditionFail.JustDisable, ConditionOperator.And,nameof(CalculateIsEnabled))]
public string yetAnotherField = "one more"; public
bool CalculateIsEnabled()
{
return true;
}
Using multiple conditions on the same field:
public bool condition1;
public bool condition2;
[ShowIf(ActionOnConditionFail.JustDisable, ConditionOperator.And, nameof(condition1),
nameof(condition2))]
public string oneLastField= "last field";
Define options for allowing mutiple conditions at once:
public enum ConditionOperator
{
// A field is visible/enabled only if all conditions are true.
And,
// A field is visible/enabled if at least ONE condition is true.
Or,
}
Define how the field is drawn if the condition fails:
public enum ActionOnConditionFail
{
// If condition(s) are false, don't draw the field at all.
DontDraw,
// If condition(s) are false, just set the field as disabled.
JustDisable,
}
Now create a custom attribute class, to hold data about the condition:
using System;
using UnityEngine;
[AttributeUsage(AttributeTargets.Field, AllowMultiple = false, Inherited = true)]
public class ShowIfAttribute : PropertyAttribute
{
public ActionOnConditionFail Action {get;private set;}
public ConditionOperator Operator {get;private set;}
public string[] Conditions {get;private set;}
public ShowIfAttribute(ActionOnConditionFail action, ConditionOperator conditionOperator, params string[] conditions)
{
Action = action;
Operator = conditionOperator;
Conditions = conditions;
}
}
The meaty part where we tell unity how to handle fields with ShowIfAttribute, this Drawer script needs to be under any 'Editor' folder:
using System.Reflection;
using UnityEditor;
using System.Collections.Generic;
using System;
using System.Linq;
using UnityEngine;
[CustomPropertyDrawer(typeof(ShowIfAttribute), true)]
public class ShowIfAttributeDrawer : PropertyDrawer
{
#region Reflection helpers.
private static MethodInfo GetMethod(object target, string methodName)
{
return GetAllMethods(target, m => m.Name.Equals(methodName,
StringComparison.InvariantCulture)).FirstOrDefault();
}
private static FieldInfo GetField(object target, string fieldName)
{
return GetAllFields(target, f => f.Name.Equals(fieldName,
StringComparison.InvariantCulture)).FirstOrDefault();
}
private static IEnumerable<FieldInfo> GetAllFields(object target, Func<FieldInfo,
bool> predicate)
{
List<Type> types = new List<Type>()
{
target.GetType()
};
while (types.Last().BaseType != null)
{
types.Add(types.Last().BaseType);
}
for (int i = types.Count - 1; i >= 0; i--)
{
IEnumerable<FieldInfo> fieldInfos = types[i]
.GetFields(BindingFlags.Instance | BindingFlags.Static |
BindingFlags.NonPublic | BindingFlags.Public | BindingFlags.DeclaredOnly)
.Where(predicate);
foreach (var fieldInfo in fieldInfos)
{
yield return fieldInfo;
}
}
}
private static IEnumerable<MethodInfo> GetAllMethods(object target,
Func<MethodInfo, bool> predicate)
{
IEnumerable<MethodInfo> methodInfos = target.GetType()
.GetMethods(BindingFlags.Instance | BindingFlags.Static |
BindingFlags.NonPublic | BindingFlags.Public)
.Where(predicate);
return methodInfos;
}
#endregion
private bool MeetsConditions(SerializedProperty property)
{
var showIfAttribute = this.attribute as ShowIfAttribute;
var target = property.serializedObject.targetObject;
List<bool> conditionValues = new List<bool>();
foreach (var condition in showIfAttribute.Conditions)
{
FieldInfo conditionField = GetField(target, condition);
if (conditionField != null &&
conditionField.FieldType == typeof(bool))
{
conditionValues.Add((bool)conditionField.GetValue(target));
}
MethodInfo conditionMethod = GetMethod(target, condition);
if (conditionMethod != null &&
conditionMethod.ReturnType == typeof(bool) &&
conditionMethod.GetParameters().Length == 0)
{
conditionValues.Add((bool)conditionMethod.Invoke(target, null));
}
}
if (conditionValues.Count > 0)
{
bool met;
if (showIfAttribute.Operator == ConditionOperator.And)
{
met = true;
foreach (var value in conditionValues)
{
met = met && value;
}
}
else
{
met = false;
foreach (var value in conditionValues)
{
met = met || value;
}
}
return met;
}
else
{
Debug.LogError("Invalid boolean condition fields or methods used!");
return true;
}
}
public override float GetPropertyHeight(SerializedProperty property, GUIContent
label)
{
// Calcluate the property height, if we don't meet the condition and the draw
mode is DontDraw, then height will be 0.
bool meetsCondition = MeetsConditions(property);
var showIfAttribute = this.attribute as ShowIfAttribute;
if (!meetsCondition && showIfAttribute.Action ==
ActionOnConditionFail.DontDraw)
return 0;
return base.GetPropertyHeight(property, label);
}
public override void OnGUI(Rect position, SerializedProperty property, GUIContent
label)
{
bool meetsCondition = MeetsConditions(property);
// Early out, if conditions met, draw and go.
if (meetsCondition)
{
EditorGUI.PropertyField(position, property, label, true);
return;
}
var showIfAttribute = this.attribute as ShowIfAttribute;
if(showIfAttribute.Action == ActionOnConditionFail.DontDraw)
{
return;
}
else if (showIfAttribute.Action == ActionOnConditionFail.JustDisable)
{
EditorGUI.BeginDisabledGroup(true);
EditorGUI.PropertyField(position, property, label, true);
EditorGUI.EndDisabledGroup();
}
}
}
It is not possible to gray out the entire list without writing a custom editor window. In the Unity source code, you can see that attributes are never applied to arrays.
In PropertyHandler.cs within the method HandleDrawnType, beginning on line 102:
// Use PropertyDrawer on array elements, not on array itself.
// If there's a PropertyAttribute on an array, we want to apply it to the individual array elements instead.
// This is the only convenient way we can let the user apply PropertyDrawer attributes to elements inside an array.
if (propertyType != null && propertyType.IsArrayOrList())
return;
The class used internally to display lists is UnityEditorInternal.ReorderableList. This article shows how it can be customized. We can use this to force fields marked with our custom attribute to be grayed out. Here is my attempt, written for any Unity object:
using UnityEditor;
using UnityEditorInternal;
using UnityEngine;
using System;
using System.Reflection;
using System.Collections.Generic;
[CustomEditor(typeof(UnityEngine.Object), true), CanEditMultipleObjects]
public class FullyDisabledListEditor : Editor
{
Dictionary<string, ReorderableList> _disabledLists;
private void OnEnable()
{
if(_disabledLists == null) _disabledLists = new();
var fields = serializedObject.targetObject.GetType().GetFields(BindingFlags.Instance | BindingFlags.NonPublic | BindingFlags.Public);
foreach(FieldInfo field in fields)
{
if(!IsArrayOrList(field.FieldType)) continue;
IEnumerator<CustomAttributeData> attributes = field.CustomAttributes.GetEnumerator();
while (attributes.MoveNext())
{
if(attributes.Current.AttributeType != typeof(NotEditableAttribute)) continue;
CreateDisabledList(field.Name);
}
}
}
private bool IsArrayOrList(Type listType)
{
if (listType.IsArray)
return true;
else if (listType.IsGenericType && listType.GetGenericTypeDefinition() == typeof(List<>))
return true;
return false;
}
private void CreateDisabledList(string fieldName)
{
var listProperty = serializedObject.FindProperty(fieldName);
var list = new ReorderableList(
serializedObject,
listProperty,
false, //this setting allows you to rearrange the items
true, //this setting displays a header label
false, //this setting removes the 'add elements' button
false //this setting removes the 'remove elements' button
);
list.drawElementCallback = (Rect rect, int index, bool isActive, bool isFocused) =>
{
var property = list.serializedProperty.GetArrayElementAtIndex(index);
rect.y += 2; //for some reason fields are vertically off center by default
EditorGUI.PropertyField(rect, property);
};
list.drawHeaderCallback = (Rect rect) => {
EditorGUI.LabelField(rect, listProperty.displayName);
};
_disabledLists.Add(fieldName, list);
}
public override void OnInspectorGUI()
{
serializedObject.Update();
SerializedProperty property = serializedObject.GetIterator();
while (property.NextVisible(true))
HandlePropertyDisplay(property);
serializedObject.ApplyModifiedProperties();
}
private void HandlePropertyDisplay(SerializedProperty property)
{
//skip redrawing child properties
if(property.propertyPath.Contains('.', StringComparison.Ordinal)) return;
//gray out the script, as it normally is
if(property.propertyPath.Equals("m_Script", StringComparison.Ordinal))
{
ShowDisabledProperty(property);
return;
}
//gray out the arrays we marked
if(_disabledLists.ContainsKey(property.name))
{
_disabledLists[property.name].DoLayoutList();
return;
}
//everything else is shown normally (non-array fields will be grayed out by the attribute drawer)
EditorGUILayout.PropertyField(property);
}
private void ShowDisabledProperty(SerializedProperty property)
{
EditorGUI.BeginDisabledGroup(true);
EditorGUILayout.PropertyField(property, true);
EditorGUI.EndDisabledGroup();
}
}
Unfortunately, I couldn't use the attribute written by ChoopTwisk in their answer. I didn't figure out a way to check the result of the conditions from within the editor class. In my example, any field marked with [NotEditable] will be permanently grayed out. If you want to use that, the code for it is below. I found it here.
using UnityEditor;
using UnityEngine;
public class NotEditableAttribute : PropertyAttribute { }
[CustomPropertyDrawer(typeof(NotEditableAttribute))]
public sealed class NotEditableDrawer : PropertyDrawer
{
public override float GetPropertyHeight(SerializedProperty property, GUIContent label)
{
return EditorGUI.GetPropertyHeight(property, label, true);
}
public override void OnGUI(Rect position, SerializedProperty property, GUIContent label)
{
EditorGUI.BeginDisabledGroup(true);
EditorGUI.PropertyField(position, property, label, true);
EditorGUI.EndDisabledGroup();
}
}
public class Test : MonoBehaviour
{
[SerializeField]
bool openFlag = false;
bool prevOpenFlag = false;
void Update()
{
if(prevOpenFlag != openFlag)
{
if (openFlag == true)
{
Open();
prevOpenFlag = openFlag;
}else
{
Close();
prevOpenFlag = openFlag;
}
}
}
