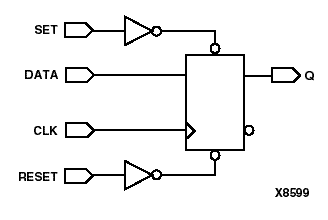

In logic design convention, a clock input port is designated by an embedded triangle while an active low port has a bubble as shown in this d-flip-flop example.

Now the bubbled I/O's I can do (if somewhat counter-intuitively) using arrowhead and arrowtail. But I can't see how to make an arrowhead extend just into the port. Ideally, this would be a characteristic of the port rather than the connecting arrow but that is a lesser concern.

albert
  • 8,285
  • 3
  • 19
  • 32
Eric Edwards
  • 19
  • 2
  • You may do this in a way similar to this: https://stackoverflow.com/questions/58066677/in-graphviz-how-do-i-add-a-shape-in-the-middle-of-an-edge/58094960#58094960 – Dany Oct 11 '19 at 05:38
