I have been working on procedural generating levels. I have created boxes who have a spawn depending on their opening.
If a box has a left spawn. the left spawn will know that it needs to create at least 1 door on the right. This seems to be working, but for some reason, after a while, the rooms start stacking on top of each other. even tho my code does not allow this?
Could this be because the walls are not in the perfect symmetry of eachother? Since I want to have broader and different kind of levels I thought having only the spawn points align would be enough?

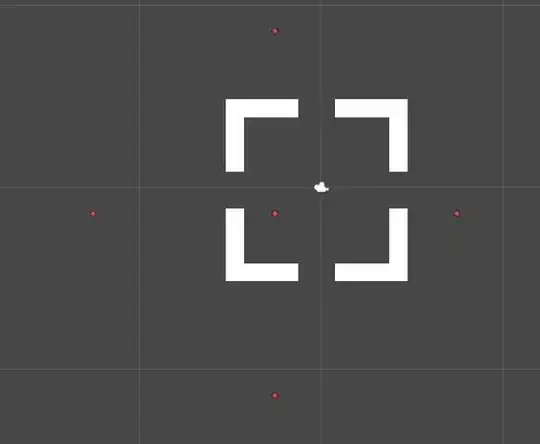

This is how the level starts 4 different pathways.
Still going good
Still good
As you can see every entrance from the Starting floor have been blocked.
After this they keep stacking op top of eachother giving no end to the generation of levels.
Room Spawner
public class RoomSpawner : MonoBehaviour
{
public int openingDirection;
// 1 --> need bottom door
// 2 --> need top door
// 3 --> need left door
// 4 --> need right door
private RoomTemplates templates;
private int rand;
private bool spawned = false;
void Start(){
templates = GameObject.FindGameObjectWithTag("Rooms").GetComponent<RoomTemplates>();
Invoke("Spawn", 0.5f);
}
void Spawn(){
if(spawned == false){
if(openingDirection == 1){
// Need to spawn a room with a BOTTOM door.
rand = Random.Range(0, templates.bottomRooms.Length);
Instantiate(templates.bottomRooms[rand], transform.position, templates.bottomRooms[rand].transform.rotation);
} else if(openingDirection == 2){
// Need to spawn a room with a TOP door.
rand = Random.Range(0, templates.topRooms.Length);
Instantiate(templates.topRooms[rand], transform.position, templates.topRooms[rand].transform.rotation);
} else if(openingDirection == 3){
// Need to spawn a room with a LEFT door.
rand = Random.Range(0, templates.leftRooms.Length);
Instantiate(templates.leftRooms[rand], transform.position, templates.leftRooms[rand].transform.rotation);
} else if(openingDirection == 4){
// Need to spawn a room with a RIGHT door.
rand = Random.Range(0, templates.rightRooms.Length);
Instantiate(templates.rightRooms[rand], transform.position, templates.rightRooms[rand].transform.rotation);
}
spawned = true;
}
void OnTriggerEnter2D(Collider2D other){
if(other.CompareTag("SpawnPoint")){
if(other.GetComponent<RoomSpawner>().spawned == false && spawned == false){
// spawns walls blocking off any opening !
Instantiate(templates.closedRoom, transform.position, Quaternion.identity);
Destroy(gameObject);
}
spawned = true;
}
}
}
}
Destroyer tag
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class Destroyer : MonoBehaviour
{
void OnTriggerEnter2D(Collider2D other ){
Destroy(other.gameObject);
}
}
Roomtemplates
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class RoomTemplates : MonoBehaviour
{
public GameObject[] bottomRooms;
public GameObject[] topRooms;
public GameObject[] leftRooms;
public GameObject[] rightRooms;
public GameObject closedRoom;
public List<GameObject> rooms;
}
