How to show images with indirect link/URL using Glide

Question

I am trying to download blog features images form a WordPress blog page and then load them later.

Right now, every time the user scrolls down and up the image load again and again. Any idea...plzzz..I tried many solutions, for example, this one: Preload multiple images with Glide

But, it didn't work.

I am using implementation 'com.github.bumptech.glide:glide:3.7.0'

And this is my code:

RecyclerViewAdapter

public void getthumbnail(String imageurl, final ImageView imageView, final int position){

    ServiceWrapper serviceWrapper = new ServiceWrapper(null);
    Call<GetThumbnail> call = serviceWrapper.getThumbnailCall(imageurl);
    call.enqueue(new Callback<GetThumbnail>() {


        @Override
        public void onResponse(Call<GetThumbnail> call, Response<GetThumbnail> response) {
            if (response.body() != null && response.isSuccessful()) {
                try {

                    if (response.body().getMediaDetails()!=null){

                       // Log.e("recycler adapter", " image is here--  " + response.body().getMediaDetails().getSizes().getThumbnail().getSourceUrl());
                       // Log.e("Full IMG SIZE - ", " THIS IS FULL IMAGE URL--  " + response.body().getMediaDetails().getSizes().getFull().getSourceUrl());

                        imagepath.add(position, response.body().getMediaDetails().getSizes().getFull().getSourceUrl());


                        Glide.with(mContext)
                                .load(response.body().getMediaDetails().getSizes().getFull().getSourceUrl())
                                .diskCacheStrategy(DiskCacheStrategy.SOURCE)
                                .into(imageView);

                    }else {

                    }
                }catch (Exception e){
                   // Log.e("adapter", "fail not media tag "+ e.toString());
                }

            }
        }

        @Override
        public void onFailure(Call<GetThumbnail> call, Throwable t) {

          //  Log.e("adapter", " faile  image "+t.toString());
        }
    });

}

UPDATE I found this code and I put it on top of the other Glide code but it didn't work:

Glide.with(mContext)
                                .load(response.body().getMediaDetails().getSizes().getFull().getSourceUrl())
                                .downloadOnly(new SimpleTarget<File>() {
                                    @Override
                                    public void onResourceReady(File resource, GlideAnimation<? super File> glideAnimation) {

                                    }
                                });

UPDATE: Now I used this code and it doesnt download the images faster:

Glide.with(mContext)
                                .load(response.body().getMediaDetails().getSizes().getFull().getSourceUrl())
                                .downloadOnly(new SimpleTarget<File>() {
                                    @Override
                                    public void onResourceReady(File resource, GlideAnimation<? super File> glideAnimation) {

                                        Glide.with(mContext)
                                                .load(response.body().getMediaDetails().getSizes().getFull().getSourceUrl())
                                                .diskCacheStrategy(DiskCacheStrategy.SOURCE)
                                                .into(imageView);
                                    }
                                });

Here is the complete ViewAdapter.java

import android.content.Context;
import android.content.Intent;
import android.os.Build;
import android.support.v7.widget.CardView;
import android.support.v7.widget.LinearLayoutManager;
import android.support.v7.widget.RecyclerView;
import android.text.Html;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ImageView;
import android.widget.TextView;

import com.bumptech.glide.Glide;
import com.bumptech.glide.load.engine.DiskCacheStrategy;
import com.bumptech.glide.request.animation.GlideAnimation;
import com.bumptech.glide.request.target.SimpleTarget;

import java.io.File;
import java.util.ArrayList;
import java.util.List;

import retrofit2.Call;
import retrofit2.Callback;
import retrofit2.Response;

public class RecyclerViewAdapter extends
RecyclerView.Adapter<RecyclerView.ViewHolder> {

private ArrayList<Model> dataset;
private Context mContext;
private ArrayList<Model> list;
private RecyclerViewAdapter adapter;
private RecyclerView recyclerView;
private LinearLayoutManager mLayoutManager;
public static List<WPPost> mListPost;
ArrayList<String> imagepath = new ArrayList<>();
private String baseURL = "https://www.myfitbytes.com/";

public RecyclerViewAdapter(ArrayList<Model> mlist, Context context) {
    this.dataset = mlist;
    this.mContext = context;
}

public static class ImageTypeViewHolder extends RecyclerView.ViewHolder{


    TextView title, subtitle, date;
    ImageView imageView;
    CardView cardview;

    public ImageTypeViewHolder(View itemView) {
        super(itemView);

        this.title = (TextView)  itemView.findViewById(R.id.title);
        //this.subtitle = (TextView) itemView.findViewById(R.id.subtitle);
        this.date = (TextView) itemView.findViewById(R.id.date);
        this.imageView = (ImageView) itemView.findViewById(R.id.Icon);
        this.cardview = (CardView) itemView.findViewById(R.id.cardview);
    }
}

@Override
public RecyclerView.ViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
    View view = LayoutInflater.from( parent.getContext()).inflate(R.layout.postdetails, parent, false);





    return new ImageTypeViewHolder(view) ;
}

@Override
public void onBindViewHolder(final RecyclerView.ViewHolder holder, final int position) {
    final Model object = dataset.get(position);
   // Log.d("RecyclerViewAdapter", "IMAGE="+object.Image);
    imagepath.add(position, "");

    if (Build.VERSION.SDK_INT >= 24)
    {
        //( (ImageTypeViewHolder) holder).subtitle.setText(Html.fromHtml(object.subtitle , Html.FROM_HTML_MODE_LEGACY));
        ( (ImageTypeViewHolder) holder).title.setText( Html.fromHtml(object.title , Html.FROM_HTML_MODE_LEGACY) );
        ( (ImageTypeViewHolder) holder).date.setText( Html.fromHtml(object.date , Html.FROM_HTML_MODE_LEGACY) );
    }
    else
    {
        //( (ImageTypeViewHolder) holder).subtitle.setText(Html.fromHtml(object.subtitle ));
        ( (ImageTypeViewHolder) holder).title.setText( Html.fromHtml(object.title ));
        ( (ImageTypeViewHolder) holder).date.setText( Html.fromHtml(object.date ));
    }


    ( (ImageTypeViewHolder) holder).imageView.setOnClickListener(new View.OnClickListener() {
        @Override
        public void onClick(View v) {
            Intent intent = new Intent(mContext, WPPostDetails.class);
            intent.putExtra("itemPosition", position);
            mContext.startActivity(intent);
        }
    });



    try {
        getthumbnail(object.Image, ( (ImageTypeViewHolder) holder).imageView, position);



    }catch (Exception e){
     //   Log.e("adapter ","failed to get image "+e.toString() );
    }
    /// dataset.get(position)



}


public void getthumbnail(String imageurl, final ImageView imageView, final int position){

    ServiceWrapper serviceWrapper = new ServiceWrapper(null);
    Call<GetThumbnail> call = serviceWrapper.getThumbnailCall(imageurl);
    call.enqueue(new Callback<GetThumbnail>() {


        @Override
        public void onResponse(Call<GetThumbnail> call, final Response<GetThumbnail> response) {
            if (response.body() != null && response.isSuccessful()) {
                try {

                    if (response.body().getMediaDetails()!=null){

                       // Log.e("recycler adapter", " image is here--  " + response.body().getMediaDetails().getSizes().getThumbnail().getSourceUrl());
                       // Log.e("Full IMG SIZE - ", " THIS IS FULL IMAGE URL--  " + response.body().getMediaDetails().getSizes().getFull().getSourceUrl());

                        imagepath.add(position, response.body().getMediaDetails().getSizes().getFull().getSourceUrl());

                        Glide.with(mContext)
                                .load(response.body().getMediaDetails().getSizes().getFull().getSourceUrl())
                                .downloadOnly(new SimpleTarget<File>() {
                                    @Override
                                    public void onResourceReady(File resource, GlideAnimation<? super File> glideAnimation) {

                                        Glide.with(mContext)
                                                .load(response.body().getMediaDetails().getSizes().getFull().getSourceUrl())
                                                .diskCacheStrategy(DiskCacheStrategy.SOURCE)
                                                .into(imageView);
                                    }
                                });


                    }else {

                    }
                }catch (Exception e){
                   // Log.e("adapter", "fail not media tag "+ e.toString());
                }

            }
        }

        @Override
        public void onFailure(Call<GetThumbnail> call, Throwable t) {

          //  Log.e("adapter", " faile  image "+t.toString());
        }
    });

}




@Override
public int getItemCount() {

    return dataset.size() ;
   }
 }

UPDATE So, now that I tried to update glide 3 to 4.x I am getting the following in error in build.gradle.

All com.android.support libraries must use the exact same version specification (mixing versions can lead to runtime crashes). Found versions 27.1.1, 27.1.0, 26.1.0. Examples include com.android.support:support-compat:27.1.1 and com.android.support:animated-vector-drawable:27.1.0 less... (⌘F1) There are some combinations of libraries, or tools and libraries, that are incompatible, or can lead to bugs. One such incompatibility is compiling with a version of the Android support libraries that is not the latest version (or in particular, a version lower than your targetSdkVersion).

And the code is:

apply plugin: 'com.android.application'

android {
compileSdkVersion 26
  defaultConfig {
    applicationId "com.myfitbytes"
    minSdkVersion 14
    targetSdkVersion 26
    versionCode 3
    versionName "3.0"
    testInstrumentationRunner
 "android.support.test.runner.AndroidJUnitRunner"
   }
    buildTypes {
     release {
         minifyEnabled false
         proguardFiles getDefaultProguardFile('proguard-android.txt'),
     'proguard-rules.pro'
    }
}

packagingOptions {
    exclude 'META-INF/DEPENDENCIES'
    exclude 'META-INF/LICENSE'
    exclude 'META-INF/LICENSE.txt'
    exclude 'META-INF/license.txt'
    exclude 'META-INF/NOTICE'
    exclude 'META-INF/NOTICE.txt'
    exclude 'META-INF/notice.txt'
    exclude 'META-INF/ASL2.0'
  }
 }

dependencies {
implementation fileTree(dir: 'libs', include: ['*.jar'])
implementation 'com.android.support:appcompat-v7:26.1.0'

implementation 'com.android.support.constraint:constraint-layout:1.1.3'
implementation 'com.android.support:design:26.1.0'
implementation 'com.android.support:support-v4:26.1.0'

//library for wordpress rest api
implementation 'com.android.support:cardview-v7:26.1.0'
implementation 'com.android.support:recyclerview-v7:26.0.0-beta2'
implementation 'com.google.code.gson:gson:2.6.2'
implementation 'com.squareup.retrofit2:retrofit:2.3.0'
implementation 'com.squareup.retrofit2:converter-gson:2.0.2'
implementation 'com.squareup.okhttp:okhttp:2.4.0'
implementation 'com.squareup.okhttp3:okhttp:2.0.2'
implementation 'com.squareup.okhttp3:logging-interceptor:3.9.1'

  //implementation 'com.github.bumptech.glide:glide:3.7.0'
implementation 'com.github.bumptech.glide:glide:4.8.0'
annotationProcessor 'com.github.bumptech.glide:compiler:4.8.0'


implementation 'com.android.volley:volley:1.0.0'

implementation 'org.ocpsoft.prettytime:prettytime:4.0.1.Final'

//Firebase
implementation 'com.google.firebase:firebase-core:16.0.4'
implementation 'com.google.firebase:firebase-messaging:17.3.3'

implementation 'org.apache.httpcomponents:httpcore:4.4.1'
//implementation 'org.apache.httpcomponents:httpclient:4.5.6'
//implementation group: 'org.apache.httpcomponents' , name: 'httpclient- android' , version: '4.3.5.1'

implementation files('libs/google-http-client-1.24.1.jar')
implementation files('libs/httpclient-4.5.3.jar')

//bottom nav
implementation 'com.aurelhubert:ahbottomnavigation:2.1.0'

//picasso to download image from url faster
implementation 'com.squareup.picasso:picasso:2.71828'

testImplementation 'junit:junit:4.12'
androidTestImplementation 'com.android.support.test:runner:1.0.2'
androidTestImplementation 'com.android.support.test.espresso:espresso-core:3.0.2'

 }

 apply plugin: 'com.google.gms.google-services'

And, this line is in red:

implementation 'com.android.support:appcompat-v7:26.1.0'

Answer 1

The loading delay problem and image item disposition comes from onBindViewHolder method where you call a webservice in it. Everytime a list item is appeared in scrolling, onBindViewHolder is called to initialize the view with correct values. So you should not call a webservice here at all (but in the code it is called everytime). As Glide creates a queue of requests, it guarantees that the image would be downloaded only one time because it caches them. Also it guarantees that the image would be loaded if the ImageView is in visible area of the RecyclerView in scrolling process.

On the other hand, reaching the image url in your case needs two level of webservice api-s. So we should combine Glide procedure and retrieving the image url procedure to reach the best performance. Using Glide-OkHttp3-Integration library, I have developed this two level of asynchronous calls which makes the Glide aware of your data flow.

• Note that you should clean and rebuild your project to create GlideApp class in compile time.

ViewAdapter.java

// some code blocks

@Override
public void onBindViewHolder(final RecyclerView.ViewHolder holder, final int position) {
    final Model object = dataset.get(position);

    if (Build.VERSION.SDK_INT >= 24) {
        // ( (ImageTypeViewHolder) holder).subtitle.setText(Html.fromHtml(object.subtitle , Html.FROM_HTML_MODE_LEGACY));
        ((ImageTypeViewHolder) holder).title.setText(Html.fromHtml(object.title , Html.FROM_HTML_MODE_LEGACY));
        ((ImageTypeViewHolder) holder).date.setText(Html.fromHtml(object.date , Html.FROM_HTML_MODE_LEGACY));
    } else {
        // ((ImageTypeViewHolder) holder).subtitle.setText(Html.fromHtml(object.subtitle));
        ((ImageTypeViewHolder) holder).title.setText(Html.fromHtml(object.title));
        ((ImageTypeViewHolder) holder).date.setText(Html.fromHtml(object.date));
    }


    ((ImageTypeViewHolder) holder).imageView.setOnClickListener(new View.OnClickListener() {
       @Override
       public void onClick(View v) {
           Intent intent = new Intent(mContext, WPPostDetails.class);
           intent.putExtra("itemPosition", position);
           mContext.startActivity(intent);
       }
    });

    JsonApiGlideUrl url = new JsonApiGlideUrl(object.Image);
    GlideApp.with(imageView.getContext())
         .load(url)
         .into(imageView);
}

// some code blocks

OkHttpAppGlideModule.java

import android.content.Context;
import android.support.annotation.NonNull;

import com.bumptech.glide.Glide;
import com.bumptech.glide.Registry;
import com.bumptech.glide.annotation.GlideModule;
import com.bumptech.glide.module.AppGlideModule;

import java.io.InputStream;

/**
 * Registers OkHttp related classes via Glide's annotation processor.
 *
 * <p>For Applications that depend on this library and include an
 * {@link AppGlideModule} and Glide's annotation processor, this class
 * will be automatically included.
 */
@GlideModule
public final class OkHttpAppGlideModule extends AppGlideModule {

    @Override
    public void registerComponents(@NonNull Context context, @NonNull Glide glide, @NonNull Registry registry) {
        registry.replace(JsonApiGlideUrl.class, InputStream.class, new OkHttpUrlLoader.Factory());
    }

    @Override
    public boolean isManifestParsingEnabled() {
        return false;
    }

}

JsonApiGlideUrl.java

import com.bumptech.glide.load.model.GlideUrl;
import com.bumptech.glide.load.model.Headers;

import java.net.URL;

public class JsonApiGlideUrl extends GlideUrl {

    public JsonApiGlideUrl(URL url) {
        super(url);
    }

    public JsonApiGlideUrl(String url) {
        super(url);
    }

    public JsonApiGlideUrl(URL url, Headers headers) {
        super(url, headers);
    }

    public JsonApiGlideUrl(String url, Headers headers) {
        super(url, headers);
    }

}

OkHttpUrlLoader.java

import android.support.annotation.NonNull;

import com.bumptech.glide.load.Options;
import com.bumptech.glide.load.model.ModelLoader;
import com.bumptech.glide.load.model.ModelLoaderFactory;
import com.bumptech.glide.load.model.MultiModelLoaderFactory;

import java.io.InputStream;

import okhttp3.Call;
import okhttp3.OkHttpClient;

/**
 * A simple model loader for fetching media over http/https using OkHttp.
 */
public class OkHttpUrlLoader implements ModelLoader<JsonApiGlideUrl, InputStream> {

    private final Call.Factory client;

    // Public API.
    @SuppressWarnings("WeakerAccess")
    public OkHttpUrlLoader(@NonNull Call.Factory client) {
        this.client = client;
    }

    @Override
    public boolean handles(@NonNull JsonApiGlideUrl url) {
        return true;
    }

    @Override
    public LoadData<InputStream> buildLoadData(@NonNull JsonApiGlideUrl model, int width, int height, @NonNull Options options) {
        return new LoadData<>(model, new OkHttpStreamFetcher(client, model));
    }

    /**
     * The default factory for {@link OkHttpUrlLoader}s.
     */
    // Public API.
    @SuppressWarnings("WeakerAccess")
    public static class Factory implements ModelLoaderFactory<JsonApiGlideUrl, InputStream> {

        private static volatile Call.Factory internalClient;
        private final Call.Factory client;

        private static Call.Factory getInternalClient() {
            if (internalClient == null) {
                synchronized (Factory.class) {
                    if (internalClient == null) {
                        internalClient = new OkHttpClient();
                    }
                }
            }
            return internalClient;
        }

        /**
         * Constructor for a new Factory that runs requests using a static singleton client.
         */
        public Factory() {
            this(getInternalClient());
        }

        /**
         * Constructor for a new Factory that runs requests using given client.
         *
         * @param client this is typically an instance of {@code OkHttpClient}.
         */
        public Factory(@NonNull Call.Factory client) {
            this.client = client;
        }

        @NonNull
        @Override
        public ModelLoader<JsonApiGlideUrl, InputStream> build(@NonNull MultiModelLoaderFactory multiFactory) {
            return new OkHttpUrlLoader(client);
        }

        @Override
        public void teardown() {
            // Do nothing, this instance doesn't own the client.
        }

    }

}

OkHttpStreamFetcher.java

import android.support.annotation.NonNull;
import android.support.annotation.Nullable;
import android.util.Log;

import com.bumptech.glide.Priority;
import com.bumptech.glide.load.DataSource;
import com.bumptech.glide.load.HttpException;
import com.bumptech.glide.load.data.DataFetcher;
import com.bumptech.glide.load.model.GlideUrl;
import com.bumptech.glide.util.ContentLengthInputStream;
import com.bumptech.glide.util.Preconditions;

import java.io.IOException;
import java.io.InputStream;
import java.util.Map;

import okhttp3.Call;
import okhttp3.Request;
import okhttp3.Response;
import okhttp3.ResponseBody;

/**
 * Fetches an {@link InputStream} using the okhttp library.
 */
public class OkHttpStreamFetcher implements DataFetcher<InputStream>, okhttp3.Callback {

    private static final String TAG = "OkHttpFetcher";
    private final Call.Factory client;
    private final JsonApiGlideUrl url;
    private OkHttpJsonApiFetcher okHttpJsonApiFetcher;
    private InputStream stream;
    private ResponseBody responseBody;
    private DataCallback<? super InputStream> callback;
    // call may be accessed on the main thread while the object is in use on other threads. All other
    // accesses to variables may occur on different threads, but only one at a time.
    private volatile Call call;

    // Public API.
    @SuppressWarnings("WeakerAccess")
    public OkHttpStreamFetcher(Call.Factory client, JsonApiGlideUrl url) {
        this.client = client;
        this.url = url;
    }

    @Override
    public void loadData(@NonNull Priority priority, @NonNull final DataCallback<? super InputStream> callback) {

        okHttpJsonApiFetcher = new OkHttpJsonApiFetcher(client, url);
        okHttpJsonApiFetcher.loadData(new DataCallback<GlideUrl>() {

            @Override
            public void onDataReady(@Nullable GlideUrl data) {
                Request.Builder requestBuilder = new Request.Builder().url(data.toStringUrl());
                for (Map.Entry<String, String> headerEntry : data.getHeaders().entrySet()) {
                    String key = headerEntry.getKey();
                    requestBuilder.addHeader(key, headerEntry.getValue());
                }
                Request request = requestBuilder.build();
                OkHttpStreamFetcher.this.callback = callback;

                call = client.newCall(request);
                call.enqueue(OkHttpStreamFetcher.this);
            }

            @Override
            public void onLoadFailed(@NonNull Exception e) {
                callback.onLoadFailed(e);
            }
        });
    }

    @Override
    public void onFailure(@NonNull Call call, @NonNull IOException e) {
        if (Log.isLoggable(TAG, Log.DEBUG)) {
            Log.d(TAG, "OkHttp failed to obtain result", e);
        }
        callback.onLoadFailed(e);
    }

    @Override
    public void onResponse(@NonNull Call call, @NonNull Response response) {
        responseBody = response.body();
        if (response.isSuccessful()) {
            long contentLength = Preconditions.checkNotNull(responseBody).contentLength();
            stream = ContentLengthInputStream.obtain(responseBody.byteStream(), contentLength);
            callback.onDataReady(stream);
        } else {
            callback.onLoadFailed(new HttpException(response.message(), response.code()));
        }
    }

    @Override
    public void cleanup() {
        okHttpJsonApiFetcher.cleanup();

        try {
            if (stream != null) {
                stream.close();
            }
        } catch (IOException e) {
            // Ignored
        }
        if (responseBody != null) {
            responseBody.close();
        }
        callback = null;
    }

    @Override
    public void cancel() {
        okHttpJsonApiFetcher.cancel();

        Call local = call;
        if (local != null) {
            local.cancel();
        }
    }

    @NonNull
    @Override
    public Class<InputStream> getDataClass() {
        return InputStream.class;
    }

    @NonNull
    @Override
    public DataSource getDataSource() {
        return DataSource.REMOTE;
    }

}

OkHttpJsonApiFetcher.java

import android.support.annotation.NonNull;
import android.util.Log;

import com.bumptech.glide.load.HttpException;
import com.bumptech.glide.load.data.DataFetcher;
import com.bumptech.glide.load.model.GlideUrl;

import java.io.IOException;
import java.io.InputStream;
import java.util.Map;

import okhttp3.Call;
import okhttp3.Request;
import okhttp3.Response;
import okhttp3.ResponseBody;

/**
 * Fetches an {@link InputStream} using the okhttp library.
 */
public class OkHttpJsonApiFetcher implements okhttp3.Callback {

    private static final String TAG = "OkHttpJsonApiFetcher";
    private final Call.Factory client;
    private final JsonApiGlideUrl url;
    private ResponseBody responseBody;
    private DataFetcher.DataCallback<? super GlideUrl> callback;
    // call may be accessed on the main thread while the object is in use on other threads. All other
    // accesses to variables may occur on different threads, but only one at a time.
    private volatile Call call;

    // Public API.
    @SuppressWarnings("WeakerAccess")
    public OkHttpJsonApiFetcher(Call.Factory client, JsonApiGlideUrl url) {
        this.client = client;
        this.url = url;
    }

    public void loadData(@NonNull final DataFetcher.DataCallback<? super GlideUrl> callback) {
        Request.Builder requestBuilder = new Request.Builder().get().url(url.toStringUrl());
        for (Map.Entry<String, String> headerEntry : url.getHeaders().entrySet()) {
            String key = headerEntry.getKey();
            requestBuilder.addHeader(key, headerEntry.getValue());
        }
        Request request = requestBuilder.build();
        this.callback = callback;

        call = client.newCall(request);
        call.enqueue(this);
    }

    @Override
    public void onFailure(@NonNull Call call, @NonNull IOException e) {
        if (Log.isLoggable(TAG, Log.DEBUG)) {
            Log.d(TAG, "OkHttp failed to obtain result", e);
        }
        callback.onLoadFailed(e);
    }

    @Override
    public void onResponse(@NonNull Call call, @NonNull Response response) {
        responseBody = response.body();
        if (response.isSuccessful() && responseBody != null) {
            try {
                String json = responseBody.string();
                String url = JsonApiDataModel.getSourceUrl(json);
                callback.onDataReady(new GlideUrl(url));
            } catch (IOException e) {
                callback.onLoadFailed(new HttpException(response.message(), response.code()));
                e.printStackTrace();
            }
        } else {
            callback.onLoadFailed(new HttpException(response.message(), response.code()));
        }
    }

    public void cleanup() {
        if (responseBody != null) {
            responseBody.close();
        }
        callback = null;
    }

    public void cancel() {
        Call local = call;
        if (local != null) {
            local.cancel();
        }
    }

}

JsonApiDataModel.java

import com.google.gson.Gson;
import com.google.gson.annotations.SerializedName;

public class JsonApiDataModel {

    @SerializedName("media_details")
    MediaDetails mediaDetails;

    public static String getSourceUrl(String json) {
        return new Gson().fromJson(json, JsonApiDataModel.class).mediaDetails.sizes.full.sourceUrl;
    }

    public class MediaDetails {
        @SerializedName("sizes")
        Sizes sizes;
    }

    public class Sizes {
        // you can use full, medium or thumbnail here!
        @SerializedName("full")
        Full full;
    }

    public class Full {
        @SerializedName("source_url")
        String sourceUrl;
    }

}

.

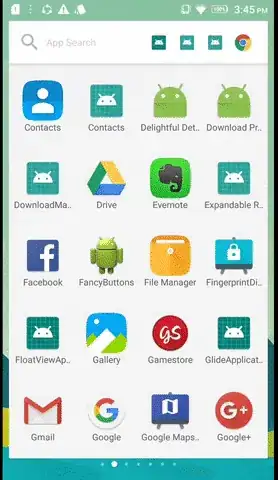

Test Code & Visual Result:

import com.aminography.glideapplication.glide.okhttp3.GlideApp;
import com.aminography.glideapplication.glide.okhttp3.JsonApiGlideUrl;

public class MainActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        final ImageView imageView = findViewById(R.id.imageView);
        TextView textView = findViewById(R.id.textView);

        String sourceUrl = "https://www.myfitbytes.com/wp-json/wp/v2/media/2811";

        textView.setText("JsonApiGlideUrl:\n\n" + sourceUrl);

        final JsonApiGlideUrl url = new JsonApiGlideUrl(sourceUrl);
        GlideApp.with(MainActivity.this).load(url).into(imageView);
    }

}

Answer 2

• First of all, I strongly recommend you to use Glide v4.

The loading delay problem and image item disposition comes from onBindViewHolder method where you call a webservice in it. Everytime a list item is appeared in scrolling, onBindViewHolder is called to initialize the view with correct values. So you should not call a webservice here at all (but in the code it is called everytime). As Glide creates a queue of requests, it guarantees that the image would be downloaded only one time because it caches them. Also it guarantees that the image would be loaded if the ImageView is in visible area of the RecyclerView in scrolling process. In addition, by setting diskCacheStrategy to DiskCacheStrategy.ALL, Glide shows an image which is resized according to the ImageView size.

@Override
public void onBindViewHolder(final RecyclerView.ViewHolder holder, final int position) {
    final Model object = dataset.get(position);

    if (Build.VERSION.SDK_INT >= 24) {
        // ( (ImageTypeViewHolder) holder).subtitle.setText(Html.fromHtml(object.subtitle , Html.FROM_HTML_MODE_LEGACY));
        ((ImageTypeViewHolder) holder).title.setText(Html.fromHtml(object.title , Html.FROM_HTML_MODE_LEGACY));
        ((ImageTypeViewHolder) holder).date.setText(Html.fromHtml(object.date , Html.FROM_HTML_MODE_LEGACY));
    } else {
        // ((ImageTypeViewHolder) holder).subtitle.setText(Html.fromHtml(object.subtitle));
        ((ImageTypeViewHolder) holder).title.setText( Html.fromHtml(object.title));
        ((ImageTypeViewHolder) holder).date.setText( Html.fromHtml(object.date));
    }


    ((ImageTypeViewHolder) holder).imageView.setOnClickListener(new View.OnClickListener() {
       @Override
       public void onClick(View v) {
           Intent intent = new Intent(mContext, WPPostDetails.class);
           intent.putExtra("itemPosition", position);
           mContext.startActivity(intent);
       }
    });

    Glide.with(imageView.getContext())
         .load(object.Image)
         .apply(RequestOptions.diskCacheStrategyOf(DiskCacheStrategy.ALL))
         .into(imageView);
}

By the above changes, your RecyclerView should work smoothly as well as fast. If you want to make Glide more integrated with RecyclerView, you can follow this. But I think this is not necessary and the previous level is enough.

Answer 3

The current version for Glide is '4.8.0'. Any reason you don't want to work with that version? https://github.com/bumptech/glide

https://github.com/bumptech/glide/blob/master/samples/flickr/src/main/java/com/bumptech/glide/samples/flickr/FlickrPhotoGrid.java

You need to use a RecyclerView. Here is an example:

 grid.addItemDecoration(new RecyclerView.ItemDecoration() {
      @Override
      public void getItemOffsets(Rect outRect, View view, RecyclerView parent,
          RecyclerView.State state) {
        outRect.set(gridMargin, gridMargin, gridMargin, gridMargin);
      }
    });
    grid.setRecyclerListener(new RecyclerView.RecyclerListener() {
      @Override
      public void onViewRecycled(RecyclerView.ViewHolder holder) {
        PhotoViewHolder photoViewHolder = (PhotoViewHolder) holder;
        GlideApp.with(FlickrPhotoGrid.this).clear(photoViewHolder.imageView);
      }
    });
