I'm working on a XScale PXA270 with NOR Flash on Chip select 0. due to the obsolescence of the previous flash, my company change it for an AMD/Spansion compatible MX29GL128.

I'm trying to write on it using Lauterbach JTAG.

here is my script : https://pastebin.com/jcjsbwE3

; reset the FLASH declaration
FLASH.CFI 0x00000000 L
; declare FLASH sectors via
; CFI query
;FLASH.CHANGEtype ALL AM29F100
; change type to AM29F100 to use "word wise" mode
FLASH.UNLOCK ALL
; unlock FLASH if required
FLASH.ReProgram ALL
; enable the FLASH for programming
;Data.LOAD.auto /home/lai/devel/uboot-2017-01/u-boot.bin
Data.LOAD.binary /tftpboot/u-boot-rioms-pxa270.bin D:0x00000000--0x1FFFF
; load the programming file
FLASH.ReProgram off
; program the FLASH and disable
; the FLASH programming

But get an error.

Flash programming error around address SD:0x7C.

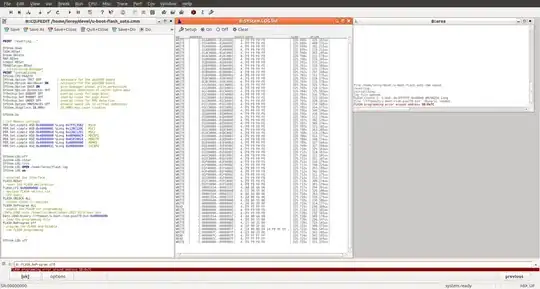

On this picture, you can see the commands on the bus and the error.

Have you some idea ? I'm stuck on it since many days

VC.One
  • 14,790
  • 4
  • 25
  • 57
DavidP
  • 116
  • 3
  • 1
    This isn't really a programming question, but more suitable for the electronics site. But the best bet is probably to contact the manufacturer. The datasheet mentions something about a command cycle. – Lundin Oct 12 '18 at 20:11
  • I suggest to check your FLASH.CFI command. You are currently using a 32-bit bus width (indicated by the "L"). Maybe your new flash is connected only via 16-bits? Otherwise check if there is any write-protection active, which is not removed by the unlock, since it looks like your flash gets not programmed at all. – Holger Oct 15 '18 at 15:34
  • According to https://www.lauterbach.com/ylist.html MX29GL128 is only supported in 8-bit and 16-bit. – Holger Oct 15 '18 at 15:37
  • The MX29GL128 is a 8/16 bit flash. but we are using 2 flash to get a 32bits bus width. This is supported by Lauterbach. – DavidP Oct 16 '18 at 06:38
  • 1
    We have resolved our issue. It was the WP# pin not driven to high level. It seems on this flash, the WP# lock all the sectors instead of locking only the locked one like in the previous one. Thank's for support – DavidP Oct 17 '18 at 12:02
