Is there a way to represent an enum class in Visio 2007?

Question

I am designing a Class Diagram (static structure) and would like to include some Enum classes. However I cannot seem to find a suitable way to represent this. Any ideas?

score 19 · Accepted Answer · answered Feb 13 '11 at 18:17

19

Create a datatype, go to Properties, and apply the stereotype enumeration to it.

answered Feb 13 '11 at 18:17

CesarGon

15,099
6
57
85

score 1 · Answer 2 · answered Jan 20 '17 at 07:15

1

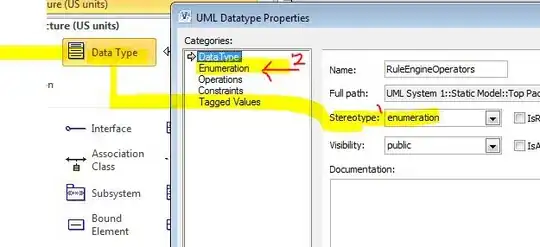

choose UML Static Structures> DataType.
Properties> 'Stereotype' to 'Enumeration'
Add Enum values (LHS panel has 'Enumeration' listed for this. This is enabled by Step-2

Refer Image:

answered Jan 20 '17 at 07:15

WinW

679
2
9
20
