I am currently having a problem with Android application. I am using a table layout with some views in it. The problem is that it seems like the TextView does not wraps the text correctly. However, when I change swipe between fragments it just resizes and it fits as how its supposed to.

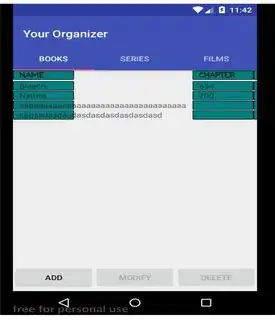

This is what is looks like in the first place when the onCreate function is called.
And this is how it looks when I swipe between fragments.
This is the method I used to set up the views inside the table.
private void initializeBookTable(final List<Book> bookList, View view, final Button modifyBtn, final Button deleteBtn)
{
//Get screen width
DisplayMetrics displaymetrics = new DisplayMetrics();
((Activity)getContext()).getWindowManager().getDefaultDisplay().getMetrics(displaymetrics);
int screenWidth = displaymetrics.widthPixels;
TableLayout table = view.findViewById(R.id.book_tableLayout);
//Border for the text views
final GradientDrawable gd = new GradientDrawable();
gd.setColor(getResources().getColor(R.color.colorTeal));
gd.setCornerRadius(2);
gd.setStroke(2, 0xFF000000);
//Font for the text views
Typeface font = Typeface.create("casual",Typeface.BOLD);
//Header row
TableRow headerRow = new TableRow(this.getContext());
TableLayout.LayoutParams headerRowParams = new TableLayout.LayoutParams(TableRow.LayoutParams.WRAP_CONTENT,TableRow.LayoutParams.WRAP_CONTENT);
headerRowParams.setMargins(0,1,0,0);
headerRow.setLayoutParams(headerRowParams);
//Header name text view
TextView headerName = new TextView(this.getContext());
headerName.setText(getResources().getString(R.string.book_NAME));
headerName.setBackground(gd);
headerName.setPadding(20,0,20,0);
headerName.setTypeface(font);
headerName.setTextColor(Color.BLACK);
headerName.setMinWidth(screenWidth/4);
headerRow.addView(headerName);
//Header chapter text view
TextView headerChapter = new TextView(this.getContext());
headerChapter.setText(getResources().getString(R.string.book_CHAPTER));
headerChapter.setBackground(gd);
headerChapter.setPadding(20,0,20,0);
headerChapter.setTypeface(font);
headerChapter.setTextColor(Color.BLACK);
headerChapter.setMinWidth(screenWidth/4);
headerRow.addView(headerChapter);
//Header page text view
TextView headerPage = new TextView(this.getContext());
headerPage.setText(getResources().getString(R.string.book_PAGE));
headerPage.setBackground(gd);
headerPage.setPadding(20,0,20,0);
headerPage.setTypeface(font);
headerPage.setTextColor(Color.BLACK);
headerPage.setMinWidth(screenWidth/4);
headerRow.addView(headerPage);
//Header name text view
TextView headerStatus = new TextView(this.getContext());
headerStatus.setText(getResources().getString(R.string.book_STATUS));
headerStatus.setBackground(gd);
headerStatus.setPadding(20,0,20,0);
headerStatus.setTypeface(font);
headerStatus.setTextColor(Color.BLACK);
headerStatus.setMinWidth(screenWidth/4);
headerRow.addView(headerStatus);
//Add row to table
table.addView(headerRow);
for(int i = 0; i < bookList.size(); i++)
{
TableRow row = new TableRow(this.getContext());
//Set text views parameters
TableRow.LayoutParams textViewParams = new TableRow.LayoutParams(TableRow.LayoutParams.WRAP_CONTENT, TableRow.LayoutParams.WRAP_CONTENT);
textViewParams.setMargins(0,1,0,1);
row.setLayoutParams(textViewParams);
//Set text views parameters
TextView name = new TextView(this.getContext());
name.setText(bookList.get(i).getName());
name.setBackground(gd);
name.setPadding(20,0,20,0);
name.setLayoutParams(textViewParams);
TextView chapter = new TextView(this.getContext());
chapter.setText(bookList.get(i).getChapter());
chapter.setBackground(gd);
chapter.setPadding(20,0,20,0);
chapter.setLayoutParams(textViewParams);
TextView page = new TextView(this.getContext());
page.setText(bookList.get(i).getPage());
page.setBackground(gd);
page.setPadding(20,0,20,0);
page.setLayoutParams(textViewParams);
TextView status = new TextView(this.getContext());
status.setText(bookList.get(i).getStatus());
status.setBackground(gd);
status.setPadding(20,0,20,0);
status.setLayoutParams(textViewParams);
//Add text views to the row
row.addView(name);
row.addView(chapter);
row.addView(page);
row.addView(status);
row.setClickable(true);
//Click listener for each row
row.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View view) {
TableRow tableRow = (TableRow) view;
selectedRow = tableRow;
//If the row is already selected (in red) deselect it
TextView textViewCheck = (TextView) tableRow.getChildAt(0);
if(selection && textViewCheck.getText().toString().equals(selectedBook.getName()))
{
for(int i = 0; i < 4; i++)
{
TextView textView = (TextView) tableRow.getChildAt(i);
textView.setBackground(gd);
}
//Disable add and modify buttons when row is deselected
modifyBtn.setEnabled(false);
deleteBtn.setEnabled(false);
selection = false;
selectedBook = null;
}
//If the row is not in red check if there is already a selected row
else
{
if(selection)
{
String message = "Please select only one";
Toast.makeText(getContext(), message, LENGTH_SHORT).show();
}
else
{
for(int i = 0; i < 4; i++)
{
TextView textView = (TextView) tableRow.getChildAt(i);
textView.setBackgroundColor(Color.RED);
}
//Enable add and modify buttons when row is selected
modifyBtn.setEnabled(true);
deleteBtn.setEnabled(true);
TextView nameView = (TextView) tableRow.getChildAt(0);
selectedBook = storage.findBook(nameView.getText().toString());
selection = true;
}
}
}
});
//Set row parameters
TableRow.LayoutParams tableRowParams = new TableRow.LayoutParams(TableRow.LayoutParams.WRAP_CONTENT,TableRow.LayoutParams.WRAP_CONTENT);
tableRowParams.setMargins(0,1,0,1);
row.setLayoutParams(tableRowParams);
table.addView(row);
}
}
This is my onCreate
public View onCreateView(LayoutInflater inflater, @Nullable ViewGroup container, @Nullable Bundle savedInstanceState)
{
View view = inflater.inflate(R.layout.books_fragment,container,false);
storage = InternalStorage.getInstance(this.getContext());
final Button modifyBtn = view.findViewById(R.id.modifyBtn);
final Button deleteBtn = view.findViewById(R.id.deleteBtn);
//Disable modify and delete buttons
modifyBtn.setEnabled(false);
deleteBtn.setEnabled(false);
this.initializeBookTable(storage.getBookList(),view, modifyBtn, deleteBtn);
Button addBtn = view.findViewById(R.id.addBtn);
addBtn.setOnClickListener(new View.OnClickListener()
{
@Override
public void onClick(View view) {
Intent intent = new Intent(getActivity(), AddModifyBook.class);
startActivity(intent);
}
});
modifyBtn.setOnClickListener(new View.OnClickListener()
{
@Override
public void onClick(View view)
{
Intent intent = new Intent(getActivity(), AddModifyBook.class);
//Passing the selected book to the AddModifyBook activity
intent.putExtra("selectedBook",selectedBook);
startActivity(intent);
selectedBook = null;
selection = false;
}
});
final TableLayout table = view.findViewById(R.id.book_tableLayout);
deleteBtn.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View view) {
storage.removeBook(selectedBook);
selectedBook = null;
selection = false;
modifyBtn.setEnabled(false);
deleteBtn.setEnabled(false);
table.removeView(selectedRow);
}
});
return view;
}
And for onResume I have the default. Another thing that is happening is that if I just set the background of the name (the first column) with the gradient drawable gd then it works but If I set the rest background of the rest of the columns then I have the problem that I have already explained.
