Android: RecyclerLayout is adding default padding

Question

I'm trying to create a Collapsing Toolbar Layout using RecyclerLayout.

The problem is that, When I'm inflating the Layout during run time, it's adding a default padding on it's own.

Below are my layout xmls:

activity_profile.xml

<?xml version="1.0" encoding="utf-8"?>
<android.support.design.widget.CoordinatorLayout
   xmlns:android="http://schemas.android.com/apk/res/android"
   xmlns:app="http://schemas.android.com/apk/res-auto"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   android:fitsSystemWindows="true">

   <android.support.v7.widget.RecyclerView
      android:id="@+id/recycler"
      android:layout_width="match_parent"
      android:layout_height="match_parent"
      app:layout_behavior="@string/appbar_scrolling_view_behavior" />

   <android.support.design.widget.AppBarLayout
      android:id="@+id/appbar"
      android:layout_width="match_parent"
      android:layout_height="180dp"
      android:fitsSystemWindows="true"
      android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar">

       <android.support.design.widget.CollapsingToolbarLayout
           android:id="@+id/collapsing_toolbar"
           android:layout_width="match_parent"
           android:layout_height="match_parent"
           android:fitsSystemWindows="true"
           app:contentScrim="?attr/colorPrimary"
           app:layout_scrollFlags="scroll|exitUntilCollapsed">

           <ImageView
               android:id="@+id/header"
               android:layout_width="match_parent"
               android:layout_height="match_parent"
               android:fitsSystemWindows="true"
               android:scaleType="centerCrop"
               app:layout_collapseMode="parallax" />

           <android.support.v7.widget.Toolbar
               android:id="@+id/toolbar"
               android:layout_width="match_parent"
               android:layout_height="?attr/actionBarSize"
               app:layout_collapseMode="pin"
               app:popupTheme="@style/ThemeOverlay.AppCompat.Light" />

       </android.support.design.widget.CollapsingToolbarLayout>

   </android.support.design.widget.AppBarLayout>

   <android.support.design.widget.FloatingActionButton
       android:layout_width="wrap_content"
       android:layout_height="wrap_content"
       android:layout_margin="10dp"
       app:layout_anchor="@+id/appbar"
       app:layout_anchorGravity="bottom|center|end" />

</android.support.design.widget.CoordinatorLayout>

I've tried to remove activity_horizontal_margin as well but it does not seem to work.

Here is the layout that I'm trying to inflate in the recycler-layout:

profile_view.xml

<?xml version="1.0" encoding="utf-8"?>
<android.support.constraint.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <android.support.constraint.ConstraintLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:background="@color/colorProfileStatsBackground"
        app:layout_constraintBottom_toTopOf="@+id/guideline">

    </android.support.constraint.ConstraintLayout>

    <android.support.constraint.Guideline
        android:id="@+id/guideline"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:orientation="horizontal"
        app:layout_constraintGuide_percent="0.25" />

</android.support.constraint.ConstraintLayout>

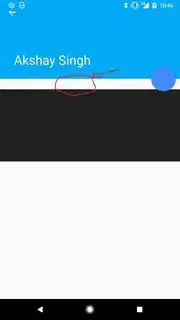

Output:

Add screen shots of current output and expected output for better understanding — Vidhi Dave, Mar 06 '18 at 05:17
@AkshaySingh I have tried your code i am not getting any padding https://i.stack.imgur.com/UEgqs.png — Vidhi Dave, Mar 06 '18 at 05:28
try coordinator layout height `wrap_content` instead of `match_parent` — Santanu Sur, Mar 06 '18 at 05:29
@VishvaDave: The screenshot I have is from my device: Google Pixel 2 — Akshay Singh, Mar 06 '18 at 05:30
@AkshaySingh then try on different divice because it is working perfectly for me — Vidhi Dave, Mar 06 '18 at 05:31
@AkshaySingh add this line in recycleview. you will be able to see in preview as well `tools:listitem="@layout/profile_view"` `tools:layoutManager="LinearLayoutManager"` — Vidhi Dave, Mar 06 '18 at 05:33
@VishvaDave: My preview is the same as expected, only on device this padding is rendered, which is wierd. — Akshay Singh, Mar 06 '18 at 09:50

score 0 · Accepted Answer · answered Mar 06 '18 at 14:14

Finally figured out the problem.

The problem was with android:fitsSystemWindows="true" in AppBarLayout.

I did some research, and found an article fitsSystemWindow which decribes that the default behavior of this attribute is that it sets the padding of the View to ensure the contents don’t overlay the system windows.
