How can i achieve this design (the yellow arrow) ? and (the orange arrow) ? is it a listview ? Thanks in advance!

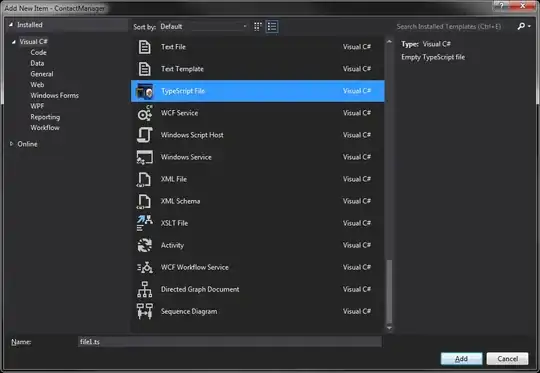

enter image description here

Pudge
  • 47
  • 1
  • 9

1 Answers1

2

You can use one tablayout and one recyclerview for this purpose. or you can used NestedScrollView.

<android.support.v4.widget.NestedScrollView
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:scrollbars="none">

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:focusableInTouchMode="true"
        android:orientation="vertical">

    <android.support.design.widget.TabLayout
        android:id="@+id/fragment_manager_tab_bar_tab_layout"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        app:tabGravity="fill"
       app:tabMode="fixed"
       app:tabTextColor="@color/tab_inactive"
       app:tabSelectedTextColor="@color/tab_active"
       app:tabIndicatorColor="@color/tab_active" />


        <android.support.v7.widget.RecyclerView
            android:id="@+id/product_list"
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:orientation="vertical"
            android:scrollbars="none" />

    </LinearLayout>
</android.support.v4.widget.NestedScrollView>

More first fragment_manager_tab_bar_tab_layout display here View Card, Scan and Add Money and product_list you can display Linear Layout Vertical.

More full code, you can reference:

https://inducesmile.com/android-tips/android-recyclerview-inside-nestedscrollview-example/

and this one is also help for your:

http://android-pratap.blogspot.com/2015/12/horizontal-recyclerview-in-vertical.html

Don't Miss this:

https://mzgreen.github.io/2015/02/28/How-to-hideshow-Toolbar-when-list-is-scrolling(part2)/

Horrorgoogle
  • 7,858
  • 11
  • 48
  • 81
  • Thank you so much sir , im gonna try this – Pudge Feb 27 '18 at 01:37
  • Hi Dharma! Could you answer this question (it's about your Tic-Tac-Toe game): https://stackoverflow.com/questions/54108298/kotlin-why-to-add-0-while-using-nextint/54109419?noredirect=1#comment95084756_54109419 – Andy Jazz Jan 10 '19 at 21:06
