Latex / Tikz: draw a vertical line to a straight line

Question

Maybe you can help me, I try to draw a line from a Point/Coordinate to a straight line. I use Tikz to draw.

      \begin{tikzpicture}
      \coordinate [label=left:$A$] (A) at (-5,-5){};
      \coordinate [label=right:$B$] (B) at (5,-5) {};
      \coordinate [label=right:$C$] (C) at (5,1) {};
      \coordinate [label=left:$D$] (D) at (-5,1) {};

      \draw [thick] (A) -- node[midway] {$\parallel$} (B) -- node[sloped]{$\parallel$} (C) -- (D) -- cycle;

      \coordinate (S1) at ($(D)!0.66!(C)$);
      \coordinate (S2) at ($(A)!0.11!(B)$);
      \draw [very thick] (S1) -- node[above]{x} (S2);
      \draw [red!100, thick] (S1) -- node[above]{T} (A -| B );
      \end{tikzpicture}

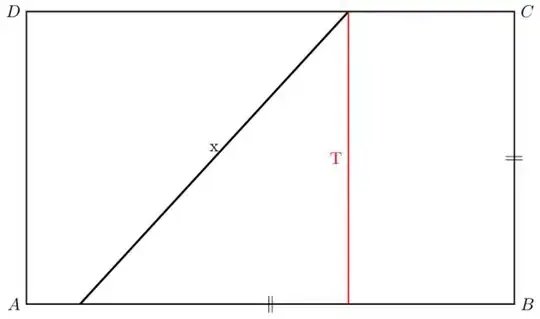

This where the red line should go

the red line should go from coordinate (S1) to the straight line (A -- B) vertically. I tried it to draw it like this:

     \draw [red!100, thick] (S1) -- node[above]{T} (A -| B );

But then he draw a line to coordinate A

Thank you,

pchaigno · Answer 1 · 2018-09-10T04:45:18.470

You can do that by defining a new coordinate (say S3) for the point on AB:

\begin{tikzpicture}
\coordinate [label=left:$A$] (A) at (-5,-5){};
\coordinate [label=right:$B$] (B) at (5,-5) {};
\coordinate [label=right:$C$] (C) at (5,1) {};
\coordinate [label=left:$D$] (D) at (-5,1) {};

\draw [thick] (A) -- node[midway] {$\parallel$} (B) -- node[sloped]{$\parallel$} (C) -- (D) -- cycle;

\coordinate (S1) at ($(D)!0.66!(C)$);
\coordinate (S2) at ($(A)!0.11!(B)$);
\coordinate (S3) at ($(A)!0.66!(B)$);
\draw [very thick] (S1) -- node[above]{x} (S2);
\draw [red!100, thick] (S1) -- node[left]{T} (S3);
\end{tikzpicture}

score 2 · Accepted Answer · answered Jan 31 '18 at 22:55

2

You don't need to define a new coordinate but you can use the projection identifiers from calc library.

In the last line you just need

\draw [red!100, thick] (S1) -- node[left]{T} ($(A)!(S1)!(B)$);

This mean along A--B take the point which S1 is projected onto A--B.

answered Jan 31 '18 at 22:55

percusse

3,006
1
14
28

In this case you can just use the tee operation as the OP tried to do, but with the correct coordinates. – Andrew Swann Feb 01 '18 at 12:34
@AndrewSwann Only in this case when A -- B is horizontal. – percusse Feb 01 '18 at 12:45
Indeed the tee is only for horizontal/vertical case. – Andrew Swann Feb 01 '18 at 12:59

Andrew Swann · Answer 3 · 2018-04-04T15:59:06.460

Your syntax is nearly correct, but the tee operators |- and -| take the x coordinate from one side and the y coordinate from other. When you write A -| B you get the y coordinate of A and the x coordinate of B, but in your code A and B have the same x coordinate so this gives you the point A again. Instead you want A -| S1, or equivalently S1 |- A.

 \draw [red!100, thick] (S1) --   node[left]{T} (S1 |- A);

\documentclass{article}

\usepackage{tikz}
\usetikzlibrary{calc}
\begin{document}
     \begin{tikzpicture}
      \coordinate [label=left:$A$] (A) at (-5,-5){};
      \coordinate [label=right:$B$] (B) at (5,-5) {};
      \coordinate [label=right:$C$] (C) at (5,1) {};
      \coordinate [label=left:$D$] (D) at (-5,1) {};

      \draw [thick] (A) -- node[midway] {$\parallel$} (B) -- node[sloped]{$\parallel$} (C) -- (D) -- cycle;

      \coordinate (S1) at ($(D)!0.66!(C)$);
      \coordinate (S2) at ($(A)!0.11!(B)$);
      \draw [very thick] (S1) -- node[above]{x} (S2);
      \draw [red!100, thick] (S1) --   node[left]{T} (S1 |- A);
      \end{tikzpicture}
\end{document}
