Set aspect ratio programmatically for imageView

Question

I have a problem with showing a landscape image without centerCrop. I tried PercentFramelayout, and set aspect ratio programmatically like this:

laParams.percentLayoutInfo.aspectRatio = img.width.toFloat() / img.height.toFloat()

The result is ok -- the application showed all landscape images without centerCrop:

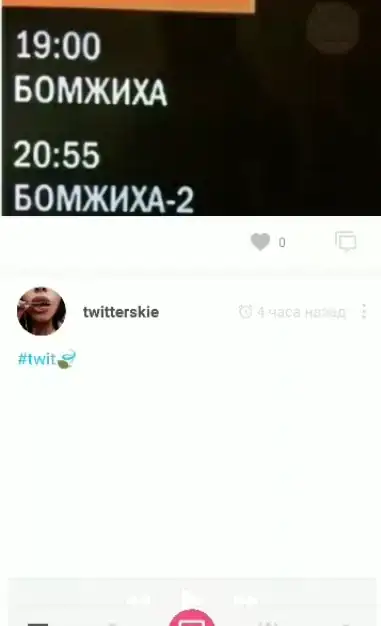

But sometimes I get the wrong aspect ratio:

I tried android:adjustViewBounds ="true" but it does not help me. And I used ConstraintLayout, setting the aspect ratio in XML like this:

<?xml version="1.0" encoding="utf-8"?>

<android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:id="@+id/container"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@color/white"
    >

    <android.support.v7.widget.AppCompatImageView xmlns:android="http://schemas.android.com/apk/res/android"
        xmlns:app="http://schemas.android.com/apk/res-auto"
        android:id="@+id/photo"
        android:layout_width="0dp"
        android:layout_height="0dp"
        app:layout_constraintDimensionRatio="h,16:9"
        app:layout_constraintHorizontal_chainStyle="spread"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintTop_toTopOf="parent"

        />
</android.support.constraint.ConstraintLayout>

I got good result, but I load images different size. Images should be without CenterCrop and FitXY. I didn't find any good answers about set aspect ratio programmatically for Constraintlayout I want to show images like instagram or vk.

Hi Muhammadjon if my answer has solved your question please consider [accepting it](https://meta.stackexchange.com/q/5234/179419) by clicking the check-mark. This indicates to the wider community that you've found a solution and gives some reputation to both the answerer and yourself. — Julius, Dec 17 '18 at 15:54

score 50 · Answer 1 · answered Oct 23 '18 at 16:47

50

just changing the layoutParams also works

 (view.layoutParams as ConstraintLayout.LayoutParams).dimensionRatio = "16:9"

answered Oct 23 '18 at 16:47

AdrianoCelentano

2,461
3
31
42

This works. Also can set the "H"/"W" to set only height or width. And can set the value as float instead. Had some issues trying to constrain it, but eventually done with this too – android developer Jun 20 '23 at 14:07

score 46 · Answer 2 · answered Dec 22 '17 at 23:04

46

Late answer, as usual, but this might be useful to someone.

You can set the ratio property programatically by doing the following:

ConstraintSet set = new ConstraintSet();
set.clone(mLayout);
set.setDimensionRatio(mView.getId(), "16:9");
set.applyTo(mLayout);

What I am doing above is getting the layout's existing ConstraintSet and adding the ratio constraint programmatically before reapplying the ConstraintSet unto the ConstraintLayout (mLayout).

You should get the ConstraintLayout (mLayout) by using the findViewById() method (and manually adding the id property to your ConstraintLayout in your .xml).

answered Dec 22 '17 at 23:04

Julius

1,005
1
9
19

2

we can also use: `set.setDimensionRatio(mLayout.getChildAt(0).getId(), "16:9");` if you have the child position in the layout – Hanzyusuf Sep 30 '18 at 06:46
Which layout id you are passing in mView.getId()? – Chintan Parmar Mar 16 '21 at 12:04
@ChintanParmar the id of the view on which you want to apply the aspect ratio – Julius Mar 16 '21 at 14:35

score 9 · Answer 3 · answered Jan 01 '21 at 13:42

9

you can also check the below code

val layoutParams = imageView.layoutParams as ConstraintLayout.LayoutParams
layoutParams.dimensionRatio = "H,2:1"
imageView.layoutParams = layoutParams

answered Jan 01 '21 at 13:42

tej shah

2,995
2
25
35

Владислав Шестернин · Answer 4 · 2022-09-01T10:32:11.547

SOLUTION Kotlin 2022:

val parent = ViewGroup(context)
val view   = View(context)

view.apply {
     id           = View.generateViewId()
     layoutParams = ViewGroup.LayoutParams(0, 0)
}

parent.apply {
     id = View.generateViewId()
     removeAllViews()
     addView(rootViewGroup)
}

ConstraintSet().apply {
     clone(parent)

     val viewId   = rootViewGroup.id
     val parentId = parent.id

        connect(viewId, START,  parentId, START)
        connect(viewId, END,    parentId, END)
        connect(viewId, TOP,    parentId, TOP)
        connect(viewId, BOTTOM, parentId, BOTTOM)

        setDimensionRatio(rootId, "1:1")

        applyTo(parent)
}
