SoftInput.AdjustPan doesn't work

Question

Hello to all programmers. I try to create Android app in Visual Studio Xamarin. I placed EditText in the lower part of app screen and when I set focus on it, keyboard hide bottom part of UI. Is it possible to do something with this?

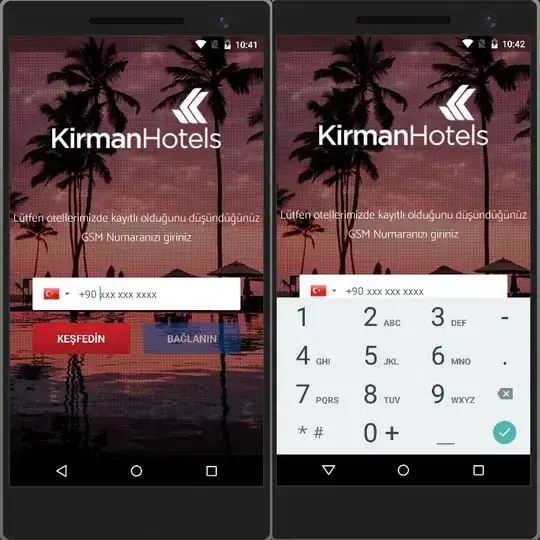

Screens: Keyboard hide

Code: Main.axml MainActivity.cs

All help will be appreciated

UPDATED

Theme code:

<resources>
  <style name="CustomToolbar" parent="@android:style/Theme.Material.Light">
    <item name="android:windowNoTitle">true</item>
    <item name="android:windowActionBar">false</item>
    <item name="android:colorPrimaryDark">@color/status_bar</item>
    <item name="android:statusBarColor">@color/status_bar</item>
    <item name="android:colorPrimary">@color/status_bar</item>
  </style>
  <style name="TransparentStatusBar" parent="@android:style/Theme.Material.Light.DarkActionBar">
    <item name="android:windowNoTitle">true</item>
    <item name="android:windowActionBar">false</item>
    <item name="android:windowTranslucentStatus">true</item>
    <item name="android:statusBarColor">@android:color/transparent</item>
  </style>
  <style name="CustomSplash" parent ="@android:style/Theme.Material.Light">
    <item name="android:windowBackground">@drawable/splash_screen</item>
    <item name="android:windowNoTitle">true</item>
    <item name="android:windowActionBar">false</item>
    <item name="android:windowFullscreen">true</item>
  </style>
</resources>

post your TransparentStatusBar theme code plz. some style item is ignore SoftInput.AdjustPan. (ex. true ) — 배준모, Jul 11 '17 at 08:52
To @배준모 Yes, you are right, I use windowTranslucentNavigation. I added code of theme — Adeptus Mechanicus, Jul 11 '17 at 09:03
if use windowTranslucentNavigation, SoftInput.AdjustPan not working..i dont know why...so remove it — 배준모, Jul 11 '17 at 09:08
i think maybe windowTranslucentNavigation is layout fixed. so maybe...not resizing layout — 배준모, Jul 11 '17 at 09:11
To @배준모 Well, thank you for help with dependencies between AdjustPan/Resize and windowTranslucentNavigation. Will think how to fix this my own way. — Adeptus Mechanicus, Jul 11 '17 at 09:13

Taier · Answer 1 · 2017-07-11T11:02:27.410

0

You can put your layout inside ScrollView. I will allow EditText to be fully visible, but it will not do anything with bottom buttons since they do not block that field.

If you want to make it more pressure for eyes, you can scroll ScrollView when the keyboard is presented on the screen.

EDIT: To find out when the keyboard appears, you can use GlobalLayout event of the main layout.

ViewTreeObserver vto = element.ViewTreeObserver;
vto.GlobalLayout += (sender, args) => {
        element.Height; // will be different with/without keyboard
};

edited Jul 11 '17 at 11:02

answered Jul 11 '17 at 08:56

Taier

2,109
12
22

Can you explain, how to control presenting keyboard on the screen, please? – Adeptus Mechanicus Jul 11 '17 at 09:06
@AdeptusMechanicus I edited the answer for your request – Taier Jul 11 '17 at 11:02
To @Taier. Ok, but how I can get this element (keyboard). That the first. Second - with windowTranslucentNavigation AdjustPan or AdjustResize don't work, so ScrollView will not help Whithout windowTranslucentNavigation both works. – Adeptus Mechanicus Jul 11 '17 at 11:13
