Changing the font size of figure captions in RMarkdown HTML output

Question

I would like to make the font size of all figure captions in my R Markdown document smaller. The final output is HTML and I'm working in R Studio. To load the picture, I use the include_graphics function from knitr, because I've been told it's the best way (see here). My .Rmd file is:

---
title: "ppp"
author: "ppp"
date: "July 4, 2017"
output:
  html_document:
    fig_caption: yes
---

```{r setup, include=FALSE}
library(knitr)
opts_chunk$set(echo = FALSE)
```


```{r foo, fig.cap="$f_{p}$ as a function of $g$ for various values of $r=\\frac{\\rho_{w}}{\\rho_{a}}$"}
# All defaults
include_graphics("download.jpg")
```

This is regular text.

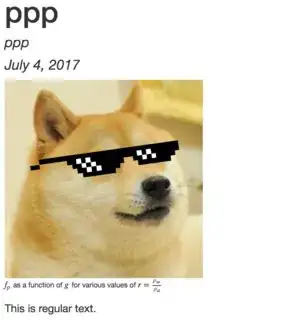

The corresponding output is:

As you can see, the caption font size and the regular text font size are exactly the same, which doesn't look that nice. How can I solve this problem?

Martin Schmelzer · Accepted Answer · 2017-07-11T10:17:26.143

21

Just add the following CSS to your Rmd document (anywhere below the YAML header):

<style>
p.caption {
  font-size: 0.6em;
}
</style>

What are we doing here:

If you mark the caption in your browser and inspect that element (Chrome: right-click -> Inspect) you can see that the caption is actually a HTML paragraph with a class named caption:

<p class="caption"> ... </p>

With the above CSS code we change the font-size of exactly those elements (and only those) to 60% of the default size.

edited Jul 11 '17 at 10:17

answered Jul 10 '17 at 21:42

Martin Schmelzer

23,283
6
73
98

Would +2 your answer for the Doge meme just a question, where do I put this CSS in my Rmd doc? In the YAML header? – DeltaIV Jul 11 '17 at 06:41
1

No, you put it somewhere below the YAML. I prefer to put CSS or JavaScript Code right below the YAML. – Martin Schmelzer Jul 11 '17 at 07:35
1

It works! Thanks a lot :) ps I had a look at your GitHub and learned this nifty trick: instead than `date: "July 4, 2017"`, `date: "\`r Sys.Date()\`"` is much better! – DeltaIV Jul 11 '17 at 10:22
If you use Bookdown or Blogdown, you can add the same CSS to your main CSS file. (without the – Richard Sprague Dec 03 '19 at 17:47

score 0 · Answer 2 · answered Aug 31 '22 at 12:53

To embed it within the RMD documents, use this chunk:

```{css, echo=FALSE}
p {
  font-size: 32px;
}
```

How this looks within the whole RMD file:

---
title: "ppp"
author: "ppp"
date: "July 4, 2017"
output:
  html_document:
    fig_caption: yes
---

```{r setup, include=FALSE}
library(knitr)
opts_chunk$set(echo = FALSE)
```


```{css, echo=FALSE}
p {
  font-size: 32px;
}
```


```{r foo, fig.cap="$f_{p}$ as a function of $g$ for various values of $r=\\frac{\\rho_{w}}{\\rho_{a}}$"}
# All defaults
include_graphics("download.jpg")
```

This is regular text.
