I've built a tree image, see question.
Now I've some major groups.
One group has nodes with color green and brown, and has a 'B' and a 'A'. The second group has only pink nodes and 'T' and the last group has yellow, orange and blue, and the letters 'L', 'X' and 'H'. the colors refer to the colors of the nodes and the letters belong to the name. So I want to color the edge of the different groups.

#taken from draw_graphviz
def get_label_mapping(G, selection):
    for node in G.nodes():
        if (selection is None) or (node in selection):
            try:
                label = str(node)
                if label not in (None, node.__class__.__name__):
                    yield (node, label)
            except (LookupError, AttributeError, ValueError):
                pass


labels = dict(get_label_mapping(G, None))
for label in labels.keys():
if str(label) != "Clade":
        num = label.name.split('-')
        if 'T' in num[0]:
            node_colors.append('#CC6699')
        elif 'X' in num[0]:
            node_colors.append('r')
        else:
            node_colors.append('y')

so I've done a similar function to the above, instead of node, I changed to get_edge. and try this:

  for edge in edges.keys():
        if str(edge) != "Clade":
            if 'T' in edge:
                edge_colors.append('b')

where edge is:

(Clade(branch_length=-0.00193, name='T-7199-8'), Clade(branch_length=0.00494))

perhaps there's a way to say if T is in name, then color the edge. What to you think?

anyone knows how to do this?

Thank you

Community
  • 1
  • 1
psoares
  • 4,733
  • 7
  • 41
  • 55
  • When you say "if a T is in the name, then color the edge", do you mean the name of the *edge*, or the name of a node (or both nodes) incident on the edge? Also, can you please show the full for-loop? It will be easier to help you if we can see what exactly you're iterating over. – gotgenes Dec 06 '10 at 17:05
  • T is in the name of the node, so I though doing something like: if T is in the node, color the edge. The loop was in the other question but I gone update my question and provide a bit more code :) – psoares Dec 06 '10 at 17:16
  • with the node_colors I'm changing the colors of the node, what I would like if for instance all nodes that have red color, have an edge blue, or something similar. Hope I made myself clear enough – psoares Dec 06 '10 at 17:21
  • Thanks for clarifying the question of "name". Could you now explicitly state the conditions on which you color an edge? For example, do you color an edge blue so long as *either* one of its nodes' names start with "T", or only if *both* do? What happens if one node's name starts with "T" and another's starts with "X": do you color it blue, red, or neither? Be specific. Try to think of exceptional cases. – gotgenes Dec 06 '10 at 18:32
  • I updated my question with a small explication for the colors and the names. the colors represent different clusters, so they aren't suppose to be mixed – psoares Dec 06 '10 at 18:45
  • @pavid: I've updated my answer to have a shot at this situation (assuming that BioPython Clades have a `.name` attribute). Have a look at it. – Thomas K Dec 06 '10 at 18:56
  • @pavid You still did not give the conditions under which you decide to color an edge, and what color you want it colored. Please try to answer the questions in my previous comment, starting at "For example...", and write any other specifications you think we should know. – gotgenes Dec 06 '10 at 21:55

1 Answers1

4

I'm guessing (since I don't know how that snippet fits in to the rest of the code) that you're iterating over the nodes, and adding one colour to the list for each node. Like the error message suggests, you need to work out the colour required for each edge. That's going to be trickier.

Alright, got it! The code could be tidied up a bit, but this works.

#Define your centre node: you need to pull this out of the graph. Call it b.
# The number changes each time: look for a Clade(branch_length=0.03297)
# Its neighbors have branch lengths .00177, .01972, .00774.
b = G.nodes()[112]

# Recursively paint edges below a certain point, ignoring ones we've already seen
def paintedges(graph, startnode, colour):
    for node in graph.neighbors(startnode):
        if node not in alreadyseen: # alreadyseen is in global scope
            graph[startnode][node]["colour"] = colour
            alreadyseen.add(node)
            paintedges(graph, node, colour)

alreadyseen = set([b])
G[b][G.neighbors(b)[0]]["colour"] = "red"
paintedges(G, G.neighbors(b)[0], "red")
G[b][G.neighbors(b)[1]]["colour"] = "blue"
paintedges(G, G.neighbors(b)[1], "blue")
G[b][G.neighbors(b)[2]]["colour"] = "green"
paintedges(G, G.neighbors(b)[2], "green")

# Now make a list of all the colours, in the order networkx keeps the edges
edgecolours = [G[f][t]["colour"] for f,t in G.edges()]
kwargs["edge_color"] = edgecolours

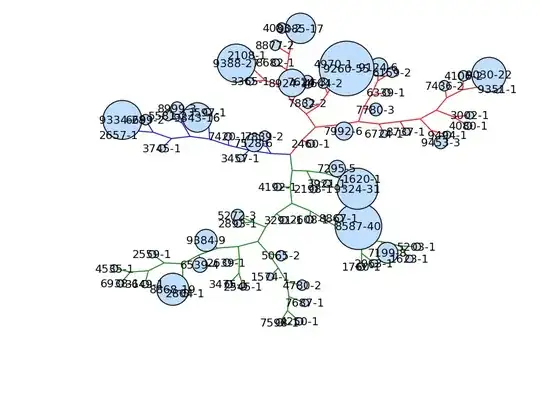

Tree with colours
