Add padding to images to get them into the same shape

Question

l have a set of images of different sizes (45,50,3), (69,34,3), (34,98,3). l want to add padding to these images as follows:

Take the max width and length of the whole images then put the image in that size

import os
import glob
import cv2

input_path="/home/images"
os.chdir(indput_path)
images=glob.glob("*.png")
Length=[]
Width=[]
for img in images:
    img=cv2.imread(img)
    width,length=img.shape[0:2]
    Length.append(length)
    Width.append(width)
W=max(Width)
L=max(Length)

How can l add padding in opencv so that all the images will have the same size? In the example l gave the images will get the shape of (69,98,3)

Answer 1

You can use:

image = cv2.copyMakeBorder(src, top, bottom, left, right, borderType)

Where src is your source image and top, bottom, left, right are the padding around the image.

You can use max(sizes) - size value of the image in a while loop to add the padding to each image. The bordertype can be one of these:

• cv2.BORDER_CONSTANT
• cv2.BORDER_REFLECT
• cv2.BORDER_REFLECT_101
• cv2.BORDER_DEFAULT
• cv2.BORDER_REPLICATE
• cv2.BORDER_WRAP

cv2.copyMakeBorder tutorial

Answer 2

Here is another way to do that in Python/OpenCV/Numpy. It uses Numpy slicing to copy the input image into a new image of the desired output size and a given offset. Here I compute the offset to do center padding. I think this is easier to do using width, height, xoffset, yoffset, rather than how much to pad on each side.

Input:

import cv2
import numpy as np

# read image
img = cv2.imread('lena.jpg')
old_image_height, old_image_width, channels = img.shape

# create new image of desired size and color (blue) for padding
new_image_width = 300
new_image_height = 300
color = (255,0,0)
result = np.full((new_image_height,new_image_width, channels), color, dtype=np.uint8)

# compute center offset
x_center = (new_image_width - old_image_width) // 2
y_center = (new_image_height - old_image_height) // 2

# copy img image into center of result image
result[y_center:y_center+old_image_height,
       x_center:x_center+old_image_width] = img

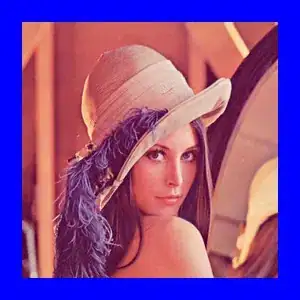

# view result
cv2.imshow("result", result)
cv2.waitKey(0)
cv2.destroyAllWindows()

# save result
cv2.imwrite("lena_centered.jpg", result)

Answer 3

try to use this function:

from PIL import Image, ImageOps


def padding(img, expected_size):
    desired_size = expected_size
    delta_width = desired_size[0] - img.size[0]
    delta_height = desired_size[1] - img.size[1]
    pad_width = delta_width // 2
    pad_height = delta_height // 2
    padding = (pad_width, pad_height, delta_width - pad_width, delta_height - pad_height)
    return ImageOps.expand(img, padding)


def resize_with_padding(img, expected_size):
    img.thumbnail((expected_size[0], expected_size[1]))
    # print(img.size)
    delta_width = expected_size[0] - img.size[0]
    delta_height = expected_size[1] - img.size[1]
    pad_width = delta_width // 2
    pad_height = delta_height // 2
    padding = (pad_width, pad_height, delta_width - pad_width, delta_height - pad_height)
    return ImageOps.expand(img, padding)


if __name__ == "__main__":
    img = Image.open("./demo.jpg")
    print(img)
    img = resize_with_padding(img, (500, 400))
    print(img.size)
    img.show()
    img.save("resized_img.jpg")

Raw image

After resizing with padding

see https://gist.github.com/BIGBALLON/cb6ab73f6aaaa068ab6756611bb324b2

Answer 4

Like this (Padding is called borders on openCV):

BLUE = [255,255,255]
constant= cv2.copyMakeBorder(image.copy(),10,10,10,10,cv2.BORDER_CONSTANT,value=BLUE)

And blue can become white even

source: https://docs.opencv.org/3.4/da/d0c/tutorial_bounding_rects_circles.html

Answer 5

As I do not see an accepted answer, and also the fact that one has to determine the top, bottom, left, right of the function, I have bellow what worked for me easily. Taken from: https://jdhao.github.io/2017/11/06/resize-image-to-square-with-padding/

import cv2

desired_size = 368
im_pth = "/home/jdhao/test.jpg"

im = cv2.imread(im_pth)
old_size = im.shape[:2] # old_size is in (height, width) format

ratio = float(desired_size)/max(old_size)
new_size = tuple([int(x*ratio) for x in old_size])

# new_size should be in (width, height) format

im = cv2.resize(im, (new_size[1], new_size[0]))

delta_w = desired_size - new_size[1]
delta_h = desired_size - new_size[0]
top, bottom = delta_h//2, delta_h-(delta_h//2)
left, right = delta_w//2, delta_w-(delta_w//2)

color = [0, 0, 0]
new_im = cv2.copyMakeBorder(im, top, bottom, left, right, cv2.BORDER_CONSTANT,
    value=color)

cv2.imshow("image", new_im)
cv2.waitKey(0)
cv2.destroyAllWindows()

Answer 6

Here is a function doing all for you :

import cv2


def pad_images_to_same_size(images):
    """
    :param images: sequence of images
    :return: list of images padded so that all images have same width and height (max width and height are used)
    """
    width_max = 0
    height_max = 0
    for img in images:
        h, w = img.shape[:2]
        width_max = max(width_max, w)
        height_max = max(height_max, h)

    images_padded = []
    for img in images:
        h, w = img.shape[:2]
        diff_vert = height_max - h
        pad_top = diff_vert//2
        pad_bottom = diff_vert - pad_top
        diff_hori = width_max - w
        pad_left = diff_hori//2
        pad_right = diff_hori - pad_left
        img_padded = cv2.copyMakeBorder(img, pad_top, pad_bottom, pad_left, pad_right, cv2.BORDER_CONSTANT, value=0)
        assert img_padded.shape[:2] == (height_max, width_max)
        images_padded.append(img_padded)

    return images_padded

Answer 7

Here a single line could do it

from PIL import Image
from PIL import ImageOps
image = Image.open("demo.jpg").convert("RGB")
ImageOps.pad(image,(100,100)).save('imaged-with-border.png')

This will keep my image in 100x100 maintaining its aspect ratio with zero padding

Answer 8

Just use Pillow's crop_pad(). It automatically resize and adds 'zeros' padding where needed (rgb=(0,0,0) / black) with no picture scaling.

from PIL import Image

img = Image.open(your_file_path)
img.crop_pad((width, height))

Answer 9

It's the best what i could do, works only with black and white images

def resize_with_padding(image, size=(224,224)):
    '''
    Resizes a black and white image to the specified size,
    adding padding to preserve the aspect ratio.
    '''
    # Get the height and width of the image
    height, width = image.shape

    # Calculate the aspect ratio of the image
    aspect_ratio = height / width

    # Calculate the new height and width after resizing to (224,224)
    new_height, new_width = size
    if aspect_ratio > 1:
        new_width = int(new_height / aspect_ratio)
    else:
        new_height = int(new_width * aspect_ratio)

    # Resize the image
    resized_image = cv2.resize(image, (new_width, new_height), interpolation = cv2.INTER_NEAREST)

    # Create a black image with the target size
    padded_image = np.zeros((224,224), dtype=np.uint8)

    # Calculate the number of rows/columns to add as padding
    padding_rows = (224 - new_height) // 2
    padding_cols = (224 - new_width) // 2

    # Add the resized image to the padded image, with padding on the left and right sides
    padded_image[padding_rows:padding_rows+new_height, padding_cols:padding_cols+new_width] = resized_image

    return padded_image

Answer 10

Inspired by @sebl ful. It should work with either black and white image or color image

def resize_with_padding(image, shape_out, DO_PADDING=True, TINY_FLOAT=1e-5):
    """
    Resizes an image to the specified size,
    adding padding to preserve the aspect ratio.
    """
    if image.ndim == 3 and len(shape_out) == 2:
        shape_out = [*shape_out, 3]
    hw_out, hw_image = [np.array(x[:2]) for x in (shape_out, image.shape)]
    resize_ratio = np.min(hw_out / hw_image)
    hw_wk = (hw_image * resize_ratio + TINY_FLOAT).astype(int)

    # Resize the image
    resized_image = cv2.resize(
        image, tuple(hw_wk[::-1]), interpolation=cv2.INTER_NEAREST
    )
    if not DO_PADDING or np.all(hw_out == hw_wk):
        return resized_image

    # Create a black image with the target size
    padded_image = np.zeros(shape_out, dtype=np.uint8)

    # Calculate the number of rows/columns to add as padding
    dh, dw = (hw_out - hw_wk) // 2
    # Add the resized image to the padded image, with padding on the left and right sides
    padded_image[dh : hw_wk[0] + dh, dw : hw_wk[1] + dw] = resized_image

    return padded_image

Answer 11

As George said above he wrote the best solution I have found, here I converted it into a function that resizes images while respecting the aspect ratio, it best works with squares, I don't need to change the square aspect as I'm training for deep-learning model.

def resize_me_with_ration(im , desired_size = 200):
    old_size = im.shape[:2] # old_size is in (height, width) format
    ratio = float(desired_size)/max(old_size)
    new_size = tuple([int(x*ratio) for x in old_size])
    # new_size should be in (width, height) format
    im = cv2.resize(im, (new_size[1], new_size[0]))
    delta_w = desired_size - new_size[1]
    delta_h = desired_size - new_size[0]
    top, bottom = delta_h//2, delta_h-(delta_h//2)
    left, right = delta_w//2, delta_w-(delta_w//2)
    color = [0, 0, 0]
    new_im = cv2.copyMakeBorder(im, top, bottom, left, right, cv2.BORDER_CONSTANT, value=color)
    return new_im
