CornerRadius exactly UIView

Question

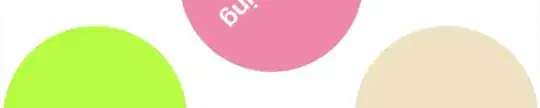

I want to clip the bounds of my UIView perfectly to interact as a circle, but however I set the corner radius, mask and clip to bounds and it shows correctly, it moves as a square, as you can see in the image:

The code I have used is:

let bubble1 = UIView(frame: CGRectMake(location.x, location.y, 128, 128))
bubble1.backgroundColor = color2
bubble1.layer.cornerRadius = bubble1.frame.size.width/2
bubble1.clipsToBounds = true
bubble1.layer.masksToBounds = true

What is wrong there that does still keeping the edges of the view?

PD: All the views moves dynamically, so when it moves and hit each other, it shows these empty space, acting as an square instead of as an circle

what's the problem? what do you mean by "it moves as a square"? — Ozgur Vatansever, Apr 24 '16 at 08:59
@ozgur The view is animated, and when it moves, it does not hit the other views, as you see in the image there is an empty space, which i think is the edges of the original square view. What I mean as a square is that it collapses as an square instead of as a circle, leaving these horrible empty space between each other. — Sergio, Apr 24 '16 at 09:00
did you try manually intersecting them by changing their frames so that you could see any white corners thoroughly? — Ozgur Vatansever, Apr 24 '16 at 09:02
@ozgur I set them with a method, but I set manually the x y position. However I have tried manually and it still showing these empty space between — Sergio, Apr 24 '16 at 09:04
@HackSaw I'm using UIDynamics so I'd like to keep my uiview in order to not have to change all code, or is much more easier using sprite? — Sergio, Apr 24 '16 at 10:01
may be this may help in making the selection:http://stackoverflow.com/a/23347609/4557505 — HardikDG, Apr 24 '16 at 10:57
@Pyro Thank you for your reply, this is exactly what It's happening here. Do you recommend me use sprite kit? My UIDynamics function is working as I want, the only problem is the rounded, and I have no idea of sprite kit :/ — Sergio, Apr 24 '16 at 12:24
It may depend on your code,to be honest, I didn't use Sprite kit, so don't know how many changes you have to make or it can solve your requirement properly — HardikDG, Apr 24 '16 at 12:33

score 1 · Answer 1 · answered Apr 24 '16 at 21:33

Finally, after all I found what to implement, and was just that class instead of UIView:

class SphereView: UIView {
    // iOS 9 specific
    override var collisionBoundsType: UIDynamicItemCollisionBoundsType {
        return .Ellipse
    }
}

Seen here: https://objectcoder.com/2016/02/29/variation-on-dropit-demo-from-lecture-12-dynamic-animation-cs193p-stanford-university/
