I have a data acquisition system that produces ASCII data. The data is acquired over USB with serial communication protocol (virtual serial, as the manufacturer of the box claims). I have a Python program/script that uses PySerial with a PySide GUI that plots the acquired data and saves it to HDF5 files. I'm having a very weird problem and I don't know how to tackle it. I wish you guys could help me and provide advice on how you would debug this problem.
How the problem shows up: The problem is that if I use a software like Eltima Data Logger, the data acquired looks fine. However, if I use my software (with PySerial), some chunks of the data seems to be missing. What's weird is that the missing chunk of the data is incompatible with the method of reading. I read line by line, and what is missing from the data is like 100 bytes or 64 bytes chunks that sometimes include newlines!!! I know what's missing because the device buffers the data on an SD Card before sending it to the computer. This made me believe for a long time that the hardware has a problem, until I used this software, Eltima, that showed that it's acquiring the data fine.

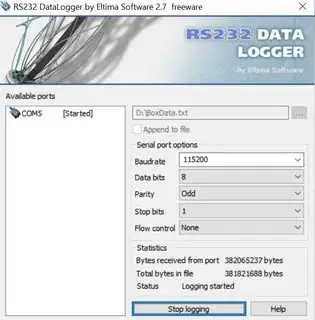

The following is the configuration of Eltima:
My configuration:
This whole thing is running in a QThread.
The following is the methods I use in my code (with some minor polishing to make it reusable here):
self.obj = serial.Serial()
self.obj.port = instrumentName
self.obj.baudrate = 115200
self.obj.bytesize = serial.EIGHTBITS
self.obj.parity = serial.PARITY_ODD
self.obj.stopbits = serial.STOPBITS_ONE
self.obj.timeout = 1
self.obj.xonxoff = False
self.obj.rtscts = False
self.obj.dsrdtr = False
self.obj.writeTimeout = 2
self.obj.open()
The algorithm I use for reading, is that I have a loop that looks for a specific header line, and once found, it keeps pushing lines into buffer until a specific end line is found; and this data is finally processed. Following is my code:
try:
# keep reading until a header line is found that indicates the beginning of a batch of data
while not self.stopped:
self.line = self.readLine()
self.writeDumpFileLine(self.line)
if self.line == DataBatch.d_startString:
print("Acquiring batch, line by line...")
self.dataStrQueue.append(self.line)
break
# after the header line, keep reading until a specific string is found
while not self.stopped:
self.line = self.readLine()
self.writeDumpFileLine(self.line)
self.dataStrQueue.append(self.line)
if self.line == DataBatch.d_endString:
break
except Exception as e1:
print("Exception while trying to read. Error: " + str(e1))
The self.writeDumpFileLine() takes the line from the device and dumps it in a file directly before processing for debugging purposes. These dump files have confirmed the problem of missing chunks.
The implementation of self.readLine() is quite simple:
def readLine(self):
lineData = decodeString(self.obj.readline())
lineData = lineData.replace(acquisitionEndlineChar, "")
return lineData
I would like to point out that I also have an implementation that pulls thousands of lines and parses them based on inWaiting(), and this method has the same problem too!
Now I'm starting to wonder: Is it PySerial? What else could be causing this problem?
Thank you so much for any efforts. If you require any additional information, please ask!
UPDATE:
Actually I have just confirmed that the problem can be reproduced by getting the system to lag a little bit. I use PyCharm to program this software, and while the program is running, if I press Ctrl+S to save, the GUI of PyCharm freezes a little bit (and hence its terminal). Repeating this many times causes the problem in a reproducible manner!!!!
