0

I am currently working on an i.MX6 SoC-based system... I've just built Qt 5.3.2 (through Yocto) configuring it for using gstreamer 1.0 as backend...

The compilation completes successfully, but unluckily I am not able to play HTML5 video from QWebKit...

Looking at the console output of my application (a simple QML-based application showing a WebView full-screen) I see the messages from gstreamer (so I think that the library is initialized and working)...

QML debugging is enabled. Only use this in a safe environment.
QEglFSImx6Hooks will set environment variable FB_MULTI_BUFFER=2 to enable double
 buffering and vsync.
 If this is not desired, you can override this via: export QT_EGLFS_IMX6_NO_FB_M
ULTI_BUFFER=1
[   53.214914] PU: Power-off latency exceeded, new value 35000 ns

====== AIUR: 4.0.3 build on Feb 26 2016 12:18:25. ======
        Core: MPEG4PARSER_06.09.10  build on Jan  8 2015 07:06:50
 file: /usr/lib/imx-mm/parser/lib_mp4_parser_arm11_elinux.so.3.2
------------------------
    Track 00 [video_0] Enabled
        Duration: 0:09:56.458304000
        Language: und
    Mime:
        video/x-h264, parsed=(boolean)true, alignment=(string)au, stream-format=
(string)avc, width=(int)853, height=(int)480, framerate=(fraction)24/1, codec_da
ta=(buffer)014d401effe10015274d401ea9181b07bcde00d4040406db0ad7bdf01001000428de0
9c8
------------------------
    Track 01 [subtitle]: Disabled
        Codec: 0, SubCodec: 0
------------------------
------------------------
    Track 02 [audio_0] Enabled
        Duration: 0:09:56.480000000
        Language: und
    Mime:
        audio/mpeg, mpegversion=(int)4, channels=(int)6, rate=(int)48000, bitrat
e=(int)448000, stream-format=(string)raw, codec_data=(buffer)11b0
------------------------

====== BEEP: 4.0.3 build on Feb 26 2016 12:18:37. ======
        Core: AAC decoder Wrapper  build on Apr 22 2014 09:43:50
 file: /usr/lib/imx-mm/audio-codec/wrap/lib_aacd_wrap_arm12_elinux.so.3
CODEC: BLN_MAD-MMCODECS_AACD_ARM_03.09.00_CORTEX-A8  build on Jun 19 2014 18:30:
32.

As you can see, gstreamer also reports the correct duration (length) of the video resource, but then I am not able to start the playback... The "play" button shown on screen is "greyed" and the duration of the media is reported as "00:00"... Even clicking on the "track bar" does not produce any results...

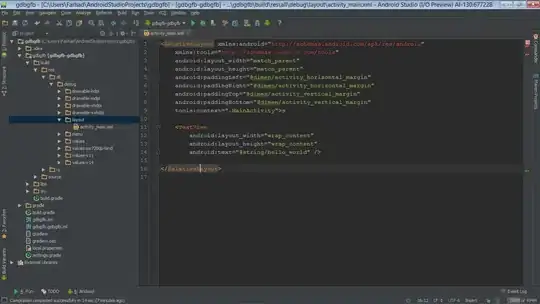

A screenshot of what is appearing on screen here follows: enter image description here

Any ideas?

Morix Dev
  • 2,700
  • 1
  • 28
  • 49
  • Have you correctly installed all gstreamer packages? Good, bad and ugly? Try with different video formats, for instance try with .avi. –  Feb 29 '16 at 09:25
  • @Lazar: thanks for your interest... The problem seems not to be gstreamer installation, since playing the video directly from linux command line (gst-launch) it works fine... rather I think it is a problem of "integration" between qwebkit and gstreamer... maybe I am missing something during the compilation? – Morix Dev Feb 29 '16 at 11:25
  • Try every video format, and tell me whats the output? –  Feb 29 '16 at 13:09
  • @Lazar: the output of a MOV/H.264 video is in the text of my mail, then you can find the output of a Theora OGG video [here](http://pastebin.com/16azt5Bd) and the output of a MP4 video [here](http://pastebin.com/ufhE9wFV). Thanks again for your interest. – Morix Dev Mar 01 '16 at 07:06

0 Answers0
