Controlling where to zoom in on the Mandelbrot set

Question

I wrote a simple fragment shader that renders a mandelbrot set. I am doing this in c and with opengl using glsl.

#version 330 core
in vec2 fCoord; //position.x position.y which is -1 to 1 on both axis
uniform int maxIterations;
uniform sampler1D mandiTexture;

out vec4 color;

void main()
{
   vec2 c, z;

    c.x = fCoord.x;
    c.y = fCoord.y;

        int i;
        z = vec2(0.0f, 0.0f);
        for(i=0; i<maxIterations; i++) {
            float x = (z.x * z.x - z.y * z.y) + c.x;
            float y = (z.y * z.x + z.x * z.y) + c.y;

            if((x * x + y * y) > 4.0) break;
            z.x = x;
            z.y = y;
        }

    vec4 tcolor;

    if (i == maxIterations)
    {
       tcolor = vec4(0.0f, 0.0f, 0.0f, 1.0f);
    }
       else
    {
       tcolor = texture(mandiTexture, float(i) / float(maxIterations));
    }
    color =  tcolor;
}

i've noticed playing around with the initial z value I get some different results but mostly they extend outside of my quad. With z as 0, 0 I get this result.

as you can see the left side of the set is not being rendered on the quad.

The c value is coming from the vertex shader so i assume it goes for -1 to 1 on both x and y axis and being interpolated in between.

My questions are:

• 1) How can I center the image on the quad? I am not really sure of that.
• 2) How can I say zoom in on some in on the mandelbrot set and a follow up, lets say I want to zoom in on a specific part of the set?
• 2B) Let's say I click the screen and get the position in NDC?
• 3) If I set my max iterations higher the set seems to get really jaggy, is that normal behavior?

I think if I can understand how to zoom in on the set I can figure out how to zoom in on a specific part but I am unsure.

edit, making sure that my code is

main.c

int maxIterations = 70;
int iterAmount = 1;

char* vshad, *fshad;

GLuint verticesBuffer, colorBuffer, vao, texCoordBuffer, indicesBuffer;
GLuint mandiTextureID, sp;

mat4_s vm, pm, opm, tm;
GLint viewMat = -1;
GLint projMat = -1;
GLint modelMat = -1;

GLint mandiTexture = -1;
GLint maxIterLoc = -1;



void initShaders(void)
{

    char* vertexShaderSource = getResource("vert.shad");
    char* fragmentShaderSource = getResource("frag.shad");

    vshad = readFile(vertexShaderSource);
    fshad = readFile(fragmentShaderSource);

    free(vertexShaderSource);
    free(fragmentShaderSource);
}

int run_game()
{
    current_utc_time(&start_time);
    while(game_running)
    {
        current_utc_time(&current_time);
        double frameTime = (diff(start_time,current_time).tv_sec + diff(start_time,current_time).tv_nsec) * .00000001;
        //printf("float time: %0.8f\n",frameTime);
        if ( frameTime > 0.25 )
        {
            frameTime = 0.25;
        }
        current_utc_time(&start_time);
        current_time = start_time;

        accumulator += frameTime;

        while ( accumulator >= dt )
        {
            accumulator -= dt;
            t += dt;
            //printf("fixed update dt: %0.8f\n",dt);
        }
        //render_state = currentState * alpha +  previousState * ( 1.0 - alpha );
        const double alpha = accumulator / dt;
        render();

        if(game_running < 1) { break; }
        while (SDL_PollEvent(&event))
        {
            switch (event.type) {
                case SDL_QUIT:
                    game_running = -1;
                    break;
                case SDL_KEYDOWN:
                    switch (event.key.keysym.sym)
                    {
                        case SDLK_ESCAPE:
                            game_running = -1;
                            break;
                    }
                    break;
            }
        }
    }
    return -1;
}

int main(int argc, char const *argv[]) {
    initShaders();

    mat4_identity(&vm);
    vec3_s eye    = {0, 0, 0};
    vec3_s center = {0, 0, -1};
    vec3_s up     = {0, 1, 0};

    mat4_lookAt(&vm, &eye, &center, &up);

    mat4_identity(&opm);
    mat4_ortho(&opm, 0, 200, 0, 200, 1, 100);

    mat4_identity(&tm);
    mat4_scalex(&tm, &tm, 100, 100, 0);
    mat4_translatex(&tm, &tm, 100.0f, 100.0f, -20);

    SDL_Surface* mandiSurface = loadPNG(getResource("mandi.png"));

    if(!mandiSurface) {
        printf("IMG_Load: %s\n", IMG_GetError());
        // handle error
    }

    GLenum Mode1 = GL_RGB;

    if(4 == mandiSurface->format->BytesPerPixel)
    {
        Mode1 = GL_RGBA;
        printf("mode change");
    }

    sp = getShaderProgram(vshad, fshad);
    r = newRenderable2d();

    glGenVertexArrays(1, &vao);
    glGenBuffers(1, &verticesBuffer);
    glGenBuffers(1, &colorBuffer);
    glGenBuffers(1, &indicesBuffer);
    glGenBuffers(1, &texCoordBuffer);

    glBindVertexArray(vao); //bind vertex array buffer

    glBindBuffer(GL_ARRAY_BUFFER, verticesBuffer);
    glBufferData(GL_ARRAY_BUFFER, sizeof(r->vertices), r->vertices, GL_STATIC_DRAW);

    //bind n setup indices
    glBindBuffer(GL_ELEMENT_ARRAY_BUFFER, indicesBuffer);
    glBufferData(GL_ELEMENT_ARRAY_BUFFER, sizeof(r->indices), r->indices, GL_STATIC_DRAW);
    glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(GLfloat), (GLvoid*)0);
    glEnableVertexAttribArray(0);
    glBindBuffer(GL_ARRAY_BUFFER, 0); //unbind indices

    //bind n setup colors
    glBindBuffer(GL_ARRAY_BUFFER, colorBuffer);
    glBufferData(GL_ARRAY_BUFFER, sizeof(r->colors), r->colors, GL_STATIC_DRAW);
    glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, 3 * sizeof(GLfloat), (GLvoid*)0);
    glEnableVertexAttribArray(1);
    glBindBuffer(GL_ARRAY_BUFFER, 0); //unbind colors

    //bind n setup texture coords
    glBindBuffer(GL_ARRAY_BUFFER, texCoordBuffer);
    glBufferData(GL_ARRAY_BUFFER, sizeof(r->texCoords), r->texCoords, GL_STATIC_DRAW);
    glVertexAttribPointer(2, 2, GL_FLOAT, GL_FALSE, 2 * sizeof(GLfloat), (GLvoid*)0);
    glEnableVertexAttribArray(2);
    glBindBuffer(GL_ARRAY_BUFFER, 0); //unbind texture coords

    glBindVertexArray(0); //unbind vertex array buffer

    //mandi 1d texture
    glGenTextures(1, &mandiTextureID);
    glBindTexture(GL_TEXTURE_1D, mandiTextureID);

    glTexParameteri(GL_TEXTURE_1D, GL_TEXTURE_WRAP_S, GL_REPEAT);
    glTexParameteri(GL_TEXTURE_1D, GL_TEXTURE_WRAP_T, GL_REPEAT);

    glTexParameteri(GL_TEXTURE_1D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);
    glTexParameteri(GL_TEXTURE_1D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);

    glTexImage1D(GL_TEXTURE_1D, 0, Mode1, mandiSurface->w, 0, Mode1, GL_UNSIGNED_BYTE, mandiSurface->pixels);
    glBindTexture(GL_TEXTURE_1D, 0);
    free(mandiSurface);


    while(run_game() >= 0);
    free(r);
    IMG_Quit();
    SDL_GL_DeleteContext(maincontext);
    SDL_DestroyWindow(window);
    return 0;
}

void render()
{
    glClearColor(0.2f, 0.3f, 0.3f, 1.0f);
    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

    //glPolygonMode(GL_FRONT_AND_BACK, GL_LINE);
    glUseProgram(sp);

    glActiveTexture(GL_TEXTURE0);
    glBindTexture(GL_TEXTURE_1D, mandiTextureID);//mandiTexture
    mandiTexture = getUniformLocation(sp, "mandiTexture");
    glUniform1i(mandiTexture, 0);


    glBindVertexArray(verticesBuffer);
    viewMat = getUniformLocation(sp, "viewMat");
    modelMat = getUniformLocation(sp, "modelMat");
    projMat = getUniformLocation(sp, "projMat");

    maxIterLoc = getUniformLocation(sp, "maxIterations");

    glUniformMatrix4fv(viewMat, 1, GL_FALSE, vm.m);
    glUniformMatrix4fv(projMat, 1, GL_FALSE, opm.m);
    glUniformMatrix4fv(modelMat, 1, GL_FALSE, tm.m);

    glUniform1i(maxIterLoc, maxIterations);

    glDrawElements(GL_TRIANGLES, 6, GL_UNSIGNED_INT, 0);
    glBindVertexArray(0);

    SDL_GL_SwapWindow(window);
}

int init_sdl(int width, int height, char* title, double fps)
{

if (SDL_Init(SDL_INIT_EVERYTHING) != 0)
  {
    SDL_Log("sdl failed to init");
    SDL_Quit();
    return -1;
  }

    SDL_GL_SetAttribute(SDL_GL_CONTEXT_MAJOR_VERSION, 3);
    SDL_GL_SetAttribute(SDL_GL_CONTEXT_MINOR_VERSION, 2);
    SDL_GL_SetAttribute(SDL_GL_CONTEXT_PROFILE_MASK, SDL_GL_CONTEXT_PROFILE_CORE);

    SDL_GL_SetAttribute(SDL_GL_DOUBLEBUFFER, 1);
    SDL_GL_SetAttribute(SDL_GL_DEPTH_SIZE, 24);


  window = SDL_CreateWindow(title, SDL_WINDOWPOS_CENTERED, SDL_WINDOWPOS_CENTERED, width, height, SDL_WINDOW_OPENGL | SDL_WINDOW_SHOWN);
  if(window == NULL)
  {
    SDL_Log("sdl failed to create window");
    SDL_Quit();
    return -1;
  }

  maincontext = SDL_GL_CreateContext(window);
  if(maincontext == NULL)
  {
    SDL_Log("sdl failed to create opengl context");
    SDL_Quit();
    return -1;
  }
    glEnable(GL_CULL_FACE);
    glCullFace(GL_BACK);
    SDL_GL_SetSwapInterval(1);


  return 1;
}

vertex shader

#version 330 core

layout (location = 0) in vec3 position;
layout (location = 1) in vec3 icolor;
layout (location = 2) in vec2 vTexCoord;

uniform mat4 modelMat;
uniform mat4 viewMat;
uniform mat4 projMat;

out vec4 fcolor;
out vec2 fTexCoord;
out vec2 fCoord;

void main()
{
    gl_Position =  projMat * viewMat * modelMat * vec4(position, 1.0);

    fCoord = vec2(position);
    fTexCoord = vTexCoord;
    fcolor = vec4(icolor, 1.0f);
}

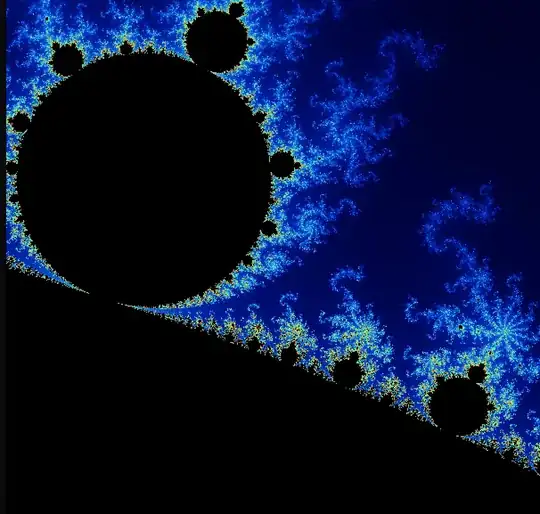

thanks to @samgak I was able to fixed the issues that I was having and now I am adding some shots of the Mandelbrot set.

Answer 1

The c value is coming from the vertex shader so i assume it goes for -1 to 1 on both x and y axis and being interpolated in between.

That's correct.

1) How can I center the image on the quad? I am not really sure of that.

You just need to zoom out by a factor of 1.5 and center it on -0.5. The interesting parts of the Mandelbrot set extend from roughly -2 to 1 on the real axis and -i to i on the imaginary axis:

2) How can I say zoom in on some in on the mandelbrot set and a follow up, lets say I want to zoom in on a specific part of the set? 2B) Let's say I click the screen and get the position in NDC?

Put back the 2 uniforms that you had in your previous version:

uniform vec2 center;
uniform float scale;

Declare variables to hold these values in your C code and set them with glUniform2f and glUniform1f. To center the set the initial values should be -0.5, 0.0 for the center, and 1.5 for the scale (larger values zoom out). Then in your fragment shader, just apply them like this:

c = (fCoord * scale) + center;

To click the screen and zoom in on a particular location, turn the mouse location into a value between -1,-1 and 1,1 based on its position on the screen then apply the above equation to it to find the location you clicked on. Set that as the new center and multiply scale by a value less than 1 to zoom in a given amount.

3) If I set my max iterations higher the set seems to get really jaggy, is that normal behavior?

The screenshot you posted looks ok. It would probably look better if you implemented some kind of multi-sampling in your fragment shader (e.g. calculate several values in a loop and add them together so that each pixel is actually the average of a 2x2 or 4x4 block of pixels etc).

If you zoom in far enough eventually you will run into the limits of the precision of the floating point numbers used by the GPU.
