Using windowTranslucentStatus with CollapsingToolbarLayout

Question

I'm trying to get a similar effect to what is seen on google play.

I've got the below layout to show a transparent toolbar with an image behind it. When the user scrolls there is a parallax effect on the imageview as it scrolls off the screen. The toolbar returns when ever the user scrolls up, with the imageview only returning when the user gets to the lop of the list.

This all works great.

<android.support.design.widget.CoordinatorLayout
    android:id="@+id/main"
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <android.support.v7.widget.RecyclerView
        android:id="@+id/recyclerView"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        app:layout_behavior="@string/appbar_scrolling_view_behavior" />

    <android.support.design.widget.AppBarLayout
        android:layout_height="wrap_content"
        android:layout_width="match_parent"
        android:background="@color/background_material_dark">
        <android.support.design.widget.CollapsingToolbarLayout
            android:id="@+id/collapsingToolbarLayout"
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:minHeight="?attr/actionBarSize"
            app:layout_scrollFlags="scroll|enterAlways|enterAlwaysCollapsed"
            app:statusBarScrim="#09b"
            app:contentScrim="#09f">
            <ImageView
                android:id="@+id/img"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:src="@drawable/location_banner"
                app:layout_collapseMode="parallax"
                app:layout_collapseParallaxMultiplier="0.7"
                />
            <android.support.v7.widget.Toolbar
                android:id="@+id/toolbar"
                android:layout_height="?attr/actionBarSize"
                android:layout_width="match_parent"
                app:layout_collapseMode="pin"
                android:fitsSystemWindows="true"
                app:theme="@style/ThemeOverlay.AppCompat.ActionBar"
                app:popupTheme="@style/ThemeOverlay.AppCompat.Dark"/>
        </android.support.design.widget.CollapsingToolbarLayout>
    </android.support.design.widget.AppBarLayout>

</android.support.design.widget.CoordinatorLayout>

The issue

When I set windowTranslucentStatus to true. The contents in the view move up to be under the status bar, but the contents of the CollapsingToolbarLayout moves up twice the height of the status bar(CollapsingToolbarLayout retains correct height).

This means some of the top of the image is cut off and the actionbar now appears under the status bar instead of below it. As a side effect of this there is now padding at the bottom of the CollapsingToolbarLayout the same height as the status bar

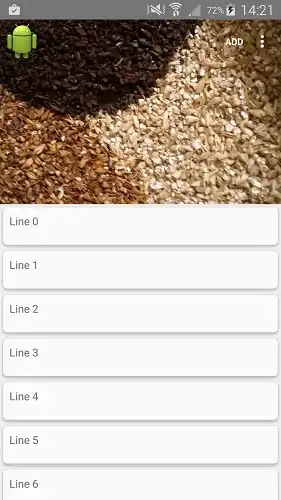

This is what it looks like without windowTranslucentStatus. Everything here works fine enter image description here

windowTranslucentStatus set to true enter image description here

User scrolling up from lower in list (not at top) enter image description here

how did you solve this issue. Unfortunately, I am getting this error, can you please share me your solution? — Noundla Sandeep, Jul 03 '16 at 15:29
Google break this every time they do a new release of the support library, but you can find a different hack each time to get around it (very frustrating). 23.1.1 is a good bet to have it working ok. More details in the second last post here https://code.google.com/p/android/issues/detail?id=202779&can=1&q=reporter%3Amichaeldelaney%2Chipagesgroup.com.au&colspec=ID%20Status%20Priority%20Owner%20Summary%20Stars%20Reporter%20Opened — Stimsoni, Jul 03 '16 at 22:35
yes, earlier(with old build tools) it was working fine if I keep fitsSystemWindows=true. However, it has broken in the latest build tools. After struggling a lot, I removed thefitsSystemWindows from root layout and now It is working as expected. Thanks for the reply :) — Noundla Sandeep, Jul 05 '16 at 09:19
I noticed that a certain paddingTop was added to my RecyclerView when using fitSystemWindow. Eventually I've implemented a hack which resets the paddingTop to zero manually in a custom recycler. Now it works fine. Not the best solution but at least it's working for now... — TheWhiteLlama, Sep 25 '17 at 22:09

score 25 · Answer 1 · answered Oct 08 '15 at 00:03

25

There has now been an update to the design library. I'm guessing that the issue posted above was a bug.

If you update the design library to the latest version this issue no longer occurs.

I have now removed all fitsSystemWindows="true" except for the ImageView (as that needs to display under the status bar).

I have also removed the minus padding from the Toolbar.

This is my theme for 21+

<style name="AppTheme" parent="Theme.AppCompat.Light.NoActionBar">
    <item name="android:windowTranslucentStatus">true</item>
    <item name="android:windowActionBarOverlay">true</item>
    <item name="android:windowContentOverlay">@null</item>
    <item name="android:textColorPrimary">@android:color/white</item>
</style>

It all works as expected now

answered Oct 08 '15 at 00:03

Stimsoni

3,166
2
29
22

Sorry to bump this @Stimsoni, but is this fully working?? For me, this works with the imageview going behind the statusbar, but when I scroll the content down to show the toolbar, nothing is drawn behind the statusbar. – Brandon Slaght Feb 25 '16 at 13:31
That sounds right. When the toolbar comes back into view so does the status bar. If you want the content to be behind the toolbar but reappear above it you can try adding a transparent scrim on the status bar. I haven't tested this as yet though – Stimsoni Feb 25 '16 at 20:24
1

I love comments like this. Doesn't work????? Sooooo..... what doesn't work? any errors? what's happening? – Stimsoni Nov 13 '18 at 03:34

David Jin Han · Accepted Answer · 2015-06-26T05:29:52.967

Add fitsSystemWindows to layout and set to true.

Update

Sorry for my incomplete answer. You should add fitsSystemWindows="true" to layout xml like below codes.

<android.support.design.widget.CoordinatorLayout
    android:id="@+id/main"
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:fitsSystemWindows="true">

    <android.support.v7.widget.RecyclerView
        android:id="@+id/recyclerView"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        app:layout_behavior="@string/appbar_scrolling_view_behavior" />

    <android.support.design.widget.AppBarLayout
        android:layout_height="wrap_content"
        android:layout_width="match_parent"
        android:background="@color/background_material_dark"
        android:fitsSystemWindows="true">

        <android.support.design.widget.CollapsingToolbarLayout
            android:id="@+id/collapsingToolbarLayout"
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:minHeight="?attr/actionBarSize"
            app:layout_scrollFlags="scroll|enterAlways|enterAlwaysCollapsed"
            app:statusBarScrim="#09b"
            app:contentScrim="#09f"
            android:fitsSystemWindows="true">

            <ImageView
                android:id="@+id/img"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:src="@drawable/location_banner"
                app:layout_collapseMode="parallax"
                app:layout_collapseParallaxMultiplier="0.7"
                android:fitsSystemWindows="true"/>

            <android.support.v7.widget.Toolbar
                android:id="@+id/toolbar"
                android:layout_height="?attr/actionBarSize"
                android:layout_width="match_parent"
                app:layout_collapseMode="pin"
                android:fitsSystemWindows="true"
                app:theme="@style/ThemeOverlay.AppCompat.ActionBar"
                app:popupTheme="@style/ThemeOverlay.AppCompat.Dark"/>

        </android.support.design.widget.CollapsingToolbarLayout>

    </android.support.design.widget.AppBarLayout>

</android.support.design.widget.CoordinatorLayout>

It could be helpful to post a code example like: `fitsSystemWindows = true` or something like that — tvgemert, Jun 24 '15 at 11:20
Where abouts do i add it. I did some testing with this and it didn't quite work. As you can see it has been added to toolbar in the xml posted. I found that this did add some padding, but it only pushed the toolbar down half the amount expected. It also didn't fix the image being cut off — Stimsoni, Jun 25 '15 at 21:24
Sorry for the delay in response. This got me most of the way there thank you, but still didn't move the toolbar down. I had to combine your answer with Henry's to get me over the line. For anyone else reading I added "fitsSystemWindows" to the CoordiatorLayout, AppBarLayout and ImageView. I then had to add android:layout_marginTop="-48dp"(standard toolbar height) to the Toolbar view as mentioned by Henry's answer. — Stimsoni, Jul 20 '15 at 23:02
I didnt know app:statusBarScrim was a property until i saw this answer. It helped me fix another bug i found : https://www.reddit.com/r/androiddev/comments/8xai0g/weekly_questions_thread_july_09_2018/e2452a9/ — Etienne Lawlor, Jul 10 '18 at 08:01

score 6 · Answer 3 · answered Jan 12 '16 at 11:57

The best way to achieve this is like Stimsoni said

Add android:fitsSystemWindows="true" to the CoordiatorLayout, AppBarLayout and ImageView

<android.support.design.widget.CoordinatorLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:id="@+id/main_content"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:fitsSystemWindows="true">

<android.support.design.widget.AppBarLayout
    android:id="@+id/appBar"
    android:fitsSystemWindows="true"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:theme="@style/ThemeOverlay.AppCompat.Dark.ActionBar">

    <android.support.design.widget.CollapsingToolbarLayout
        android:id="@+id/collapsing_toolbar"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        app:contentScrim="?attr/colorPrimary"
        app:layout_scrollFlags="scroll|exitUntilCollapsed|snap">

        <ImageView
            android:id="@+id/background"
            android:layout_width="match_parent"
            android:layout_height="256dp"
            android:scaleType="centerCrop"
            android:fitsSystemWindows="true"
            app:layout_collapseMode="parallax"
            android:alpha="0.75"
            android:src="@drawable/foo"/>

        <android.support.v7.widget.Toolbar
            android:id="@+id/toolbar"
            android:layout_width="match_parent"
            android:layout_height="?attr/actionBarSize"
            app:popupTheme="@style/ThemeOverlay.AppCompat.Light"
            app:layout_collapseMode="pin"/>
    </android.support.design.widget.CollapsingToolbarLayout>
</android.support.design.widget.AppBarLayout>...

This was causing a bug in the newer library ('com.android.support:design:27.1.1') version where my view pager had too much padding on top. I've removed the android:fitsSystemWindows="true" from the coordinator layout and the behavior is as expected. — mparkes, Sep 09 '18 at 06:03

score 4 · Answer 4 · answered Jun 30 '15 at 08:51

4

Once the status bar is transparent and the free to use by the activity, the toolbar is pushed top to occupy that space. To fix this you need to manually move the toolbar to the original spot.

Add the below tags to the "android.support.v7.Widget.Toolbar" view :

android:layout_height="48dp" // Whatever the height of the toolbar you want
android:layout_marginTop="-48dp" // Negative of the height of the toolbar

answered Jun 30 '15 at 08:51

Henry

17,490
7
63
98

Thanks Henry, I had to combine your answer with David's to get this to work properly. – Stimsoni Jul 20 '15 at 23:04

score 4 · Answer 5 · edited Jun 01 '17 at 08:21

Extend the CoordinatorLayout and call setOnApplyWindowInsetsListener in your constructor to reset inset values. Here is the code:

public class CustomCoordinatorLayout extends CoordinatorLayout {
    public CustomCoordinatorLayout(Context context) {
        super(context);
        init();
    }

    public CustomCoordinatorLayout(Context context, AttributeSet attrs) {
        super(context, attrs);
        init();
    }

    public CustomCoordinatorLayout(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        init();
    }

    private void init() {
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.KITKAT_WATCH) {
            setOnApplyWindowInsetsListener(new OnApplyWindowInsetsListener() {
                @Override
                public WindowInsets onApplyWindowInsets(View view, WindowInsets windowInsets) {
                    WindowInsets replaced = windowInsets.replaceSystemWindowInsets(0, 0, 0, 0);
                    return replaced;
                }
            });
        }
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        super.onMeasure(widthMeasureSpec, heightMeasureSpec);
    }
}

replaceSystemWindowInsets requires api> 20 – Simon Oct 21 '16 at 20:20 — Simon, Oct 21 '16 at 20:20

score 2 · Answer 6 · answered Jun 18 '15 at 06:18

2

I have the same issue, but there is one thing i know.

If you what to have a transparent statusbar on a normal toolbar, you need to add a 16dp padding top.

answered Jun 18 '15 at 06:18

alvarlagerlof

1,516
1
18
27

2

Are you saying for the toolbar height you aren't using "?attr/actionBarSize". you have that height + 16dp. Having this padding without the height would mean the bottom of the contents in toolbar would be pushed off the bottom of the view. – Stimsoni Jun 19 '15 at 02:54
Thanks, at the end we need a 16dp paddingTop, removing the ```fitsSystemWindow=true``` from the layout and activating ```true``` to work. – Vincent D. May 04 '16 at 16:11

score -2 · Answer 7 · answered Aug 05 '16 at 13:04

-2

Just Change the color of status bar in Styles.XML(v21)

<item name="android:statusBarColor">@android:color/transparent</item>

or remove the above line in that XML it work perfect.

answered Aug 05 '16 at 13:04

Praveen Attigeri

35
6
