Question 1
In the description, they only show what to put in the manifest, and
they mention using "ChooserTargetService". What should be done in
order to provide the texts and images?
Start by extending ChooserTargetService. You'll need to return a List of ChooserTarget and how you create those targets is entirely up to you.
public class YourChooserTargetService extends ChooserTargetService {
@Override
public List<ChooserTarget> onGetChooserTargets(ComponentName targetActivityName, IntentFilter matchedFilter) {
final List<ChooserTarget> targets = new ArrayList<>();
for (int i = 0; i < length; i++) {
// The title of the target
final String title = ...
// The icon to represent the target
final Icon icon = ...
// Ranking score for this target between 0.0f and 1.0f
final float score = ...
// PendingIntent to fill in and send if the user chooses this target
final PendingIntent action = ...
targets.add(new ChooserTarget(title, icon, score, action));
}
return targets;
}
}
AndroidManifest
Now you'll need to declare your ChooserTargetService in your AndroidManifest and do two things:
- Bind the
Service using the android.permission.BIND_CHOOSER_TARGET_SERVICE permission
- Include an
IntentFilter with the android.service.chooser.ChooserTargetService action
For example:
<service
android:name=".YourChooserTargetService"
android:label="@string/yourLabel"
android:permission="android.permission.BIND_CHOOSER_TARGET_SERVICE">
<intent-filter>
<action android:name="android.service.chooser.ChooserTargetService" />
</intent-filter>
</service>
In the Activity that's going to handle the Intent, you'll need to add the meta-data tag android.service.chooser.chooser_target_service. For example:
<activity android:name=".YourShareActivity">
<intent-filter>
<action android:name="android.intent.action.SEND" />
<category android:name="android.intent.category.DEFAULT" />
<data android:mimeType="text/plain" />
</intent-filter>
<meta-data
android:name="android.service.chooser.chooser_target_service"
android:value=".YourChooserTargetService" />
</activity>
From here, it's mostly a matter of calling Intent.createChooser and then handling the data if the user chooses your application.
final Intent target = new Intent(Intent.ACTION_SEND);
target.setType("text/plain");
target.putExtra(Intent.EXTRA_TITLE, "Your title");
target.putExtra(Intent.EXTRA_TEXT, "Your text");
startActivity(Intent.createChooser(target, "ChooserTargetService Example"));

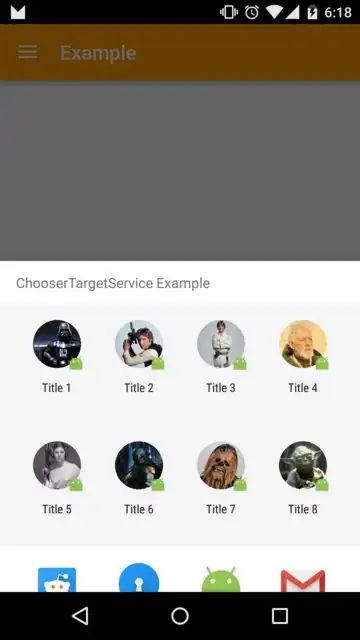

Results
Things to note
The ranking score for each ChooserTarget is used to sort the targets, but is only used if the UI decides to use it. As per ChooserTarget.getScore
The UI displaying the target may take this score into account when
sorting and merging targets from multiple sources
Also, as far as I know, this feature isn't actually implemented yet in the Android MNC preview. The ChooserActivity contains a TODO for it:
TODO: Maintain sort by ranking scores
When creating a new android.graphics.drawable.Icon, you'll need to use one of the static initializers.
Icon.createWithBitmap();
Icon.createWithContentUri()
Icon.createWithData()
Icon.createWithFilePath()
Icon.createWithResource()
Question 2
I'd like to know how to do the opposite : how can I query all of those
"direct-share" items (images, texts, and intents) and be able to show
them on a customized dialog?
The data supplied to ChooserTargetService.onGetChooserTargets is dynamic. So, there's no direct way to access those items, as far as I know.
