Bar overlapping to Y-axis when Panned in the aChartEngine

Question

I am working on the application which display the bar graph in it. The bar graph are draw according dynamically values are received to them, the bar graph data is in MB/KB.

Code Snippet :-

private void graphinit(ArrayList<Integer> graphInDataList, ArrayList<Integer> graphOutDataList)
{
    mRenderer.setXAxisMin(0);
    mRenderer.setXAxisMax(graphXMaxLimit);
    mRenderer.setYAxisMin(0);
    // mRenderer.setYAxisMax(100);

    int max = getMaximumNumber(graphInDataList, graphOutDataList);
    mRenderer.setYAxisMax(max);

    double[] limits = new double[] {0, graphXMaxLimit, 0, max};
    mRenderer.setPanLimits(limits);

    mRenderer.setBarSpacing(0.3f);

    mRenderer.setDisplayChartValues(false);
    mRenderer.setShowAxes(true);
    mRenderer.setShowLegend(false);
    mRenderer.setShowLabels(true);
    mRenderer.setPanEnabled(true, false);
    mRenderer.setClickEnabled(false);
    mRenderer.setZoomEnabled(true, false);

    mRenderer.setZoomButtonsVisible(false);
    mRenderer.setShowGrid(false);

    mRenderer.setYLabelsPadding(3);
    mRenderer.setXTitle("Analysis Duration in mins");
    mRenderer.setYTitle("Data in KB");

    // mRenderer.setXAxisMin(-0.5);
    mRenderer.setYLabelsAlign(Align.RIGHT);

    // set up the margin to the graph
    mRenderer.setMargins(new int[] { 5, 40, 0, 5});

    // mRenderer.setXAxisMin(1);
    mRenderer.setXAxisMin(-0.5);
    // mRenderer.setXAxisMax(60);

    inDataSeries = new XYSeries("InData");
    for (int i = 0; i < graphInDataList.size(); i++) {
        inDataSeries.add(i, graphInDataList.get(i));
    }

    outDataSeries = new XYSeries("OutData");
    for (int i = 0; i < graphOutDataList.size(); i++) {
        outDataSeries.add(i, graphOutDataList.get(i));
    }

    mDataset.addSeries(inDataSeries);
    mDataset.addSeries(outDataSeries);

    if(graphInDataList.size()>0){
        right_left=(int) (graphInDataList.size()/60);
    }

    XYSeriesRenderer in_data_renderer = new XYSeriesRenderer();
    in_data_renderer.setColor(Color.GREEN);

    XYSeriesRenderer out_data_renderer = new XYSeriesRenderer();
    out_data_renderer.setColor(Color.RED);

    mRenderer.addSeriesRenderer(in_data_renderer);
    mRenderer.addSeriesRenderer(out_data_renderer);

    mRenderer.setApplyBackgroundColor(true);
    mRenderer.setBackgroundColor(Color.TRANSPARENT);
    mRenderer.setMarginsColor(getResources().getColor(R.color.transparent_background));
}

EDIT :

Created in onResume()

     if (mChartView == null) {

        LinearLayout layout = (LinearLayout) findViewById(R.id.linear_chart);
        mChartView = ChartFactory.getBarChartView(this, mDataset,
                mRenderer, Type.STACKED);

        Logger.vLog("HistoryDetailScreen", "mChartView : "+mChartView);

        layout.addView(mChartView);

        @SuppressWarnings("unused")
        boolean enabled = mDataset.getSeriesCount() > 0;

    } else {
        mChartView.repaint();
    }

I used graphinit(arrlist1, arrlist2) method in the onCreate().

PROBLEM :

When we do panning on the bar graph, bar overlapping to the Y-axis.

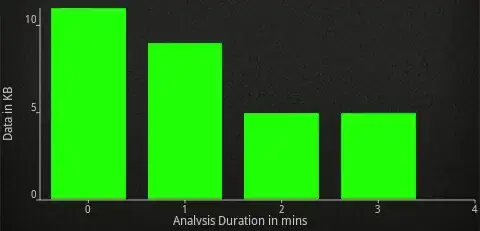

SCREENSHOT Default Screen :

enter image description here

SCREENSHOT Panned Screen :

enter image description here

I also set the pan limits for that. What is problem? Thanks in advance..

Increase ur setYAxisMax(); because values are crossing the max. — keshav, Jan 14 '14 at 14:32
From where u are getting values to draw bars get max from there. — keshav, Jan 15 '14 at 04:53
Hi! would you like to create custom bar view without using any external library. — Vijju, Jan 23 '14 at 09:12
u must have to create you own logic for this issue. In achartengine i also face the same issue. — Vijju, Jan 24 '14 at 09:56

score 0 · Answer 1 · answered Nov 14 '14 at 11:35

0

This is work for me...

mRenderer.setXAxisMin(-0.5); //for first bar overlaps y-axis

answered Nov 14 '14 at 11:35

Kishan Vaghela

7,678
5
42
67

Dan D. · Answer 2 · 2014-01-20T07:50:21.697

You are setting the pan limits correctly, but please note that the bars themselves are not having a width of zero units. Given this, you would have to set the X axis minimum value to something below the minimum X pan limit, for instance -0.5.

You can even change the pan limit value at runtime, by listening for zoom events and changing the limits accordingly.

mRenderer.setPanLimits(new double[] {-0.5, graphXMaxLimit, 0, max});

mChartView.addZoomListener(new ZoomListener() {
  public void zoomApplied(ZoomEvent e) {
    double currentMinX = mRenderer.getXAxisMin();
    double currentMaxX = mRenderer.getXAxisMax();
    double coef = (graphXMaxLimit + 0.5) / (currentMaxX - currentMinX);
    mRenderer.setPanLimits(new double[] {-0.5 / coef, graphXMaxLimit, 0, max});
  }

  public void zoomReset() {
    Log.i("Zoom", "Reset");
  }
}, true, true);

Still facing same issue. – Swapnil Sonar Jan 20 '14 at 08:37 — Swapnil Sonar, Jan 20 '14 at 08:37
