Make Summary Report Jmeter output in CSV what it shows in table

Question

The Filename given to store the results of Jmeter Summary report should (as I understand) store the same info I see on the screen . But instead it stores a short response of the HTTP request sent like this :

<httpSample t="72" lt="66" ts="1305479685437" s="true" lb="login" rc="200" rm="OK" tn="Virtual users 1-1" dt="text" by="12978">

I defined the Filename as a .csv file

Any idea how to turn it into a replica of the screen Summary report ( sample, average, Min, Max,Std.Dev etc) ?

get this report

score 4 · Answer 1 · answered Aug 20 '14 at 11:08

To make a summary report of the JMeter output you need to do the following:

Make sure that in the jmeter.properties file the 'Results file configuration' is not in comment and all the fields you want to use are marked as true as shown below.

<pre><code>
    #---------------------------------------------------------------------------
    # Results file configuration
    #---------------------------------------------------------------------------

    # This section helps determine how result data will be saved.
    # The commented out values are the defaults.

    # legitimate values: xml, csv, db.  Only xml and csv are currently supported.
    jmeter.save.saveservice.output_format=csv


    # true when field should be saved; false otherwise

    # assertion_results_failure_message only affects CSV output
    #jmeter.save.saveservice.assertion_results_failure_message=false
    #
    # legitimate values: none, first, all
    #jmeter.save.saveservice.assertion_results=none
    #
    jmeter.save.saveservice.data_type=false
    jmeter.save.saveservice.label=true
    jmeter.save.saveservice.response_code=true
</code></pre>

Then configure the Summary Report by clicking on Configure button. enter image description here

score 3 · Answer 2 · edited Jun 15 '16 at 07:37

3

It's possible, if you want to turn it into a replica of the screen Summary report ( sample, average, Min, Max,Std.Dev etc) just click the Save Table Data button and then save it as .csv format.

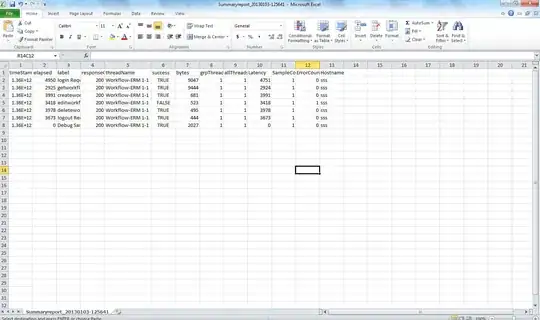

You will get .csv file like this :

enter image description here

edited Jun 15 '16 at 07:37

Pirate X

3,023
5
33
60

answered Jun 15 '16 at 06:28

Aditya Wiratmo

51
2

this seems like a reasonable answer to me, and in fact, the answer I came here for. – krock Jul 25 '17 at 09:14
This is the perfect answer. Button is bottom of screen and barely noticable. – Anoop Aug 24 '22 at 04:22

score 2 · Answer 3 · edited Dec 07 '15 at 18:35

2

Jp@gc has command-line tool for exporting jmeter reports to csv. Feed saved jtl file to it and use Aggregate report mode. See. JMeterPluginsCMD Command Line Tool docs for help

edited Dec 07 '15 at 18:35

reevesy

3,452
1
26
23

answered Jan 03 '13 at 14:08

Andrey Pokhilko

2,578
18
19
