Java Swing accordion in Nimbus look and feel

Question

While I was reading Oracle Swing documentation, I came across this example of a set of components displaying the Nimbus Look and Feel named SwingSet3. I'm new to Swing. Can someone tell me if the accordion in the sidebar is a Swing component or not?

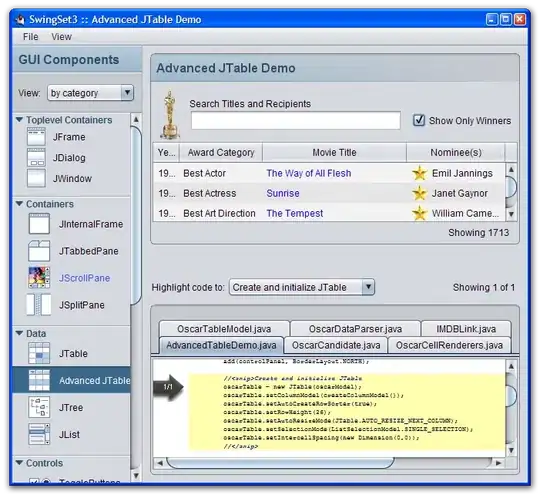

SwingSet3

http://docs.oracle.com/javase/tutorial/uiswing/lookandfeel/nimbus.html the image link — Tarik, Apr 05 '12 at 13:58

score 7 · Accepted Answer · answered Apr 05 '12 at 15:36

7

It is not a standard swing component.

You can have a look at the source code for the SwingSet3 demo here. The component on the left is a composite component made out of various other components such as JPanel, JLabel and JButton. There is a custom com.sun.swingset3.utilities.CollapsiblePanel too.

answered Apr 05 '12 at 15:36

Qwerky

18,217
6
44
80

1

true - but (biased :-) me wouldn't recommend using it as it's a) demo code b) unmaintained – kleopatra Apr 06 '12 at 10:25

score 3 · Answer 2 · answered Apr 06 '12 at 10:22

3

A similar component is the JXTaskPane/-Container which is part of SwingX You can have a look at a demo inspired by SwingSet3.

Note that SwingX is actively maintained, its current release 1.6.3 available at maven.java.net

answered Apr 06 '12 at 10:22

kleopatra

51,061
28
99
211

Thanks for the link. I was also comparing this to the JavaFX Accordion class. Both the JXTaskPane and the swingset3 CollapsiblePanel seem superior to me, at the moment, than the JavaFX Accordion because it, strangely, only allows one sub-component to be open at a time. – Enwired Jun 26 '12 at 19:50
@Enwired they are different components: an accordion (or outlook bar) is designed to show exactly one page, just as a tabbedPane. BTW (cough): the 1.6.3 release of SwingX has a show-stopper bug regarding JXCollapsible/JXTaskPane (http://java.net/jira/browse/SWINGX-1494). On the bright side: it is fixed in the svn version. – kleopatra Jun 27 '12 at 09:36
