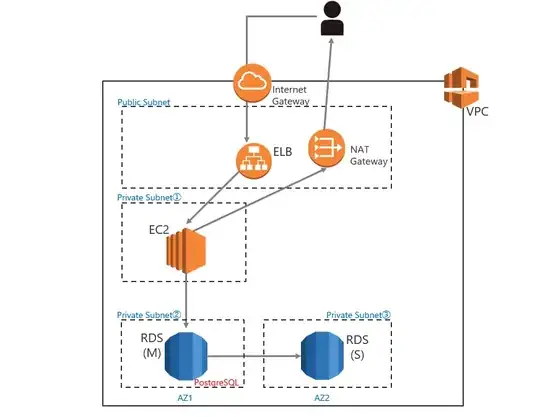

I'm trying to build a system like this one:

click here

I can't connect to the Instance in private public through ALB. I checked my cloudformation code several times and still couldn't find problem. Please help me.

AWSTemplateFormatVersion: 2010-09-09

Metadata:

  AWS::CloudFormation::Interface:

    ParameterGroups:
      - Label:
         default: "system"

Parameters:
  KeyNameA:
    Type: AWS::EC2::KeyPair::KeyName



  SSHLocation:
      Type: String
      MinLength: 9
      MaxLength: 18
      Default: 0.0.0.0/0
      AllowedPattern: (\d{1,3})\.(\d{1,3})\.(\d{1,3})\.(\d{1,3})/(\d{1,2})


Resources:

  VPC:
    Type: AWS::EC2::VPC
    Properties:
      CidrBlock: 10.1.0.0/16
      EnableDnsSupport: True
      EnableDnsHostnames: True
      InstanceTenancy: default
      Tags:
      - Key: Name
        Value: !Sub ${AWS::StackName}-VPC

  InternetGateway:
    Type: AWS::EC2::InternetGateway
    DependsOn: VPC



  AttachGateway:
    Type: AWS::EC2::VPCGatewayAttachment
    Properties:
      VpcId: !Ref VPC
      InternetGatewayId: !Ref InternetGateway



  PublicSubnetA:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref VPC
      CidrBlock: 10.1.10.0/24
      AvailabilityZone: !Select [ 0, !GetAZs ]
      MapPublicIpOnLaunch: True
      Tags:
      - Key: Name
        Value: !Sub ${AWS::StackName}-Public-A



  PublicSubnetB:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref VPC
      CidrBlock: 10.1.30.0/24
      AvailabilityZone: !Select [ 1, !GetAZs ]
      MapPublicIpOnLaunch: True
      Tags:
      - Key: Name
        Value: !Sub ${AWS::StackName}-Public-B



  PrivateSubnetA:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref VPC
      CidrBlock: 10.1.20.0/24
      MapPublicIpOnLaunch: False
      AvailabilityZone: !Select [ 0, !GetAZs ]
      Tags:
      - Key: Name
        Value: !Sub ${AWS::StackName}-Private-A



  PublicRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
      - Key: Name
        Value: Public




  PublicRoute:
    Type: AWS::EC2::Route
    DependsOn: AttachGateway
    Properties:
      RouteTableId: !Ref PublicRouteTable
      DestinationCidrBlock: 0.0.0.0/0
      GatewayId: !Ref InternetGateway


  PrivateRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
      - Key: Name
        Value: Private



  PrivateRoute:
    Type: AWS::EC2::Route
    Properties:
      RouteTableId: !Ref PrivateRouteTable
      DestinationCidrBlock: 0.0.0.0/0
      NatGatewayId: !Ref NATGateway


  NATGateway:
    Type: AWS::EC2::NatGateway
    Properties:
      AllocationId: !GetAtt ElasticIPAddress.AllocationId
      SubnetId: !Ref PublicSubnetA


  ElasticIPAddress:
    Type: AWS::EC2::EIP
    Properties:
      Domain: VPC



  PublicSubnetARouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PublicSubnetA
      RouteTableId: !Ref PublicRouteTable


  PublicSubnetBRouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PublicSubnetB
      RouteTableId: !Ref PublicRouteTable


  PrivateSubnetARouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref PrivateSubnetA
      RouteTableId: !Ref PrivateRouteTable



  TargetGroup:
    Type: AWS::ElasticLoadBalancingV2::TargetGroup
    Properties:
      VpcId: !Ref VPC
      Name: WebInstanceTargetGroup
      Protocol: HTTP
      Port: 80
      TargetType: instance
      Targets:
      - Id: !Ref WebInstance
        Port: 80



  ALBalancerSG:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupDescription: SG for ALBSG
      GroupName: ALBSG
      VpcId: !Ref VPC
      SecurityGroupIngress:
      - IpProtocol: tcp
        FromPort: 80
        ToPort: 80
        CidrIp: 0.0.0.0/0


  ALB:
    Type: AWS::ElasticLoadBalancingV2::LoadBalancer
    Properties:
      Name: PublicALB
      Scheme: internet-facing
      IpAddressType: ipv4
      Subnets:
        - !Ref PublicSubnetA
        - !Ref PublicSubnetB
      SecurityGroups:
        - !Ref ALBalancerSG

  Listener:
    Type: AWS::ElasticLoadBalancingV2::Listener
    Properties:
      LoadBalancerArn: !Ref ALB
      Port: 80
      Protocol: HTTP
      DefaultActions:
        - TargetGroupArn: !Ref TargetGroup
          Type: forward



  WebInstanceSecurityGroup:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupDescription: SG for WebInstance
      GroupName: WebSG
      VpcId: !Ref VPC
      SecurityGroupIngress:
      - IpProtocol: tcp
        FromPort: 80
        ToPort: 80
        CidrIp: 0.0.0.0/0
        SourceSecurityGroupId: !Ref  ALBalancerSG
      - IpProtocol: tcp
        FromPort: 22
        ToPort: 22
        CidrIp: !Ref SSHLocation



  WebInstance:
    Type: AWS::EC2::Instance
    Properties:
      BlockDeviceMappings:
      - DeviceName: /dev/sda1
        Ebs:
          VolumeSize: 8
          VolumeType: gp2
      DisableApiTermination: false
      InstanceType: !Ref InstanceTypeParameter
      KeyName: !Ref KeyNameA
      ImageId: ami-02b7cfebf005c915d
      SecurityGroupIds:
      - !Ref WebInstanceSecurityGroup
      SubnetId: !Ref PrivateSubnetA




  PrivateSubnetB:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref VPC
      CidrBlock: 10.1.90.0/24
      AvailabilityZone: !Select [ 0, !GetAZs ]
      Tags:
      - Key: Name
        Value: !Sub ${AWS::StackName}-Private-B


  PrivateSubnetC:
    Type: AWS::EC2::Subnet
    Properties:
      VpcId: !Ref VPC
      CidrBlock: 10.1.110.0/24
      AvailabilityZone: !Select [ 1, !GetAZs ]
      Tags:
      - Key: Name
        Value: !Sub ${AWS::StackName}-Private-C



  PrivateRouteTableRDS:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
      - Key: Name
        Value: Private2



  PrivateRouteRDS:
    Type: AWS::EC2::Route
    Properties:
      RouteTableId: !Ref PrivateRouteTableRDS
      DestinationCidrBlock: 0.0.0.0/0
      InstanceId: !Ref WebInstance



  PrivateSubnetBRouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
     SubnetId: !Ref PrivateSubnetB
     RouteTableId: !Ref PrivateRouteTableRDS



  PrivateSubnetCRouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
     SubnetId: !Ref PrivateSubnetC
     RouteTableId: !Ref PrivateRouteTableRDS



  DBSubnetGroup:
    Type: AWS::RDS::DBSubnetGroup
    Properties:
      DBSubnetGroupDescription: DBSubnetGroup for RDS instances
      SubnetIds:
        - Ref: PrivateSubnetB
        - Ref: PrivateSubnetC



  RDSSGIngress:
    Type: AWS::EC2::SecurityGroupIngress
    Properties:
      GroupId: !GetAtt VPC.DefaultSecurityGroup
      IpProtocol: tcp
      FromPort: 5432
      ToPort: 5432
      CidrIp: 0.0.0.0/0



  DBMasterInstance:
    Type: AWS::RDS::DBInstance
    Properties:
      DBInstanceIdentifier: DemoRDS
      DBName: MyRDS
      AllocatedStorage: 10
      DBInstanceClass: db.t2.micro
      StorageType: gp2
      Engine: postgres
      EngineVersion: 11.4
      MasterUsername: DBUser
      MasterUserPassword: DBPassword
      PubliclyAccessible: False
      VPCSecurityGroups:
        - !GetAtt VPC.DefaultSecurityGroup
      DBSubnetGroupName: !Ref DBSubnetGroup



  DBReplicaInstance:
    Type: AWS::RDS::DBInstance
    Properties:
      DBInstanceIdentifier: DemoReplica
      AllocatedStorage: 10
      DBInstanceClass: db.t2.micro
      SourceDBInstanceIdentifier: !Ref DBMasterInstance
      SourceRegion: ap-northeast-3
MLu
  • 24,849
  • 5
  • 59
  • 86
Kitakado
  • 53
  • 1
  • 4

1 Answers1

0

Couple of problems with your CFN template:

  1. The RDS subnets have default route pointing to the Web instance - I doubt you want to do that. Generally you'll only have 2 or 3 Public subnets using IGW for 0.0.0.0/0 and 2 or 3 Private subnets using NAT GW for 0.0.0.0/0. All your instances and databases should be in the Private subnets and the ALB should be in the Public subnets.

  2. When you create the Web instance like the template says it doesn't have a web server running, hence nothing listens on port 80 and in turn the ALB sees the instance as unhealthy. That's why you're getting "502 Bad gateway" or something like that.

    Ideally you'd install and start the web server through the instance UserData on boot. That way the ALB will see that it's running and will start sending traffic to it.

  3. As it is you've got no way to SSH to the Web instance as it sits in the private subnet. Typically you'd also create a Jump host in the public subnet that you can SSH to and/or VPN to, or configure Systems Manager on the Web instance so you can open a SSM Session to it without using a jump host. You'll need an EC2 role for it.

That should give you some pointers for start. Hope it helps :)

MLu
  • 24,849
  • 5
  • 59
  • 86
  • I added a Jump host and connect to my instance successfully. But I'm still not very understand if I avoid to connect RDS subnets to the Web instance, how can I direct the traffic from Web instance to the RDS subnets? – Kitakado Oct 09 '19 at 04:45
