Does one mpo/mtp-12 fo can transmit 100G datas ?

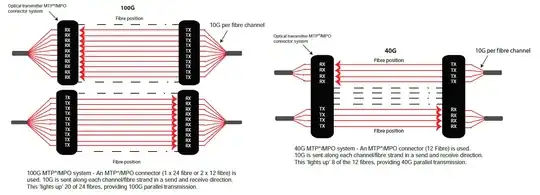

I have doubt because of this picture : enter image description here

It seems I need 24fo to get 100G. But I have a Cisco QSFP-100G-SR4-S module which says it can support 100G on a mpo-12.

What i'm missing ? Does someone can enlighten me ?

DSX
  • 385
  • 1
  • 4
  • 18

1 Answers1

0

The diagram you provided is out of date. One of the earlier standards, 100GBase-SR10 did use 24 fibers, but it's been replaced by a newer standard 100GBase-SR4 (802.3bm-2015), which uses 12 fibers (MPO-12).

Ron Trunk
  • 2,159
  • 1
  • 11
