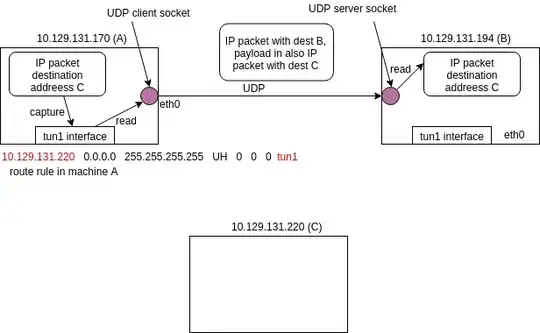

I have the following setup. An application on machine A creates an IP packet which is captured by the tun1 interface. I have added the route using the command :

sudo route add -host 10.129.131.220 tun1.

enter image description here

Then I read the packets from the tun1 file-descriptor and write to another UDP client socket with destination address B. I can read packets on the B machine. I verified with tshark on machine B where tshark shows following types of outputs.

1 0.000000000 10.129.131.170 → 10.129.131.220 UDP 51 34611 → 8080 Len=23 and more similar rows.

Now I want to route these IP packets to machine C, (actual destination machine). I have created a tun1 interface in machine B and writing the received packets on machine B. Writes are successful and watch -n 1 "ifconfig tun1" shows the RX packets values getting incremented.

I have enables the packet forwarding in machine B by setting

echo 1 > /proc/sys/net/ipv4/ip_forward

My question is, how to properly add forwarding rule in machine B so that IP packets are routed to machine C without the addition of more IP header. I think writing to a tun1 device (on B) again might do the work. But how to route from tun1 to eth0?

Update :

One way forwarding is working with the rp_filter turned off. enter image description here

Now how to route the downlink packets from machine C to A via B?

Thanks!

Debashish
  • 121
  • 5
  • it worked with the following filter on the `B` machine `sysctl -w net.ipv4.conf.tun1.rp_filter=0` `sysctl -w net.ipv4.conf.all.rp_filter=0` – Debashish Apr 07 '19 at 09:59
