I have two ESXi dedicated servers from a cloud vendor. Each server has two nic card, one is private and one attached with public gateway.

ESXi 1 - i created a vSwitch0 from public NIC and VMkernal and VMNetwork from that vSwitch - i created a vSwitch1 from private NIC and PrivateVMNetwork from that vSwitch

In one VM i created a ClearOS gateway server using Public VMNetwork. So all the VMs in group1 connected with VMNetwork got internet access.

ESXi 2 - i created a vSwitch1 from private NIC and PrivateVMNetwork from that vSwitch

all the VMs in group2 connected with Private VMNetwork not having internet access.

Note : ESXi 1 and 2 connected each other through NIC2

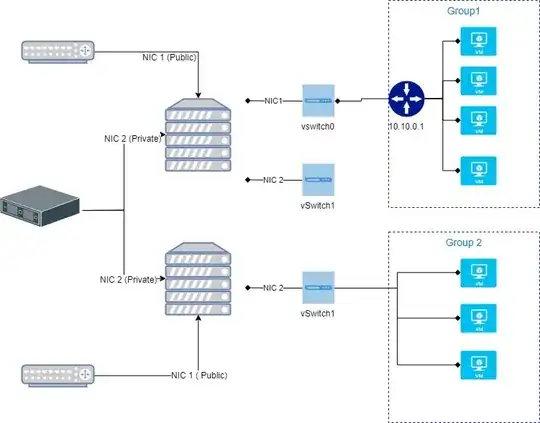

enter image description here

My problem is to make both the Group1 and Group2 VMs in same network,

i tried attaching the PrivateVMNetwork of ESXi 1 to gateway server, VMs in group 1 cannot connect to gateway Tried bridging the VMNetwork and PrivateVMNetwork, it creates a loopback and whole network was disturbed.

What is solution for this kind of setup

asvignesh
  • 117
  • 1
  • 7

1 Answers1

1

Short answer: you can't.

ESXi vSwitches never switch packets back to the physical world once they've been received by a physical NIC. (You can do this in a VM but it's not really what you want.) What you're trying to build is a "super switch" encompassing both private and public NICs and all vSwitches. That switch would need to physically connect both host NICs in order to work - totally eliminating the physical public/private distinction.

Instead, the much better approach is to put two vNICs in each VM and have each of them connect to one of the vSwitches/port groups - one for public I/O, one for private. If you require multiple private port groups you'll need to map them to VLANs and have those supported on the physical, private switch.

Zac67
  • 10,320
  • 2
  • 12
  • 32
