Dell Poweredge R620 PCIe Training error what to do?

Question

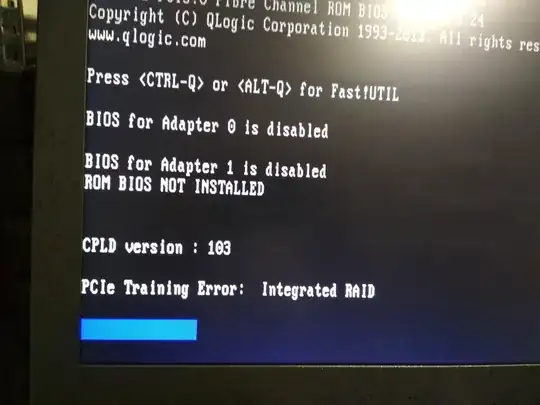

After the startup, the server show the "PCIe Training error :Integrated RAID"

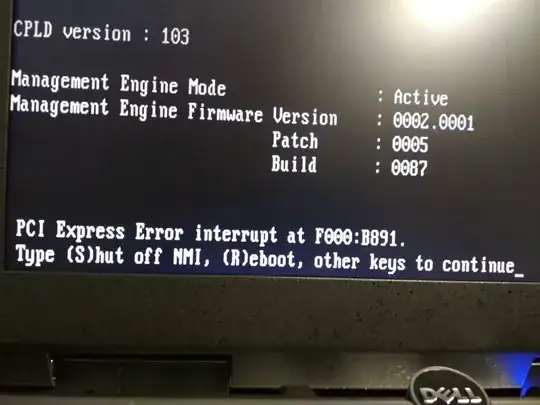

And then "PCIe express error interrupt at F000:B891"

My thought is that the controller raid is broken

Any help?

have you tried referring to any of these ideas: https://serverfault.com/questions/310041/dell-poweredge-pcie-training-error-what-to-do — batistuta09, Jun 18 '18 at 19:57

score 2 · Answer 1 · answered Jun 27 '22 at 09:48

2

This mainly occurs due to a faulty PCIe slot, just remove anything that is connected to the slot no, or change the entire card if possible

answered Jun 27 '22 at 09:48

Danny hecx

21
2

score 1 · Answer 2 · answered Jan 29 '20 at 22:37

1

Remove power cables and press power button for 10 sec and wait for 5 to 10 min, then start the server, it will work most of the times. if not you need to reconnect PCI cards and try. if there is any H/W issue contact hardware vendor.

answered Jan 29 '20 at 22:37

Narsi Siriveni

11
1

score 1 · Answer 3 · answered Apr 02 '23 at 14:53

1

This is an old question, but I had the same issue on a Dell R520.

Reseating the cards did not help -> I replaced the Perc H710 Mini RAID Controller with a new one - error fixed.

answered Apr 02 '23 at 14:53

Christian Huber

111
2
