How does load balancing / VIP works with overlay networks?

Question

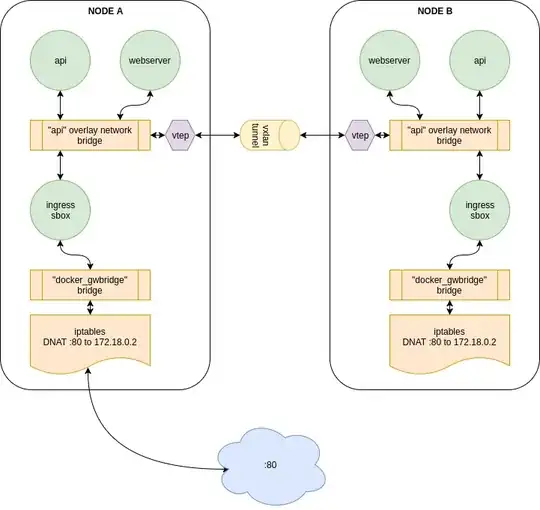

I'm trying to understand how the built-in Docker load balancing / VIP works with overlay networks. To better explain how I understand this, I've put together a diagram. My hope is that someone can confirm or reject my understanding.

Let's say I've got two services running in a Docker Swarm : webserver and api. Both of these two services have been scaled to two instances. These instances runs on NODE A and NODE B.

1. Someone out there in the world makes a request which somehow hits NODE A.
2. iptables on NODE A will DNAT the request to the ingress-sbox on NODE A.
3. The ingress-sbox (let's just regard it as a black box) decides that the request should go to webserver on NODE B.
4. The ingress-sbox sends the request out on the "api" overlay network bridge, and the request gets routed via the vxlan tunnel to the "api" overlay network bridge on NODE B.
5. The webserver container on NODE B receives the request via the "api" overlay network bridge.

Is this a fair understanding of how incoming requests will traverse an overlay network?

...and a followup question; what happens when a request goes from webserver to api via a load balancer (ingress-sbox). Will requests always be load balanced through the ingress-sbox on the same host as the request originates from? If this is the case, I assume this means that a request to a service VIP always gets routed to the ingress-sbox which runs on the very same node as where a request is made from?
