I configured a LAG into a stack composed by 2 x SG550X-48 (Units 1/2) and 2 x SG550X-24 (Units 3/4).

The LAG1 is configured with LACP on GE3/4 and GE4/4 ports.

The problem is that the GE4/4 port is recognised as a standby member:

enter image description here

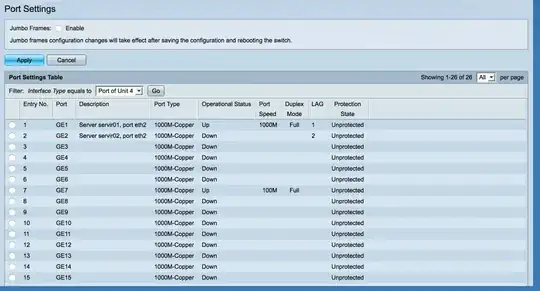

even if the link is UP:

enter image description here

enter image description here

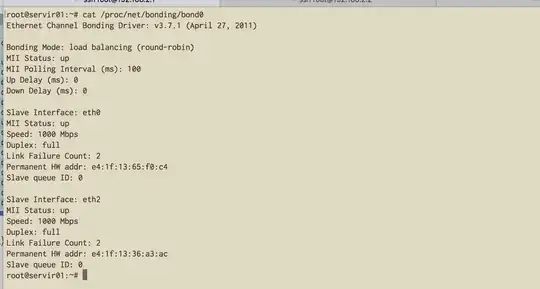

and the operating system (Debian Linux Stretch) recognises it as up and running with both interfaces:

enter image description here

For this reason I have about 50% of packet loss to and from this server and this is a serious problem.

If I try to disable the LACP I don't have the problem:

enter image description here

The strange thing is that I've already used the same configuration in another environment and that works good.

Mat
  • 1,873
  • 7
  • 25
  • 41

1 Answers1

1

You're trying to make an mlag. Even in identical widely used hardware, support for this feature is spotty even today. Furthermore, mlag isn't an agreed upon standard, and varies functionally across different devices and software versions. If you're joining two identical switches via mlag, you'll probably end up fine.

Check your firmware versions between this problem child and your working switch stack. If there are any discrepancies, see if bringing them to the same version helps.

Also look into approaching this differently if this doesn't work out or you plan on using SDN now or in the future (mlag support via SDN is just about non-existent). You might try a combination of ECMP and BGP, which is a well-tested pairing that would potentially address your desires at layer 3 rather than wholly at layer 2.

Spooler
  • 7,046
  • 18
  • 29
  • Thanks! The units 3 and 4 I am using to create the MLAG are the same model and they are using the same firmware. It's the same on every units because the stack needs to have the same firmware version on all units. It's the last version 2.3.5.63. I also tried to post on the Cisco forum but nobody answered me yet. – Mat Dec 29 '17 at 14:23
  • I apologize, I didn't read your question thoroughly enough. I was more specifically stating that mlag between chassis is readily possible, but you're trying to accomplish mlag to a Debian host. On the mlag implementation that is working, is the bonding driver of the same version as your Debian host in this question? – Spooler Dec 29 '17 at 19:53
