I have the following configuration being hosted in Azure virtual servers.

Web Server 1 and 2 located in Data Center A and Web Server 3 located in Data Center B. Each server is hosting the same sites, but duplicated from the other servers.

When traffic comes in from the internet I want it to balance the traffic across all web servers. If Web Server 1 goes down or has issues with one web site I want it to shift all sites to Web Server 2 and or 3. If there is an issue with one site on Web Server 2 I want it to shift the load to Web Server 3 fully for all sites.

BillL1988
  • 1
  • 1
    I guess this can be done with Azure Traffic manager: https://docs.microsoft.com/en-us/azure/traffic-manager/traffic-manager-overview – batistuta09 Feb 15 '17 at 23:14

1 Answers1

1

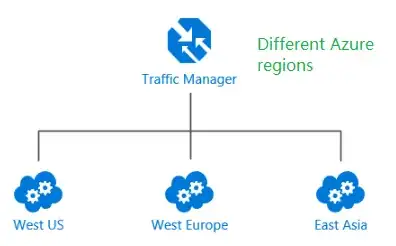

As mentioned by Batistuta, In Azure we can use Traffic Manager to distribute traffic to the available web site.
enter image description here

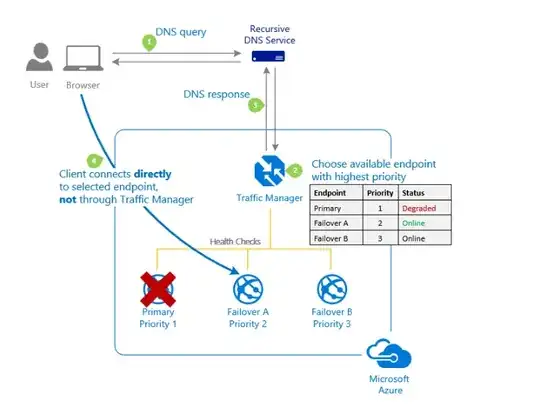

And traffic manager supports Priority traffic-routing method, Often an organization wants to provide reliability for its services by deploying one or more backup services in case their primary service goes down. The 'Priority' traffic-routing method allows Azure customers to easily implement this failover pattern. enter image description here
More information about traffic manager, refer to the link.

Jason Ye
  • 2,399
  • 1
  • 8
  • 10
  • Just checking in to see if the information provided was helpful. Please let me know if you would like further assistance. – Jason Ye Feb 17 '17 at 09:48
