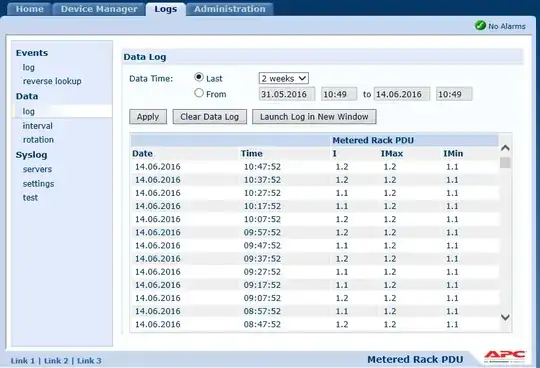

As you can see in the image below, I can't get the consumption. Even if I send the log via FTP there's no info about the consumption.

PDU interface

I already checked on APC PDU website and co and i didn't found any info.

Model Number: AP7821

Application Module
Version: v3.7.0
Date: 01/13/2009


APC OS (AOS)
Version: v3.7.0
Date: 01/13/2009

Update

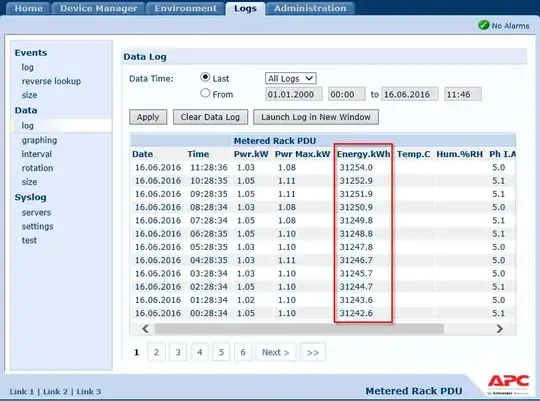

This is an exemple of another PDU i have. In red you can see the Kwh consumption. This is what i need.

enter image description here

e1che
  • 119
  • 8
  • Its the PDU, but the UPS say what ? – yagmoth555 Jun 14 '16 at 10:40
  • @yagmoth555 the UPS gives the total consumption. But i don't want to calculate every month (total - consumption = this PDU). I swear if that's a problem with the OS version. – e1che Jun 14 '16 at 14:01
  • what consumption are you expecting to get? kWh? I'm a bit confused exactly what your trying to do here if you could clarify. – user3788685 Jun 15 '16 at 16:36
  • @user3788685 i've updated the OP – e1che Jun 16 '16 at 09:50
  • Ok thanks - I notice that 'other' PDU has an 'environmental' tab, but yours does not. Are you missing some functions, modules or this this a different model pdu or firmware? – user3788685 Jun 16 '16 at 11:01

1 Answers1

1

After a short discussion with APC company, the model AP7821 doesn't show the consumption in KwH but in amper even in the last firmware update.
