I have a external ip address and have configure the NAT on the router. I am just wanting to know how you setup the External Forward lookup zone and what I need to do with regards to fqdn, do I need just add the external ip in there?

Alex
  • 9
  • 1
  • 2

1 Answers1

3

You'll need to consider two places for your external forward lookup zone. Please note, some of this is based on that guess that you do not already have a conditional forwarder set up for your external domain name.

Your external IP address space is probably managed at your ISP, unless you've paid for a 3rd party DNS provider. Find out which it is, because you'll need to create an A record for your new external IP address. For example, if your new web site is at www.example.com, you would need an A record with the name "www" in the "example.com" forward lookup zone at your ISP. The value in the A record "www" would specify your new external IP address.

Within your own network, you'd probably want users who browse to this name to resolve "www.example.com" to your internal (NATed) IP address. This prevents their traffic from going out your firewall and then back in. (There could be some cases where this is desired.)

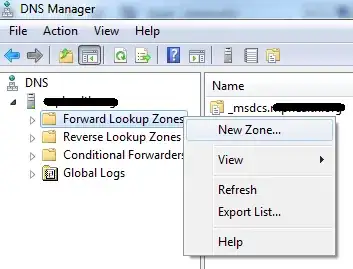

To achieve this, you'll open your DNS Management Console on Windows Server, expand a DNS server, right-click on the "Forward Lookup Zones" node, and select "New Zone".

enter image description here

You'll then click next until the Zone Type screen and select Primary zone.

enter image description here

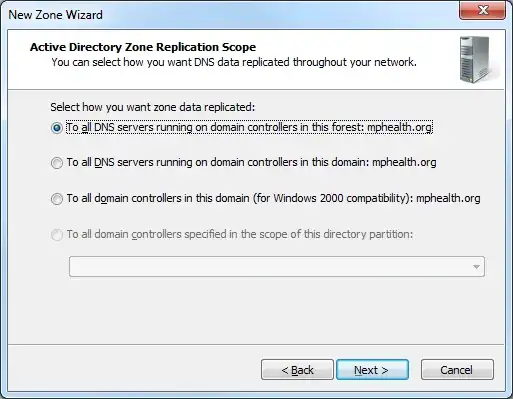

Then you'll most likely want to select the forest for your replication scope. However, this could vary based on your environment.

enter image description here

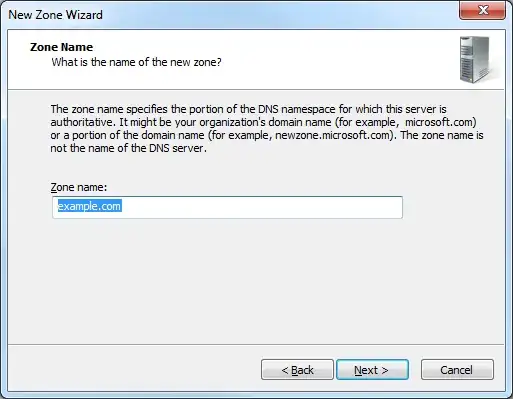

Now you can type in the name for your forward lookup zone, which should match the name of your domain (not the .local one).

enter image description here

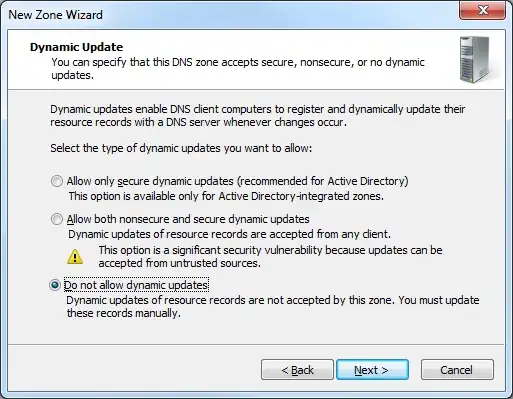

Select "do not allow dynamic updates" because you are manually managing this copy of the zone.

enter image description here

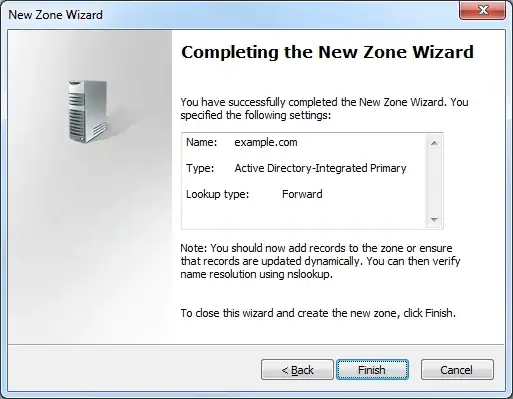

And then you can click finish on the summary screen.

enter image description here

At this point, you'll have an instance of your external forward lookup zone created in your internal .local domain. Given the example above, you can now create an A entry in this zone for "www" pointing to the internal IP address. (The same IP address that your external IP is NATed to.) Hope this answers that question that you are trying to ask! :)

SamErde
  • 3,409
  • 3
  • 24
  • 44
  • Thanks for this, once this has been configured is there anythong else I need to setup as last time i went through these steps my dns server ended up being a public dns and couldnt access anything locally? – Alex May 27 '16 at 14:33
  • Any ideas on this? – Alex Jun 01 '16 at 08:53
  • Sorry, but I feel like this is trailing into additional questions. It sounds like you might want to do some further reading on TechNet or in a Windows Server book. Have I answered your initial qyestion? – SamErde Jun 13 '16 at 18:05
