i know the command is ip route [remote address] [next hop address] but how do i implement it?

Currently these are the only ones that are connected:

CALOOCAN - MAKATI
MAKATI - NAVOTAS
SWITCH0-PC0-PC1
SWITCH1-PC2-PC3
SWITCH2-PC4-PC5

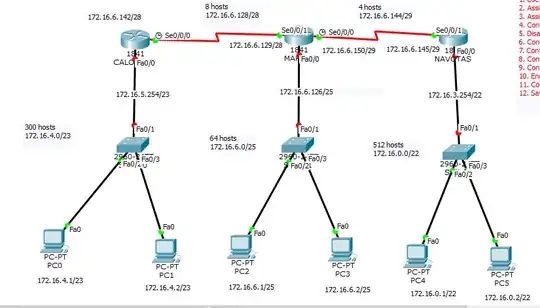

Here's the visualization:

Here

Marki
  • 2,854
  • 3
  • 28
  • 45
Meryel
  • 1
  • 1
  • 2
  • What do you want to route where? – Marki Apr 09 '16 at 12:48
  • @Marki from a router to know all of the networks so it can connect to all. For example i want my CALOOCAN router to know the network with 64 hosts. Is `ip route 172.16.6.0 255.255.255.128 172.16.6.129` correct? Because i tried that and i tried to ping it and it doesn't work. – Meryel Apr 09 '16 at 12:53
  • Technically, CALOOCAN and NAVOTAS only need a default route pointing to MAKATI. – joeqwerty Apr 09 '16 at 14:27

1 Answers1

1

You need to create different routing tables on each router because you are always routing to the nearest transit network endpoint. The next router then takes it from there. So it should be something like this:

  • NAVOTAS

    ip route 172.16.4.0 255.255.254.0 172.16.6.150
ip route 172.16.6.0 255.255.255.128 172.16.6.150

  • MAKATI

    ip route 172.16.0.0 255.255.252.0 172.16.6.145
ip route 172.16.4.0 255.255.254.0 172.16.6.142

  • CALOOCAN

    ip route 172.16.6.0 255.255.255.128 172.16.6.129
ip route 172.16.0.0 255.255.252.0 172.16.6.129

Probably you should get some professional assistance.
