I am trying to translate the SSH command:

ssh -N -L 1521:server1.com:1521 username@server2.com

into PuTTY.

  • -N: Do not execute a remote command. This is useful for just forwarding ports (protocol version 2 only).
  • -L [bind_address:]port:host:hostport: Specifies that the given port on the local (client) host is to be forwarded to the given host and port on the remote side.

The command first SSH to user_name@server2.com, which in turn connect to server1 so that it fowarrds port 1521 (server behind NAT).

In a more abstract way, the command could be written as:

ssh -L MY_LOCAL_PORT:FOREIGN_ADDRESS:FOREIGN_PORT MYUSER@SSH_SERVER

I tried to write the following PuTTY command:

putty -N -D 1521 -P 1521 server2.com username@server1.com

with:

  • -N: suppress starting a shell or command.
  • -D: set up SOCKS-based dynamic port forwarding on a local port.
  • -P: specify a port number

according to the PuTTY manual.

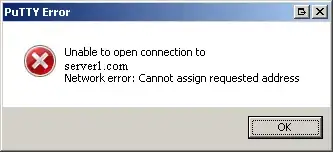

However I get:

enter image description here

What could be the issue?

I disabled the firewall, and checked that putty.exe allowed to communicate with Internet.

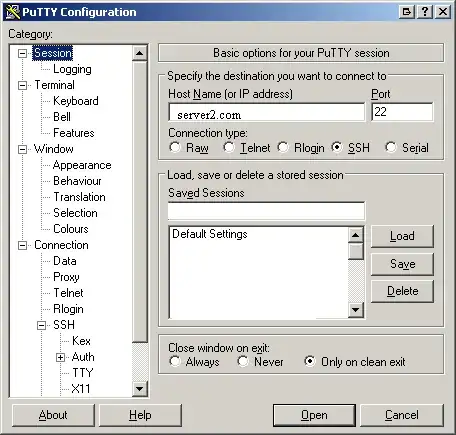

Using the PuTTY GUI, the tunnel works with the following configuration:

enter image description here

enter image description here

enter image description here

enter image description here

Community
  • 1
Franck Dernoncourt
  • 1,022
  • 2
  • 14
  • 32
  • 2
    If all you need is just forward port - you can use plink 'plink -ssh -N -L 1521:server1.com:1521 username@server2.com' – ALex_hha Mar 23 '16 at 11:52
  • ... or you could install Cygwin and use OpenSSH like you normally would. ;) – n.st Apr 02 '16 at 11:32
  • @n.st Thanks, sure, actually there is an [OpenSSH for Windows](http://sshwindows.sourceforge.net/), and their ssh.exe works fine :) – Franck Dernoncourt Apr 02 '16 at 13:25

3 Answers3

6

I am trying to translate the SSH command ssh -N -L 1521:server1.com:1521 username@server2.com into PuTTY.

If all you need is just forwarding port - you can use plink instead

> plink.exe -ssh -N -L 1521:server1.com:1521 username@server2.com

I'd curious how to fix the putty.exe command as well

the same things

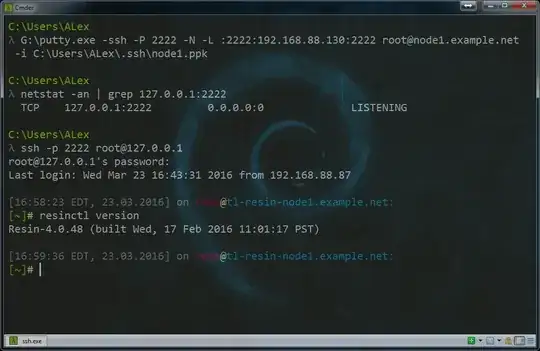

> G:\putty.exe -ssh -P 2222 -N -L :2222:192.168.88.130:2222 root@node1.example.net -i C:\Users\ALex\.ssh\node1.ppk

enter image description here

ALex_hha
  • 7,193
  • 1
  • 25
  • 40
1

Putty requires the protocol to be mentioned as well. Since you are using ssh, add '-ssh' option as well. You can refer the following link :

putty command line options

So a simple command would look like:

putty.exe -ssh -P 22 admin@server
ninad
  • 11
  • 3
  • Thanks, but I don't have shell access on server2, and I just want to tunnel through it. I tried `putty -ssh -N -D 1521 -P 1521 server2.com username@server1.com`, it didn't work either. ` – Franck Dernoncourt Mar 23 '16 at 17:42
0

It might have to do with your ability/inability to assign a port on the local computer. Try running puTTy with administrative privileges on your local machine.

Catherine MacInnes
  • 1,958
  • 11
  • 15
